11 12 670 Cleaning intake port with walnut shell granulate (N14)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

IMPORTANT: The intake valves of the corresponding cylinder must be closed when cleaning the intake ports.

Necessary preliminary tasks:

IMPORTANT: Determine the top dead center via the spark plug bore hole using the special tool 2 302 630.

Crank engine at central bolt.

Fig 1: Identifying OT Finder And Piston

Courtesy of BMW OF NORTH AMERICA, INC.

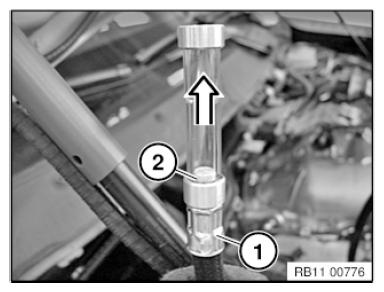

Prepare peener (81 29 2 208 034) with walnut shell granulate.

Fig 2: Cleaning Intake Port With Walnut Shell Granulate (1 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

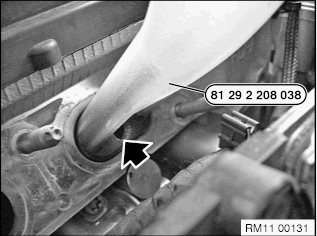

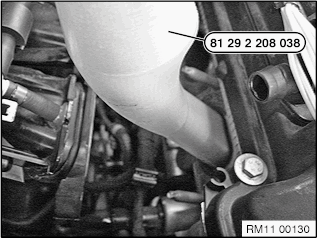

Position extraction adapter (81 29 208 038) over intake port of first cylinder.

Fig 3: Cleaning Intake Port With Walnut Shell Granulate (2 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

Hole for probe (see arrow in illustration).

Fig 4: Cleaning Intake Port With Walnut Shell Granulate (3 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

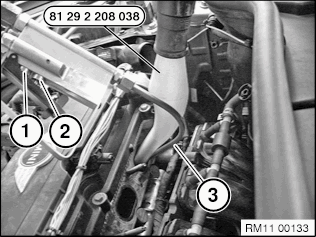

Insert suitable probe (3) in extraction adapter (81 29 2 208 038).

Connect compressed air connection.

Valve (1) - compressed air.

Switch on vacuum cleaner.

Valve (2) - walnut shell granulate.

Procedure:

Cleaning time approx. 30 seconds.

The cleaning result is improved by moving the probe (3) in a circular pattern.

Operate valve (1) for an additional 10 to 15 seconds to assist cleaning.

Fig 5: Cleaning Intake Port With Walnut Shell Granulate (4 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check that no walnut shell granulate remains in the intake ports.

Assemble engine.
