51 41 019 Removing and installing/replacing door handle on door trim panel, front left or right

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Version from 03/2012 with alarm system:

Remove module for passenger compartment protection.

If necessary, disconnect plug connection (1) and feed out cable.

Release screws (3).

Feed out door handle (4) and feed out associated cable.

Fig 1: Identifying Plug Connection, Screws And Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

If replacing version with light package:

Remove LED for door trim panel light.

Release latch mechanisms (1) and remove fibre-optic conductor (2).

Install fibre-optic conductor (2) and LED in new door handle.

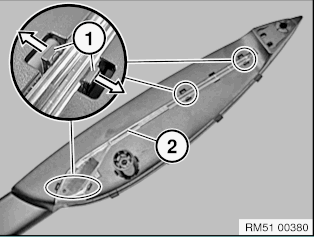

Fig 2: Releasing Latch Mechanism And Removing Fibre-Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.
