51 41 017 Removing and installing/replacing cover on door handle, front left or right

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

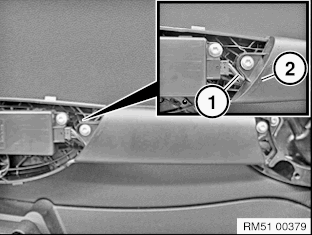

Release screws (1) and remove cover (2).

Fig 1: Identifying Screws And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 03/2012 with alarm system:

Installation note: Make sure cables (1) is positioned correctly on cover (2).

The cables (1) must not be pinched by cover (2).

Fig 2: Positioning Cables On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
