51 47 101 Removing and installing/replacing luggage compartment floor trim panel (Clubvan)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Remove cover for lashing eyes (2).

Loosen screws (1) and remove lashing eyes (2).

Tightening torque 51 71 9AZ.

Remove lid (3).

Remove luggage compartment floor trim panel (4) though right-hand doorway.

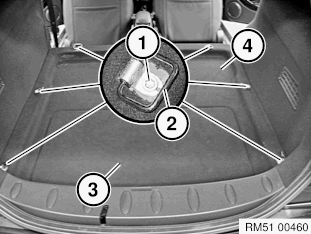

Fig 1: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
