51 47... Removing and installing/replacing luggage compartment grille (Clubvan)
WARNING: This page is about a different variant/trim than selected.

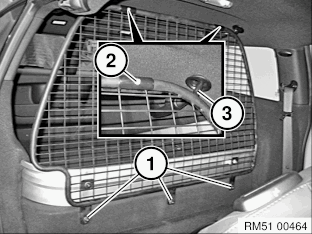

Remove protective caps (1) and loosen screws underneath.
Tightening torque 51 71 13AZ.
Slacken screws (2)
Tightening torque 51 71 15AZ.
NOTE:
Both fixing rods (3) must be pushed slightly inwards for the grille to be detached.
Detach grille and remove through right-hand doorway.
