41 11 043 Replacing front section of left engine support

WARNING: This page is about a different variant/trim than selected.

Refer to relevant service information in BODY, GENERAL .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs.

Strip down vehicle. See STRIPPING OPERATIONS .

Place vehicle on straightening bench.

The following new body parts are required:

Engine support, front (1)
Mounting, impact absorber (2)

Fig 1: Identifying Engine Support

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of engine support front section:

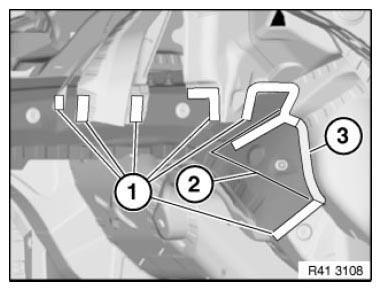

Open weld joints in areas (1).

Roughly cut engine carrier along line (2) and remove metal plate.

Installation note:

New part is bonded in area (3).

Fig 2: Cut Engine Carrier Along Line

Courtesy of BMW OF NORTH AMERICA, INC.

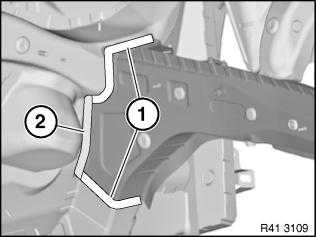

Open weld joints in area (1).

Installation note:

New part is bonded in area (1). Apply adhesive in area (1) on both sides.

Fig 3: Opening Welded Connections (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1) and (2).

Installation note:

New part is bonded in area (2).

Fig 4: Opening Welded Connections (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Remove engine support.

Fig 5: Opening Welded Connections (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation:

IMPORTANT:

Structure bonding: see GENERAL NOTES REGARDING BONDING , BONDING STEEL ON STEEL , and NOTES ON ADHESIVE K1 .

Sand off primer from new part and body in area of bonding surfaces. Apply adhesive to bare metal.

Installation of engine support front section:

Clean all bonding surfaces on vehicle and on new part with cleaning agent R1.

Apply adhesive to bonding surfaces.

Adjust new parts to fit with alignment bracket or universal mounting.

When joining engine support, make sure there is sufficient adhesive on bonding surfaces.

Bond new part in area (3).

Weld new part in the areas (1).

Fig 6: Identifying Welded Connections, Engine Support And New Component Area

Courtesy of BMW OF NORTH AMERICA, INC.

Bond new part in area (2).

Weld new part in the areas (1).

Fig 7: Identifying Weld Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Additionally weld new impact absorber fixture (1) in the same way as in series standard.

Fig 8: Identifying Impact Absorber Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new part in the areas (1).

IMPORTANT: Threaded bushes on new part have not cut thread. There are 2 options to choose from in mounting the new part.

Mount with a pin matching diameter of threaded bush.
Cutting of thread with a new self-tapping screw matching threaded bush.

Fig 9: Identifying Weld Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.
