41 31 001 Replacing roof outer skin (version with slide/tilt sunroof)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

41 3 010

Refer to relevant service information in BODY, GENERAL .

Strip down vehicle. See STRIPPING OPERATIONS .

NOTE: Observe new procedure for bonding and riveting (REPAIR STAGE 2 ).

After completing work:

Remove excess adhesive in the entire adhesive area.

IMPORTANT: Do not use any cleaning agents containing solvents.

Seal adhesive area with sealant D1.

Carry out a leak test on entire vehicle.

The following new body parts are required:

Roof outer skin, panorama sunroof (see "1" in illustration)

Fig 1: Identifying Roof Outer Skin, Panorama Sunroof
Courtesy of BMW OF NORTH AMERICA, INC.

Removing roof outer skin:

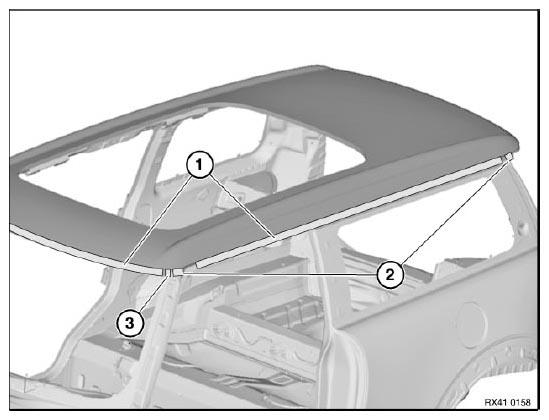

Open welding spots in areas (1).

Open weld seams in areas (2).

Open brazed seam in area (3) by grinding.

Fig 2: Identifying Welding Spot Areas (1-3)

Courtesy of BMW OF NORTH AMERICA, INC.

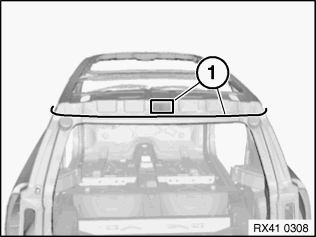

Open welding spots in area (1).

Fig 3: Identifying Open Welding Spot Area (1)

Courtesy of BMW OF NORTH AMERICA, INC.

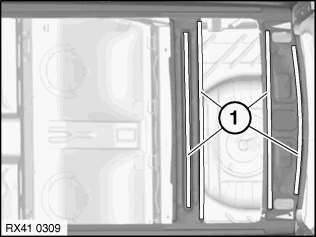

Open glued joints in area (1).

Take off roof outer skin.

Fig 4: Identifying Glued Joint Area (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Follow the procedure for vehicles with ROOF RAILS !

Cut all four roof rack reinforcements (1) along lines (2).

IMPORTANT: Do not roof outer skin (3).

Fig 5: Identifying Roof Rack Reinforcements (1) And Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Operation is described on the left side. Right side identical.

Adjust roof outer skin to fit and secure.

Set two Ø 4.2 mm bore holes for blind rivets in areas (1).

Remove new part again and deburr bore holes.

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.

Fig 6: Identifying Bore Hole Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Installing roof outer skin:

Clean all bonding surfaces with cleaning agent R1.

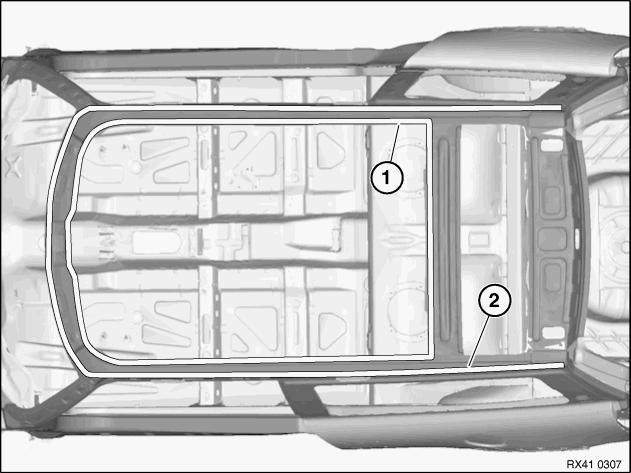

Apply adhesive in areas (1) and (2).

Fig 7: Identifying Adhesive Application Areas

Courtesy of BMW OF NORTH AMERICA, INC.

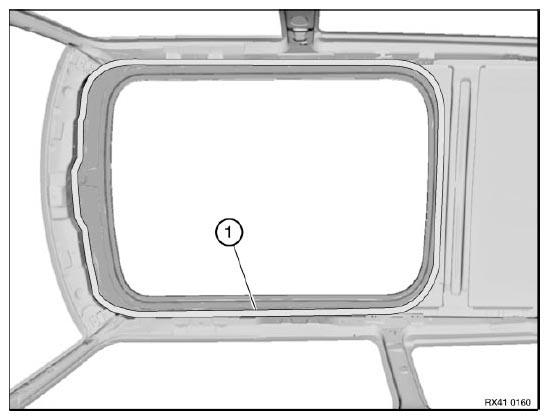

Apply adhesive in areas (1).

Fig 8: Identifying Adhesive Application Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Apply D1 sealant in areas (1) in the same way as in series standard.

Fig 9: Identifying Adhesive Application Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Operation is described on the left side.

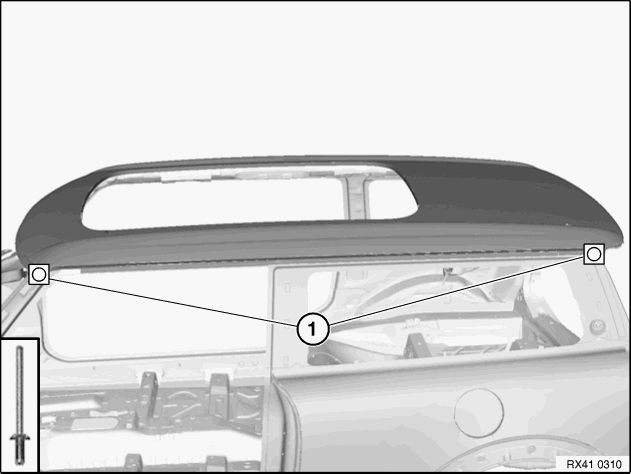

Right side identical. Mount roof outer skin and rivet with blind rivets (1).

Fig 10: Locating Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) rivet roof outer skin with 7 punch rivets.

Fig 11: Identifying Area For Punch Rivets (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) rivet roof outer skin with 11 punch rivets.

Fig 12: Locating Punch Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) rivet roof outer skin with 8 N4 punch rivets.

Fig 13: Identifying Open Welding Spot Areas And Brazed Seam Area

Courtesy of BMW OF NORTH AMERICA, INC.

Remove excess adhesive.

IMPORTANT: Do not use any cleaning agents containing solvents.

Seal adhesive areas and blind rivets with sealant.

IMPORTANT: In order to achieve the required flow behavior of the foam in the cavity, a cartridge temperature of approx. 65 °C to 70 °C is required.

WARNING: Risk of scalding!

Lay 2 cartridges in a heat-resistant container and weight down.

Filling container with approx. 3 liters boiling water.

Insert cartridges for approx. 30 minutes.

Insert heated adhesive cartridge shortly before processing in cartridge gun 41 3 010, remove cap and allow both components to emerge. Wipe adhesive components uniformly and attach new mixing tube.

Tip of fill level indicator (1) indicates the current position of the plunger.

For optimum mixing of components, allow structural foam to emerge up to marking (2) and discard.

Fig 14: Identifying Fill Level Indicator Position Of Plunger

Courtesy of BMW OF NORTH AMERICA, INC.

Fill all 4 areas of roof rack reinforcements with foam.

(1) Threaded inserts

Starting at front left, fill square holes (2) with 75 ml of structural foam each.

In so doing, hold mixing tube at an angle of approx. 30°.

Immediately after applying foam, press expansion nuts into square holes.

Repeat procedure on right side of car with second cartridge.

Operational strength of car is achieved after 24 hours.

Fig 15: Filling Areas Of Roof Rack Reinforcements With Foam

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive install two EMC SCREWS in area (1).

Fig 16: Identifying Open Welding Spot Areas And Brazed Seam Area

Courtesy of BMW OF NORTH AMERICA, INC.
