36 11 105 Removing and installing RDC (Tire Pressure Control) control unit

WARNING: This page is about a different variant/trim than selected.
IMPORTANT: Read and comply with notes on protection against ELECTRO STATIC DISCHARGE .

Necessary preliminary tasks:  Remove rear inside left wheel arch panel. See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL (CLUBVAN) .

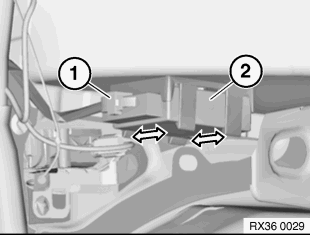

Disconnect plug connection (1). Press tab in direction of arrow and remove control unit (2).

Fig 1: Removing Control Unit
G00532671Courtesy of BMW OF NORTH AMERICA, INC.

Replacement: - Carry out programming/encoding via ISTA/P (BMW tool).
