51 47 151 Removing and installing/replacing left or right luggage compartment wheel arch panel (Clubvan)

Necessary preliminary tasks:

• Remove cover from tail panel .
• Remove trim panel for door post (B-pillar) .
• Remove trim panel for roof pillar at rear (C-pillar) .

Release screw (1). Installation note:  Make sure edge protection (2) is correctly seated.

Fig 1: Identifying Screw And Edge Protection

Courtesy of BMW OF NORTH AMERICA, INC.

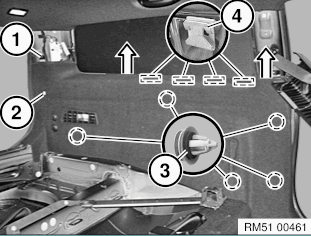

Release clip (1). Disengage emergency release mechanism (2). Detach trim panel from clips (3). Detach trim panel upwards from clamp (4).

Fig 2: Detaching Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:  First attach trim panel with clamps (4).
