67 13 001 Replacing drive unit for electrically operated left or right door mirror

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove mirror glass for mirror, refer to 51 16 026 REPLACING MIRROR GLASS

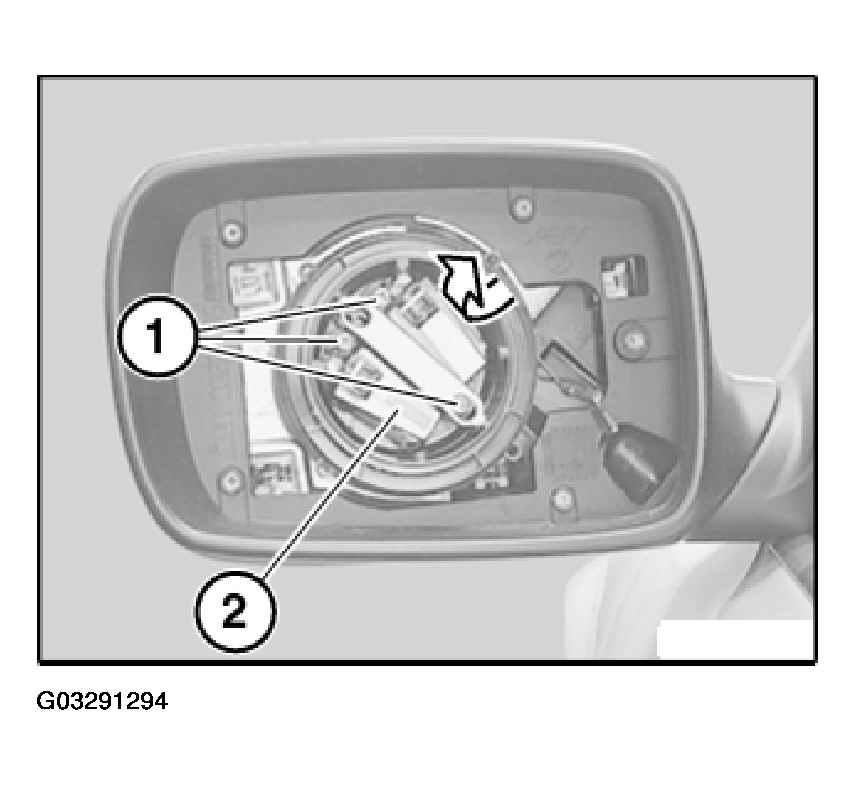

Release screws (1).

Fig 1: Folding Out Drive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Fold out drive unit for electrically operated door mirror (2) in direction of arrow.

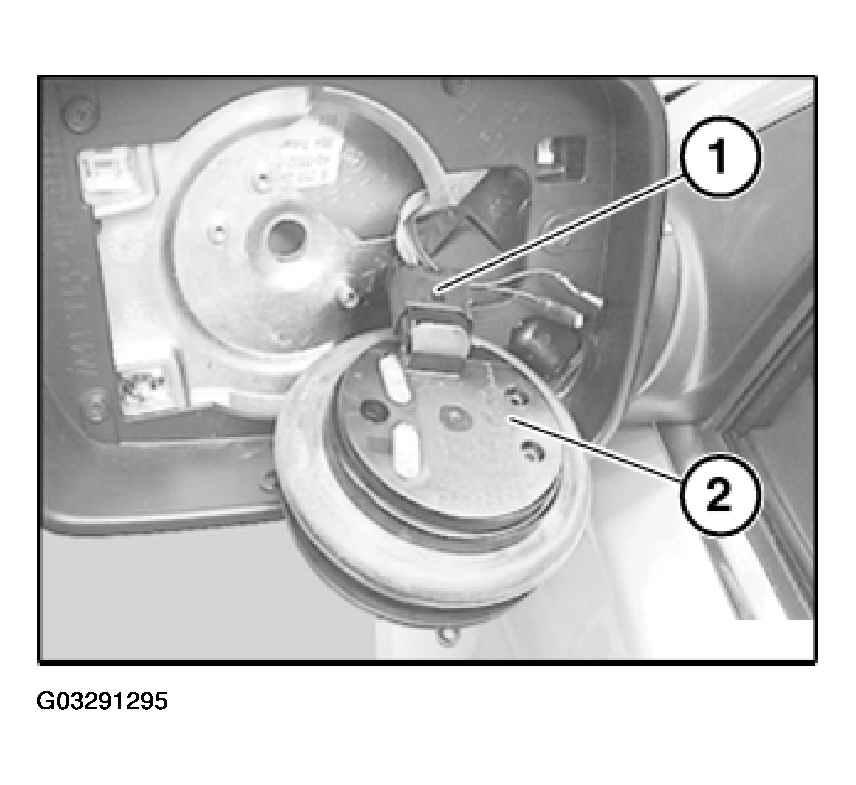

Disconnect plug connection (1) and remove drive unit for electrically operated door mirror (2).

Fig 2: Removing Drive Unit For Electrically Operated Door Mirror

Courtesy of BMW OF NORTH AMERICA, INC.
