51 16 026 Replacing mirror glass

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

WARNING: Move mirror glass with hand carefully and slowly. If mirror glass is damaged:
Wear protective goggles and cut-proof gloves.
Risk of injury by flaking-off glass splinters.

IMPORTANT: Bring door mirror to room temperature to prevent catches from breaking off.
Remove glue between mirror glass and edge of housing (risk of damage).
Secure mirror glass against falling out.

Press mirror glass (1) at bottom by hand to full extent.

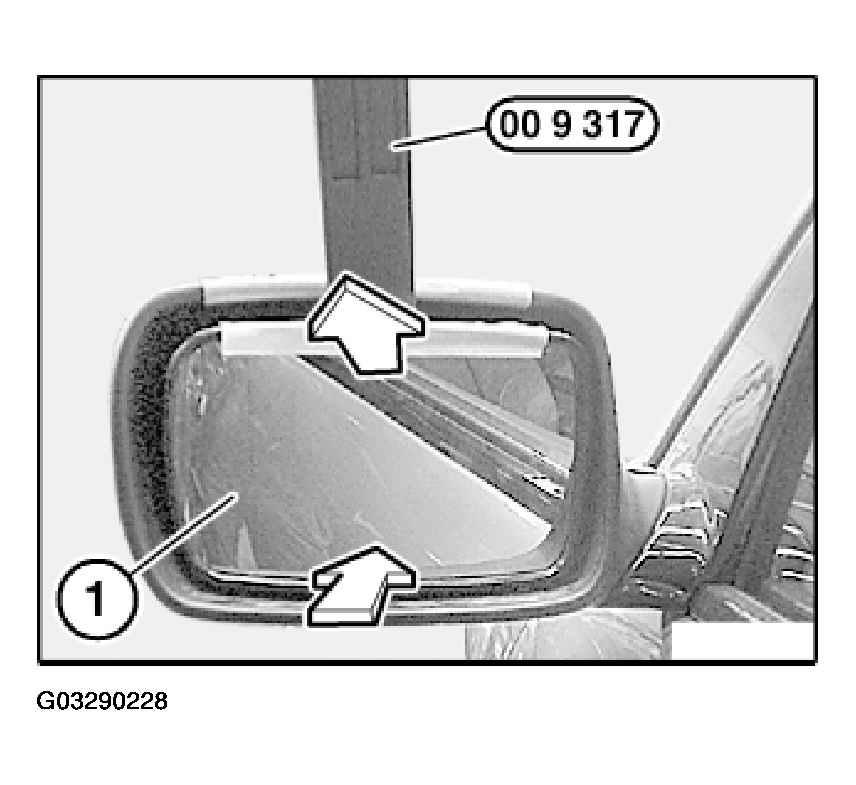

Fig 1: Removing Mirror Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Starting at top, unclip mirror glass (1) all round with special tool 00 9 317.

Unlock and disconnect associated plug connections, remove mirror glass (1).

Installation:

Retaining lugs (1) must not be damaged.

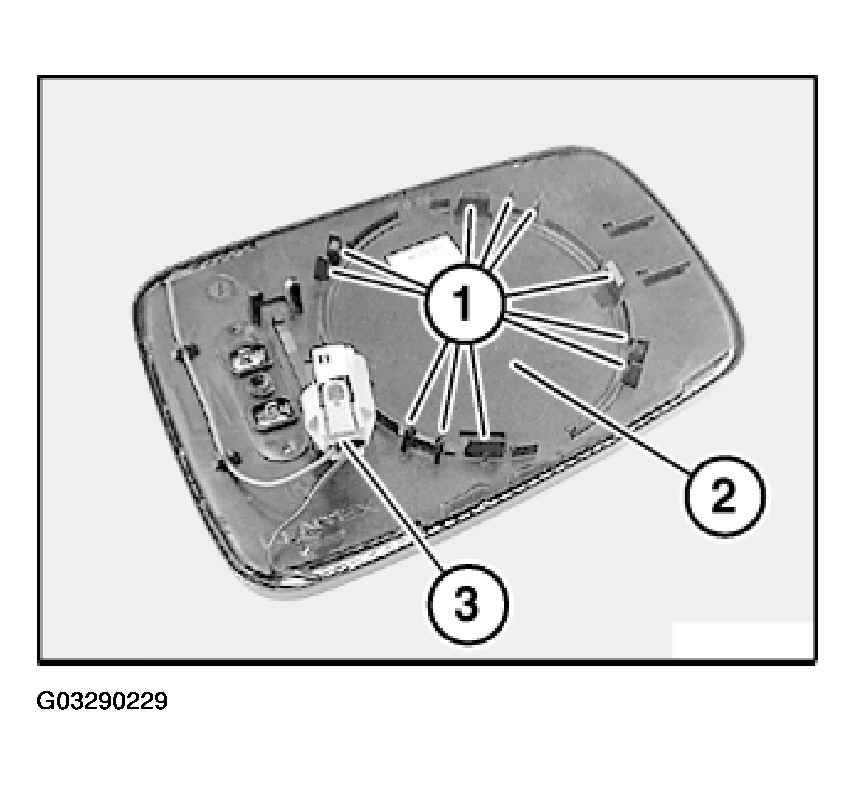

Fig 2: Installing Mirror Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Depending on equipment specification, plugs (3) with cables must not be loose or damaged.

Fit mirror glass (2) with retaining lugs (1) flush on mirror adjusting drive and clip into place.

Ensure correct locking.

Make sure mirror adjusting drive functions correctly.
