67 65 019 Removing and installing/replacing drive for left or right roller sun blind

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install rear door trim. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

NOTE: Removal is shown on drive for roller sun blind (door window).

Roller sun blind (fixed door window) is removed in same way.

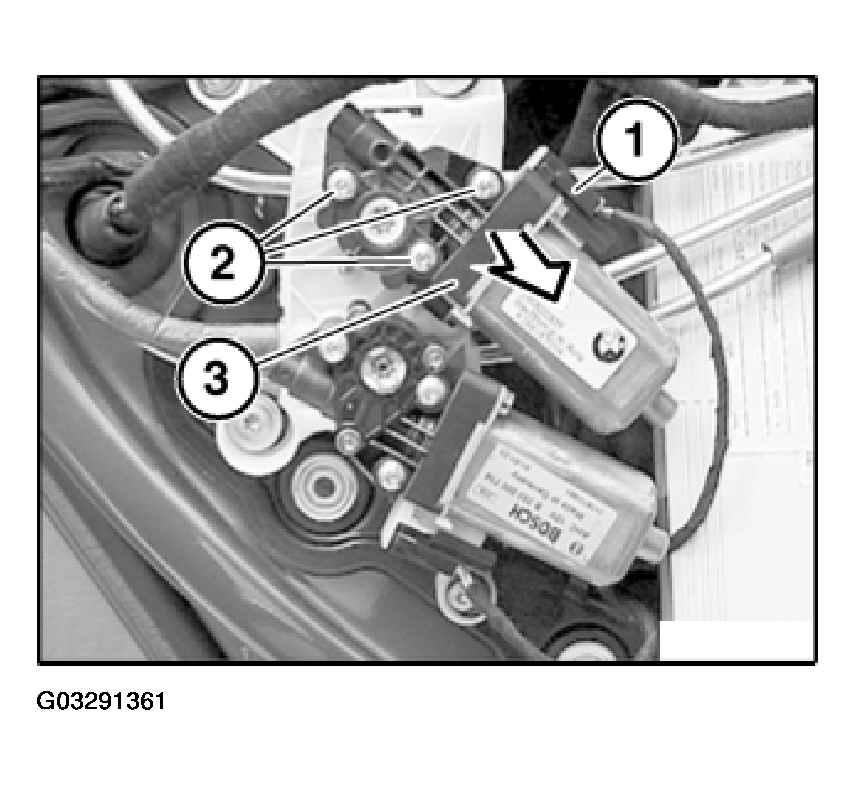

Unlock plug connection (1) and disconnect.

Fig 1: Removing Drive For Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Installation:

Observe tightening torque, 67 65 1AZ. Refer to ELECTRICAL DRIVES - TIGHTENING TORQUES - 745I - E65 .

Remove drive for roller sun blind (3) in direction of arrow.

Installation:

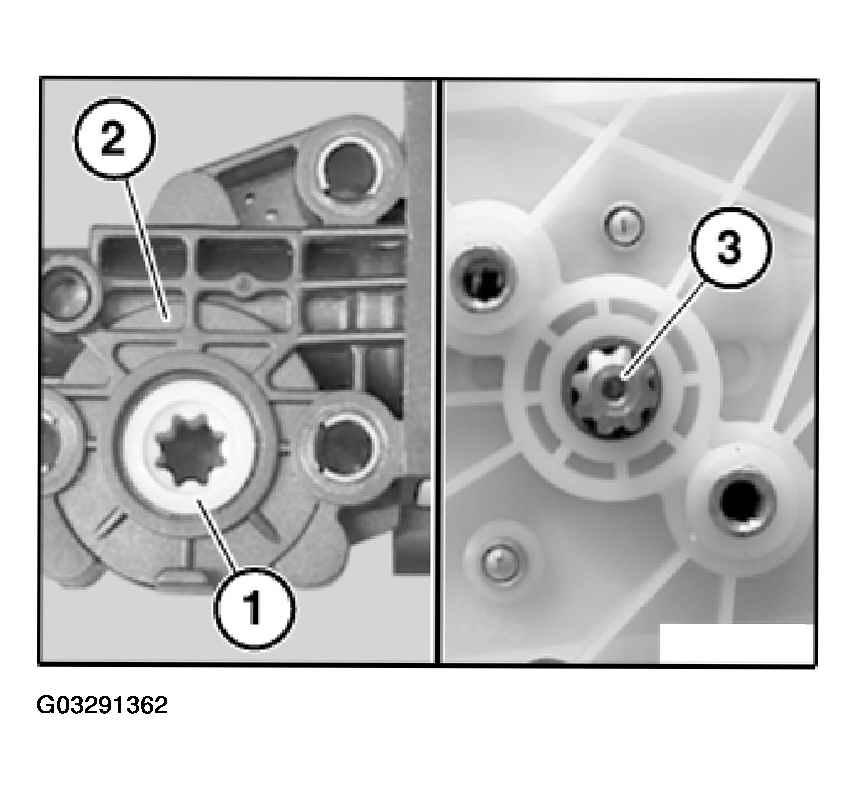

Toothing (1) of drive for roller sun blind (2) must be placed exactly on shaft (3).

Fig 2: Identifying Toothing Of Drive For Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.
