67 31 640 Removing and installing/replacing drive for backrest head adjustment (comfort seats in rear compartment)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat. Refer to 52 25 010 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR SEAT .

Detach retainers (1) in area (2).

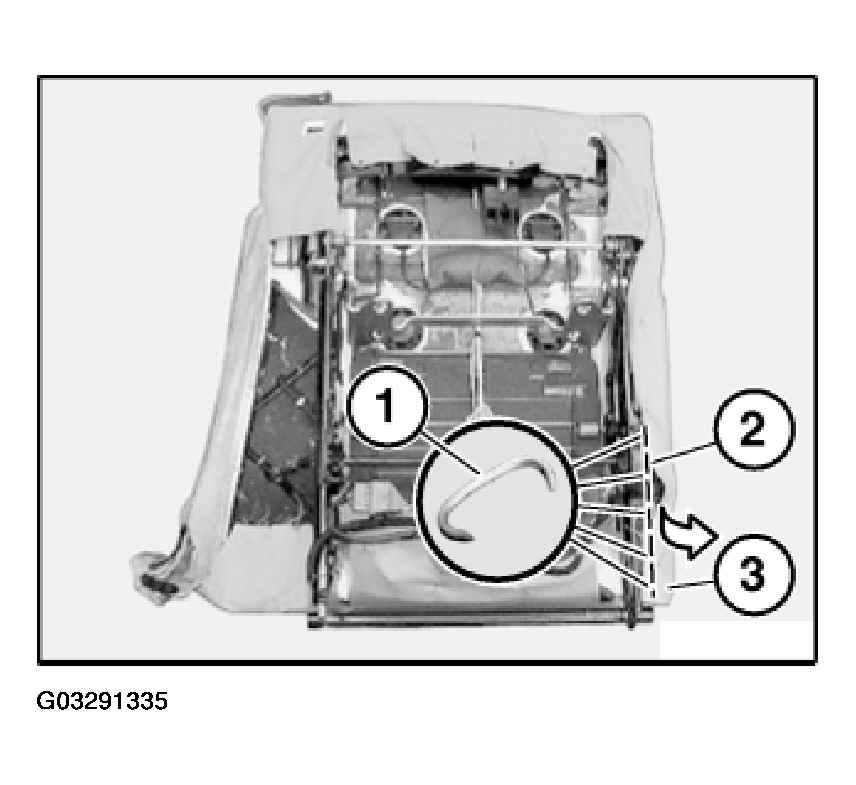

Fig 1: Turning Back Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Turn back backrest cover (3) in direction of arrow slightly.

NOTE: For purposes of clarity, illustration shows backrest cushion section removed.

Disconnect plug connection (1).

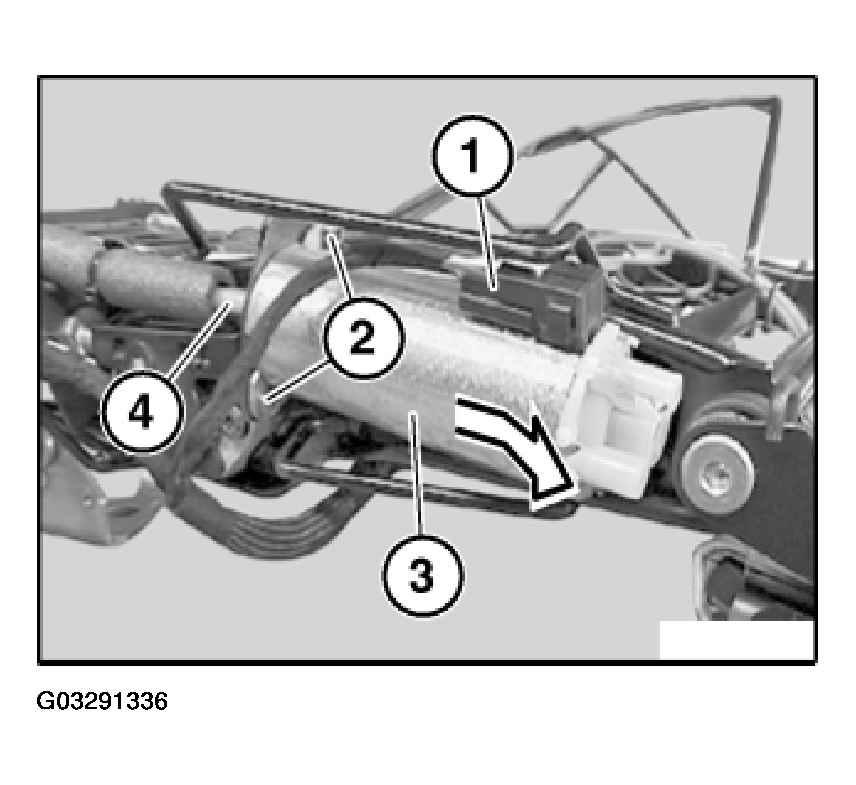

Fig 2: Detaching Drive For Seat Head Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Detach drive for seat head adjustment (3) from drive shaft (4) and remove in direction of arrow.

Installation:

Make sure spacer washers (1) are correctly seated.

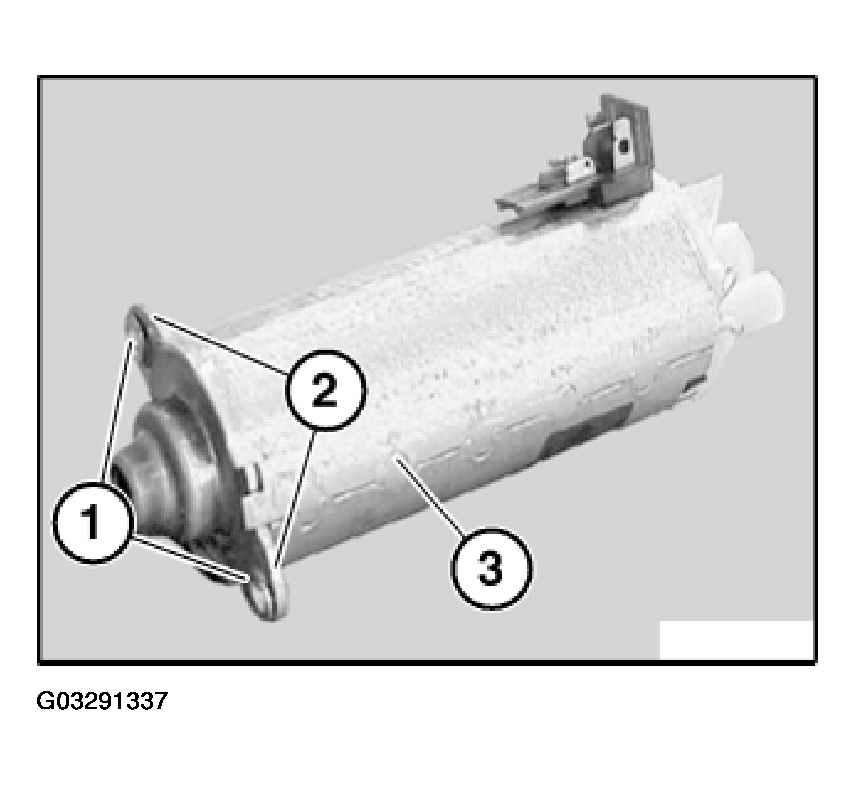

Fig 3: Locating Spacer Washers

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, fix spacer washers (1) in place on metal tabs (2) of drive for backrest head adjustment (3).

Replacement:

Initialize drive unit for backrest head adjustment. Refer to 67 31... NOTES ON INITIALIZING ELECTRIC SEAT SERVODRIVES .
