67 31 630 Removing and installing/replacing drive for backrest tilt adjustment (comfort seats in rear compartment)

Necessary preliminary tasks:

• Remove rear head restraint. Refer to 52 25 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT .
• Remove cover for armrest at rear. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

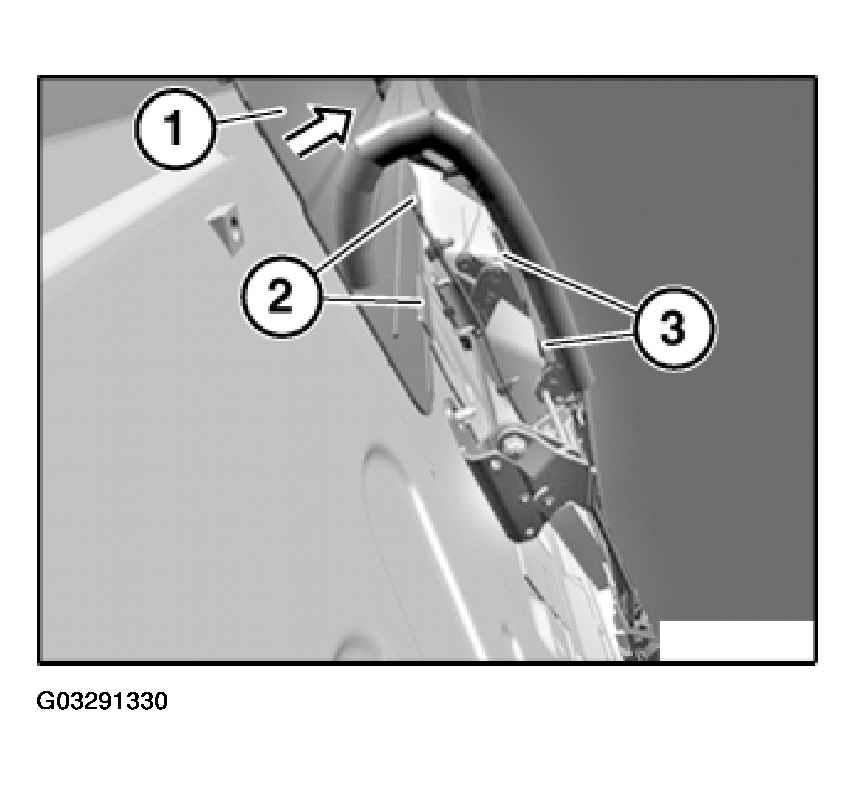

Detach cover (1) in direction of arrow from Velcro-type fastener behind, pull out from guides (2) and tilt forwards.

Fig 1: Detaching Cover From Velcro-Type Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catches (3) and remove cover (1) towards top.

Remove rear panel on rear seat backrest. Refer to 52 25... REMOVING AND INSTALLING/REPLACING REAR PANEL ON REAR SEAT BACKREST .

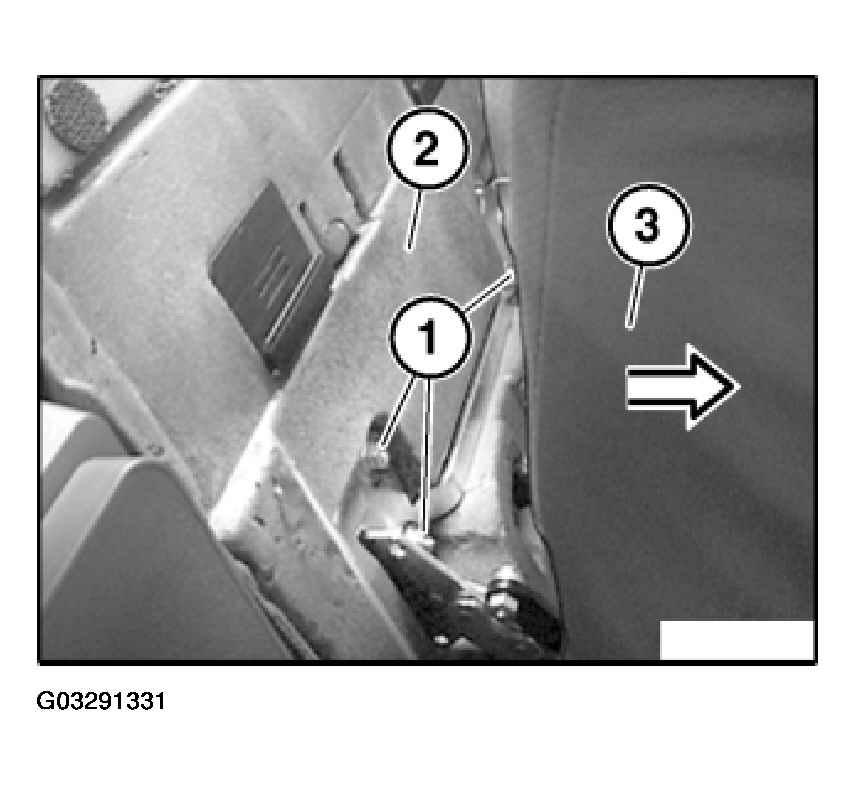

Release screws (1) on luggage compartment partition (2).

Fig 2: Locating Screws On Luggage Compartment Partition

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 52 25 1AZ. Refer to SEATS - TIGHTENING TORQUES - 745I - E65 .

Move rear seat backrest (3) forward slightly.

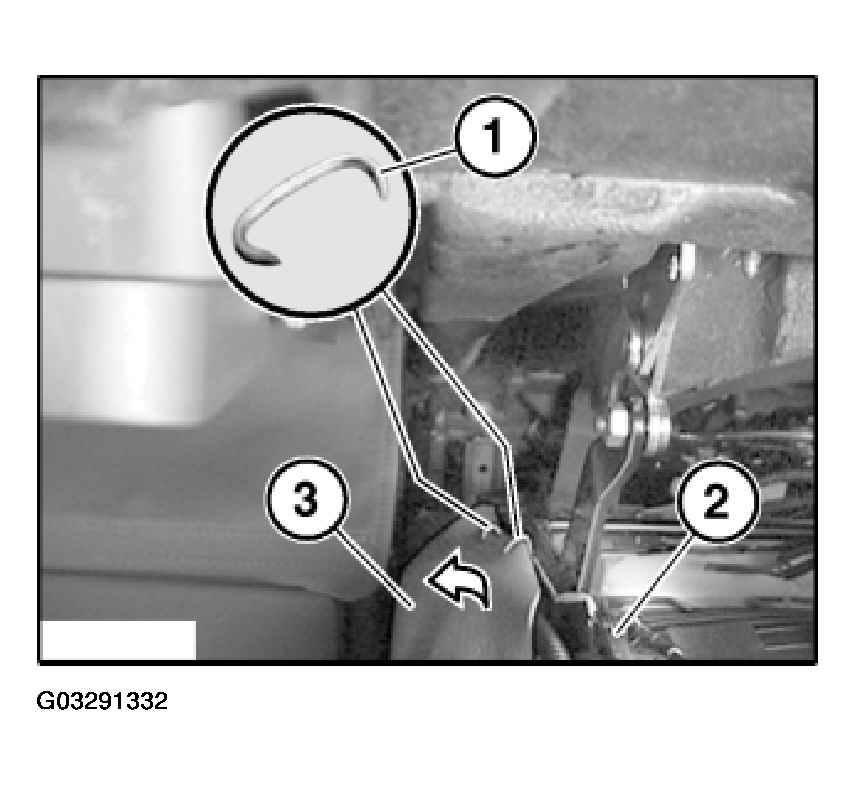

Detach retainers (1) on rear seat backrest (2).

Fig 3: Detaching Retainers On Rear Seat Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Turn back backrest cover (3) in direction of arrow slightly.

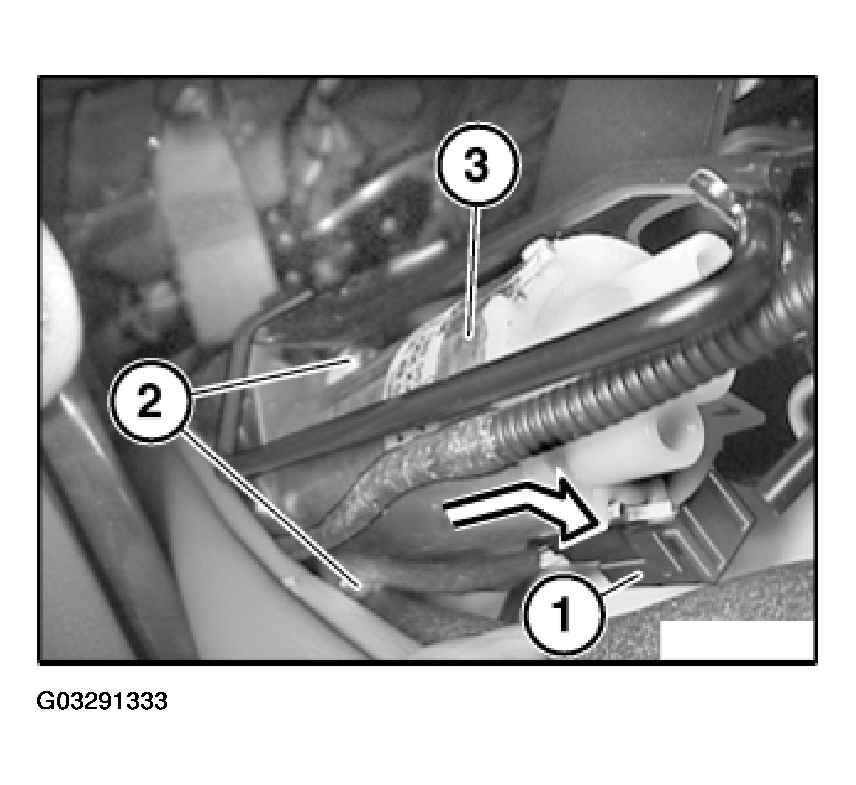

Disconnect plug connection (1).

Fig 4: Removing Drive For Backrest Tilt Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Carefully feed out drive for backrest tilt adjustment (3) in direction of arrow and remove.

Installation:

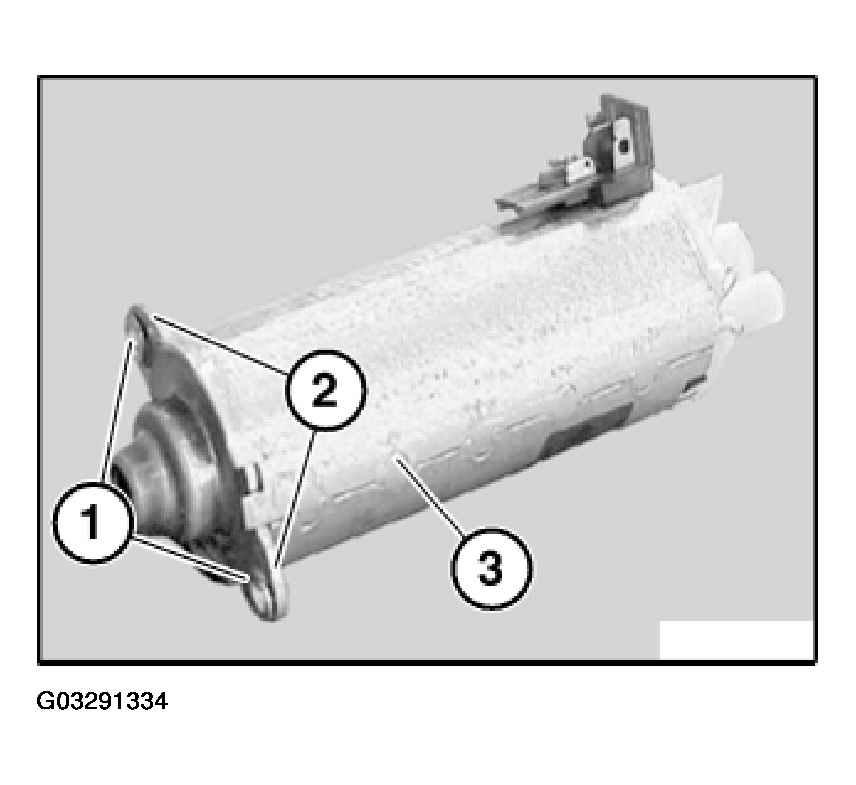

Make sure spacer washers (1) are correctly seated.

Fig 5: Fixing Spacer Washers In Place On Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, fix spacer washers (1) in place on metal tabs (2) of drive for backrest tilt adjustment (3).

Replacement:

Initialize drive unit for backrest angle adjustment. Refer to 67 31... NOTES ON INITIALIZING ELECTRIC SEAT SERVODRIVES .
