67 32 660 Replacing fan for backrest on rear seat (comfort seat)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear head restraint. Refer to 52 25 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT .
Remove cover for armrest at rear. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

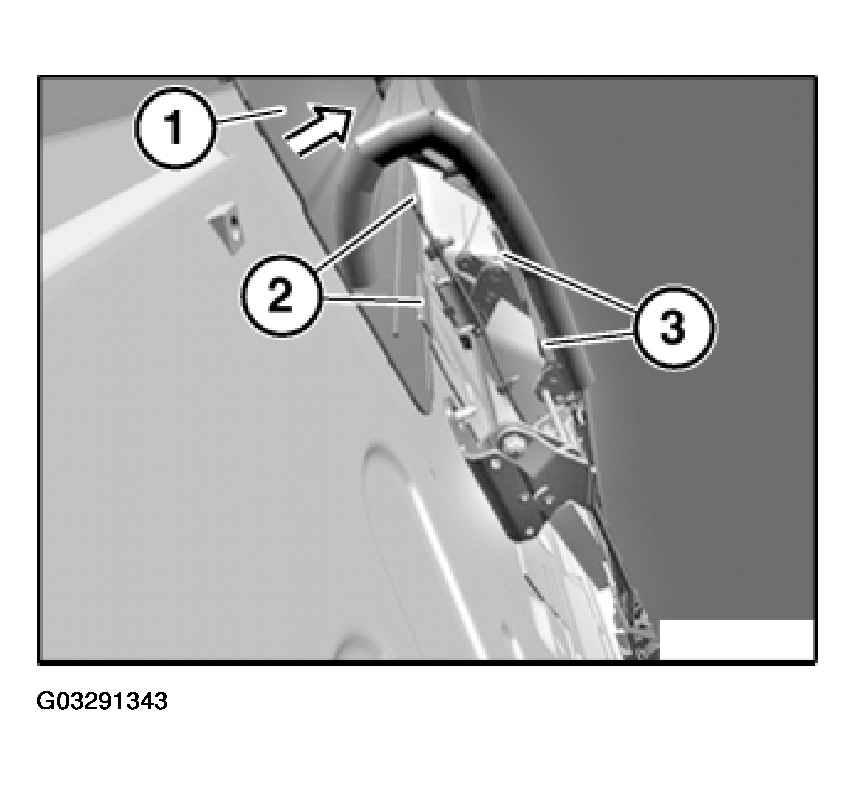

Detach cover (1) in direction of arrow from Velcro-type fastener behind, pull out from guides (2) and tilt forwards.

Fig 1: Detaching Cover From Velcro-Type Fastener

G03291343

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catches (3) and remove cover (1) towards top.

Remove rear panel on rear seat backrest. Refer to 52 25... REMOVING AND INSTALLING/REPLACING REAR PANEL ON REAR SEAT BACKREST .

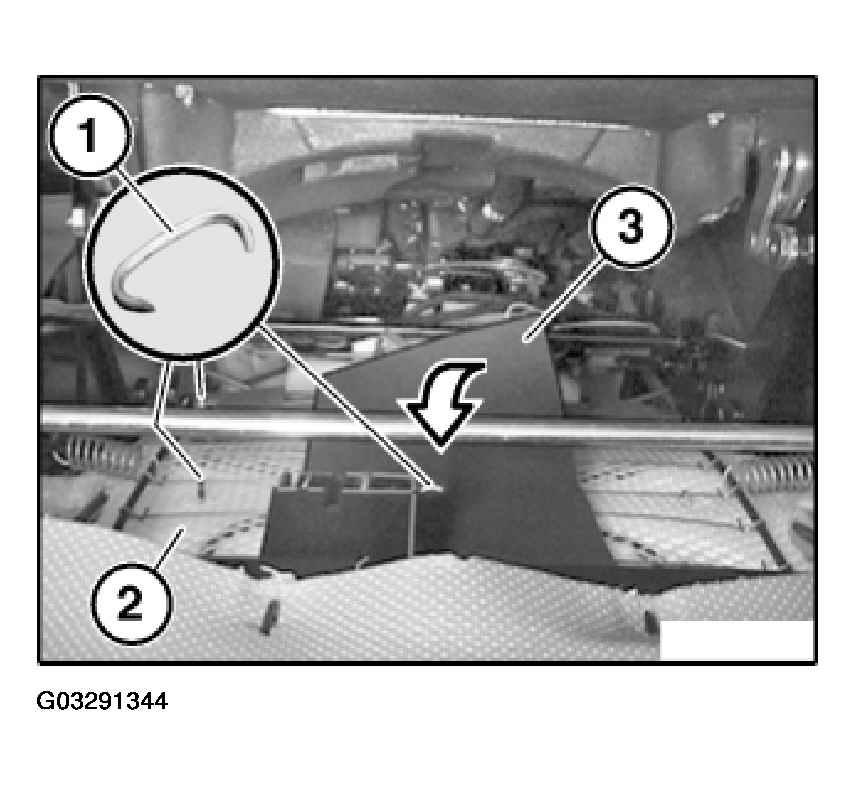

Detach retainers (1) on rear seat backrest (2).

Fig 2: Detaching Retainers On Rear Seat Backrest

G03291344

Courtesy of BMW OF NORTH AMERICA, INC.

Fold felt (3) upwards slightly.

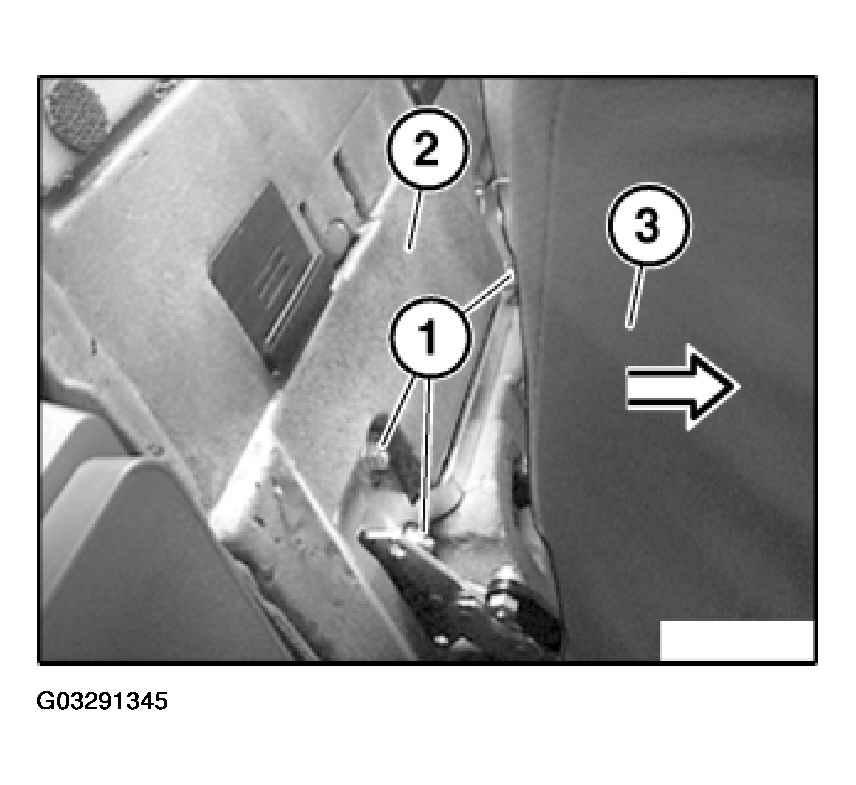

Release screws (1) on luggage compartment partition (2).

Fig 3: Releasing Screws On Luggage Compartment Partition

G03291345

Courtesy of BMW OF NORTH AMERICA, INC.

Move rear seat backrest (3) forward slightly.

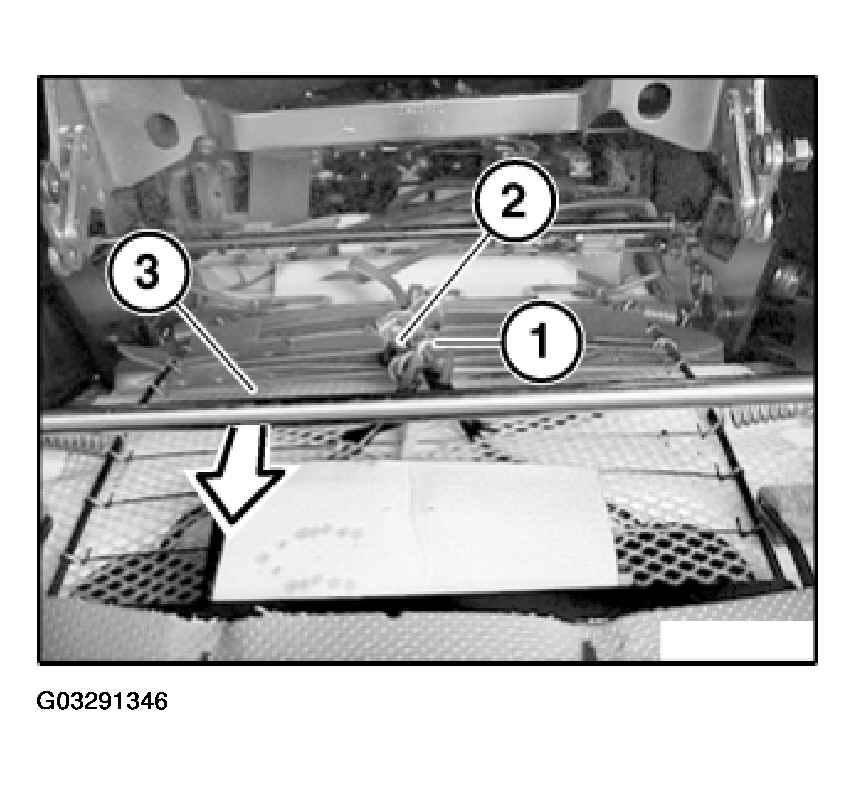

Disconnect plug connection (1).

Fig 4: Disconnecting Plug Connection

G03291346

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, cut through cable tie (2).

Pull dividing net (3) upwards slightly.

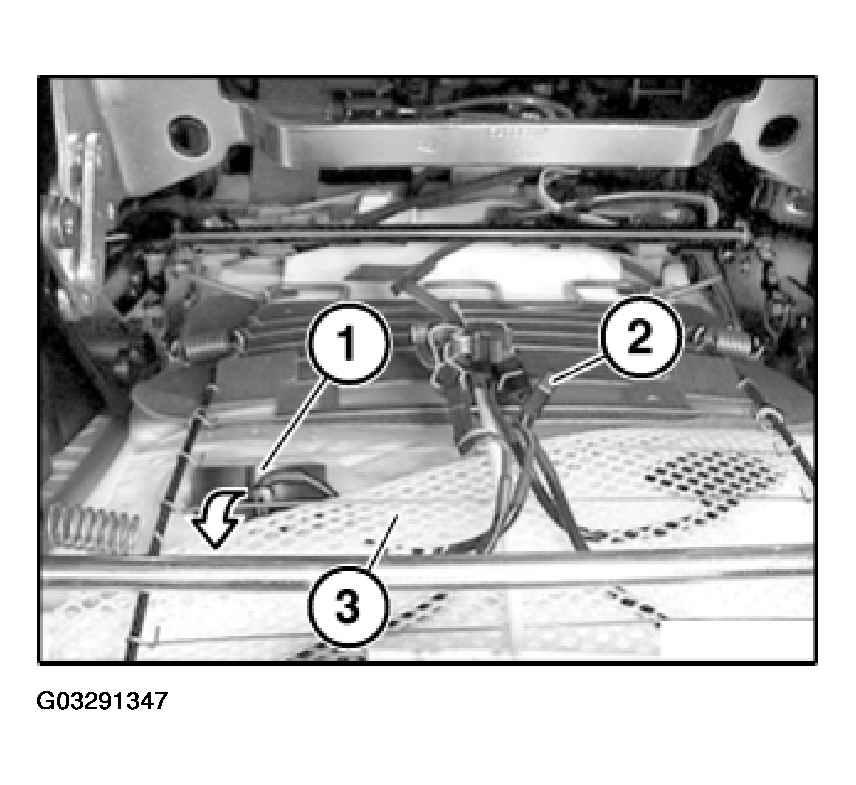

Feed fan for backrest (1) as illustrated out of backrest and pull out plug (2) through opening in dividing net (3).

Fig 5: Removing Fan For Backrest

G03291347

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan for backrest (1).
