65 50 011 Removing and installing (replacing) video module for on-board monitor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Disconnect battery negative lead, refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD
- Remove flap in luggage compartment panel on left. Refer to 51 47 172 REMOVING AND INSTALLING / REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .
NOTE:
Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS
.
Installation:

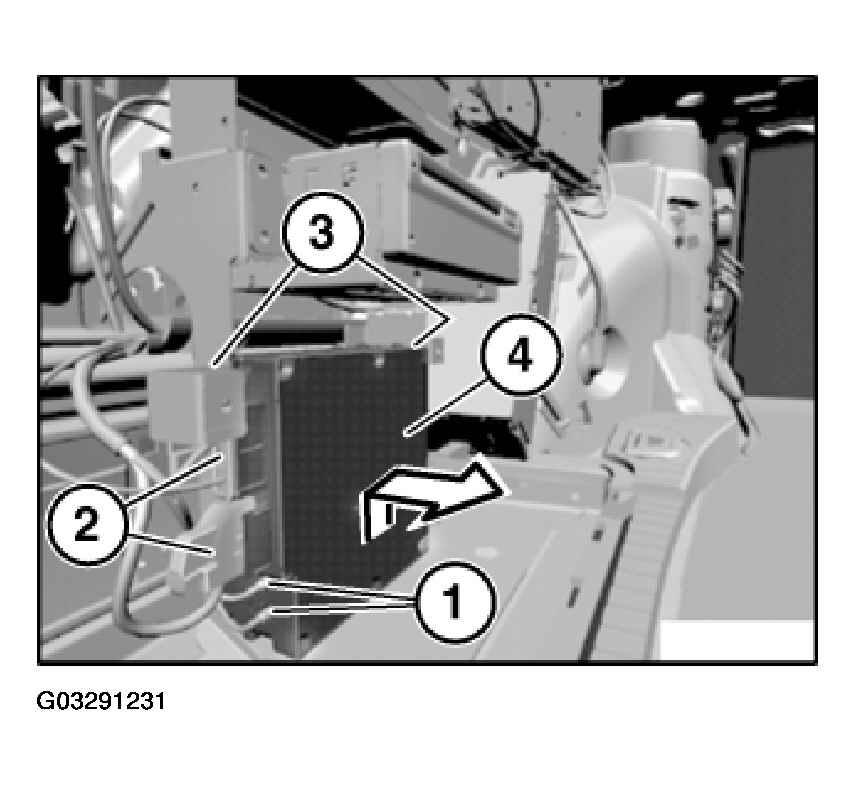

Do not mix up antenna connectors (1).
Mark antenna plugs (1) and disconnect.
Unlock plug connections (2) and disconnect.
Release screws (3).
Feed out video module for on-board monitor (4) in direction of arrow and remove.
Replacement:
Carry out coding/programming.
Observe following IDC specifications:
- Programming
- Coding
- Car & Key Memory
- CD "CIP"
