65 13 195 Removing and installing/replacing rear treble speaker (in rear shelf)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove speaker box. Refer to 65 13 180 REMOVING AND INSTALLING/REPLACING REAR SPEAKER BOX (IN REAR SHELF) .

Disconnect plug connection (1).

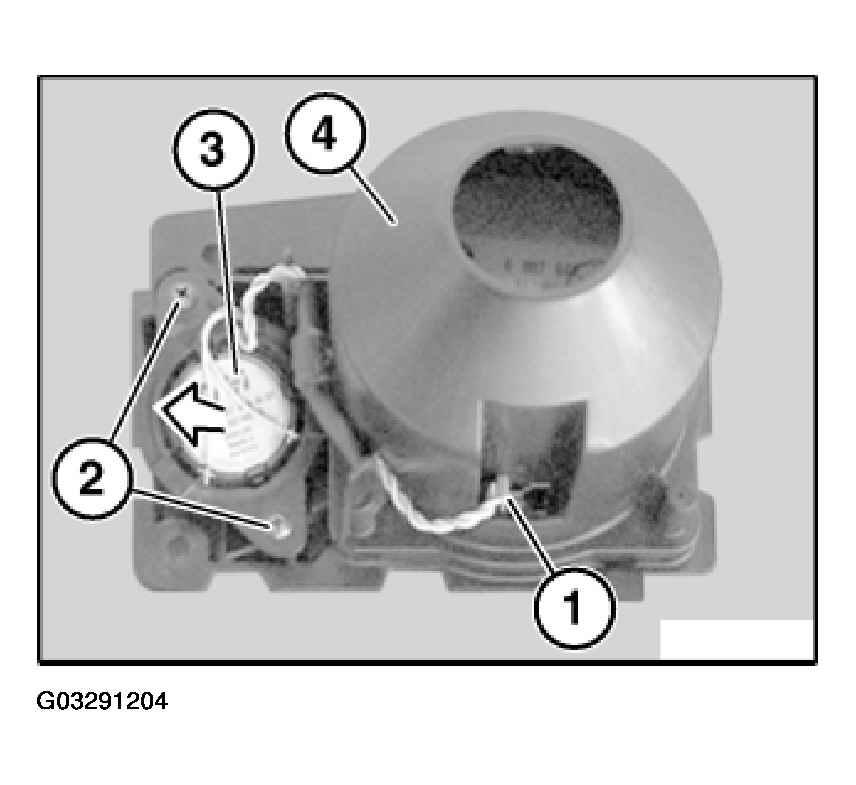

Fig 1: Removing Rear Treble Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Remove treble speaker (3) from speaker box (4).

Installation:

Ensure correct cable routing.
