63 21 310 Replacing circuit board for left or right rear light (up to 03/2005) (on rear lid)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear light, refer to 63 21 183 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (UP TO 03/2005) (ON REAR LID)

Detach sealing frame for rear light (1) in direction of arrow.

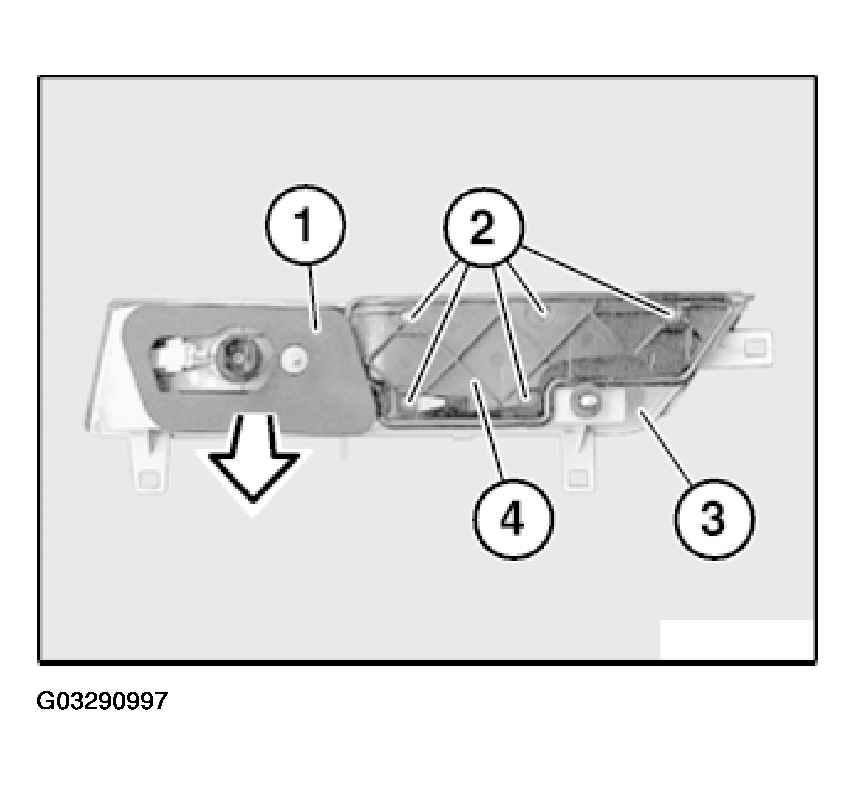

Fig 1: Removing Cover Cap Of Rear Light From Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove cover cap of rear light (4) from rear light (3).

Installation:

Make sure seal (1) is correctly seated in cover cap of rear light (2).

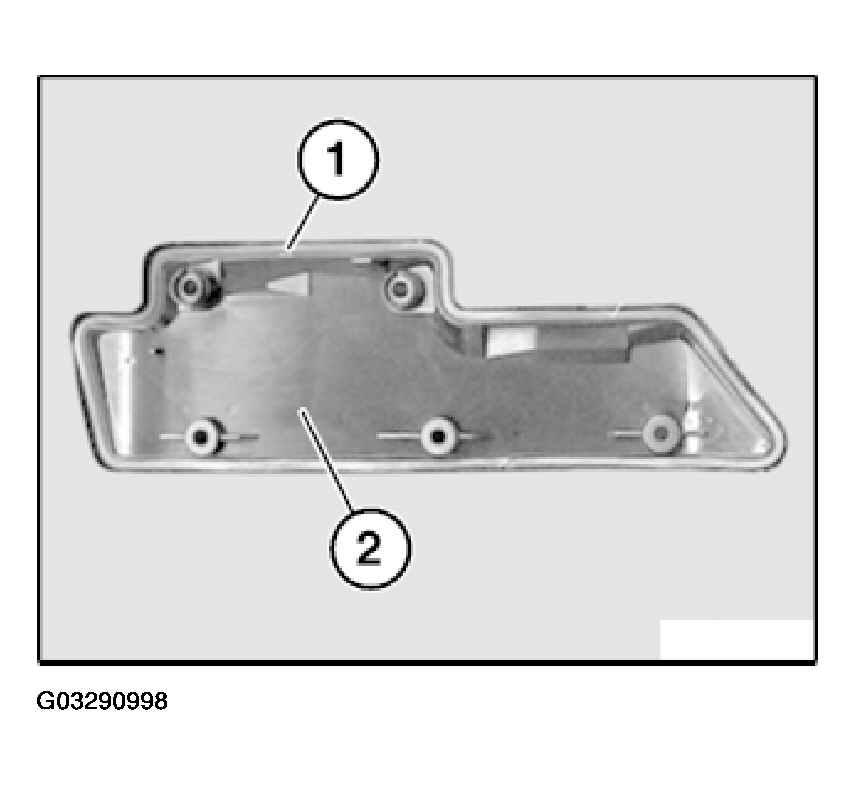

Fig 2: Identifying Seal In Cover Cap Of Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1).

Release screws (2).

Remove circuit board for rear light (3) from rear light (4).

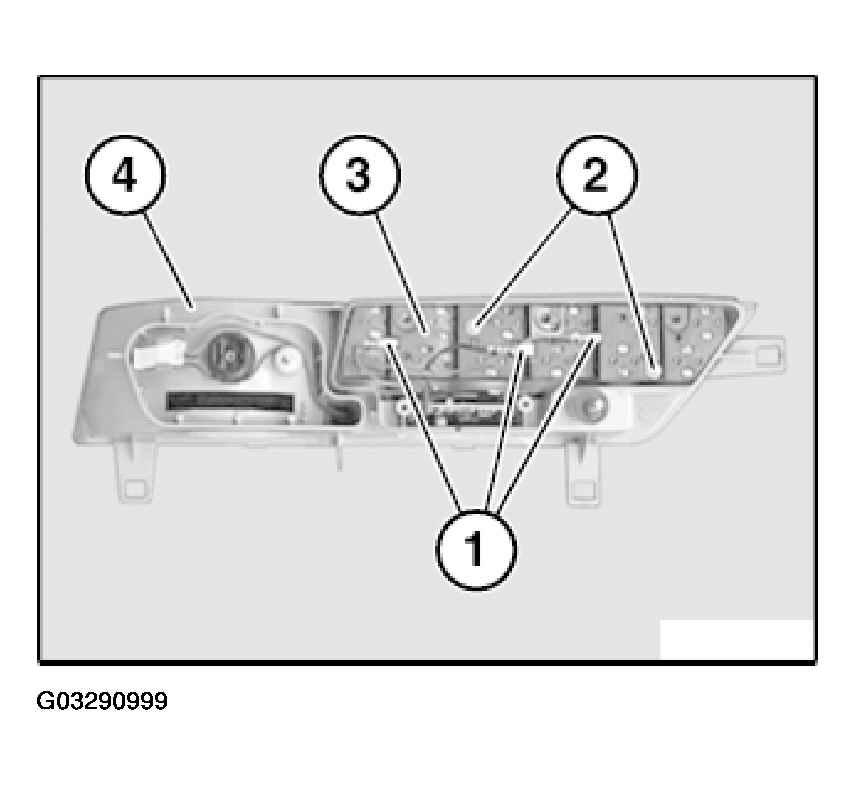

Fig 3: Removing Circuit Board For Rear Light From Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.
