63 21 183 Removing and installing/replacing left or right rear light (up to 03/2005) (on rear lid)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove complete rear center trim, refer to 51 13 400 REMOVING AND INSTALLING/REPLACING REAR CENTRE TRIM (UP TO 03/2005)

Unclip rear light (1) and remove.

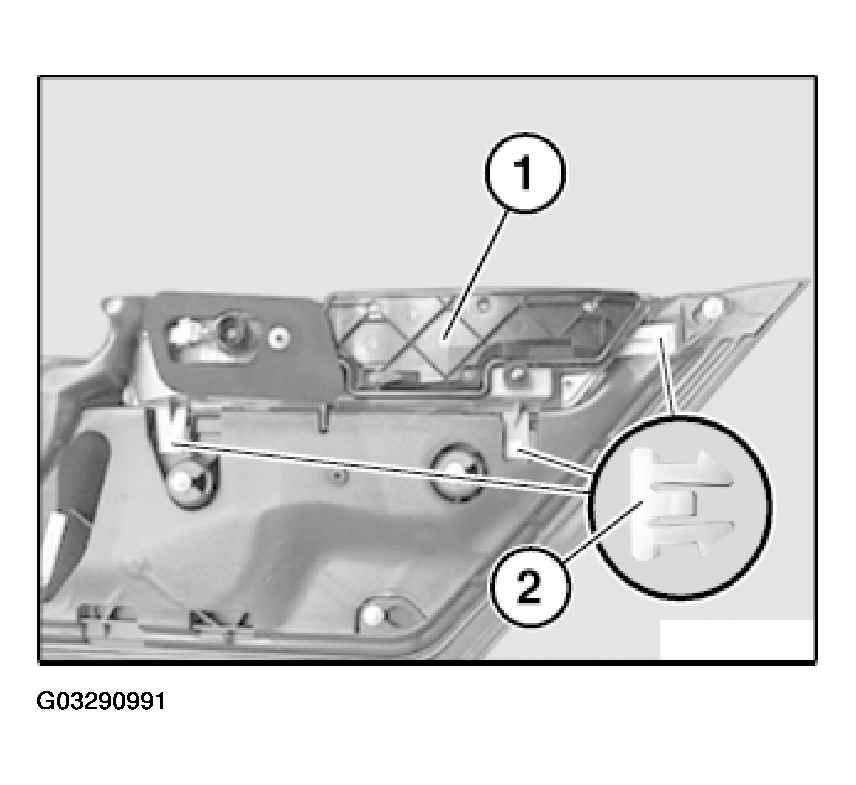

Fig 1: Removing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (2).

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs.
