63 21 186 Removing and installing/replacing rear light (on center of rear lid)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

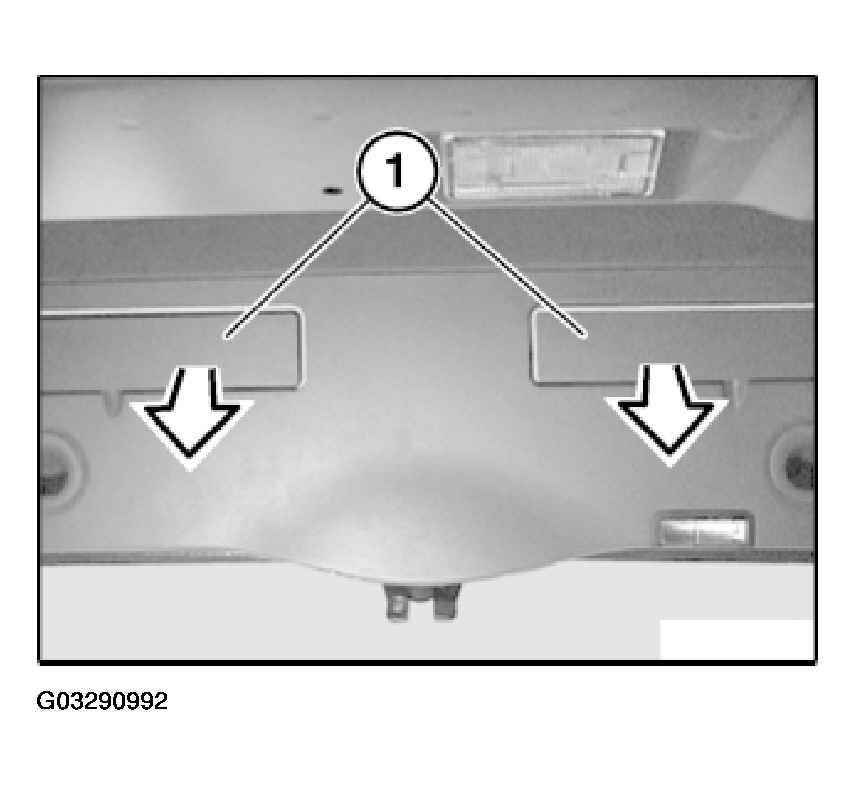

Lever out covers (1) at bottom and remove.

Fig 1: Removing Covers

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Releasing rear light is shown on left side.

Fig 2: Releasing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Releasing rear light on right side is done in same way.

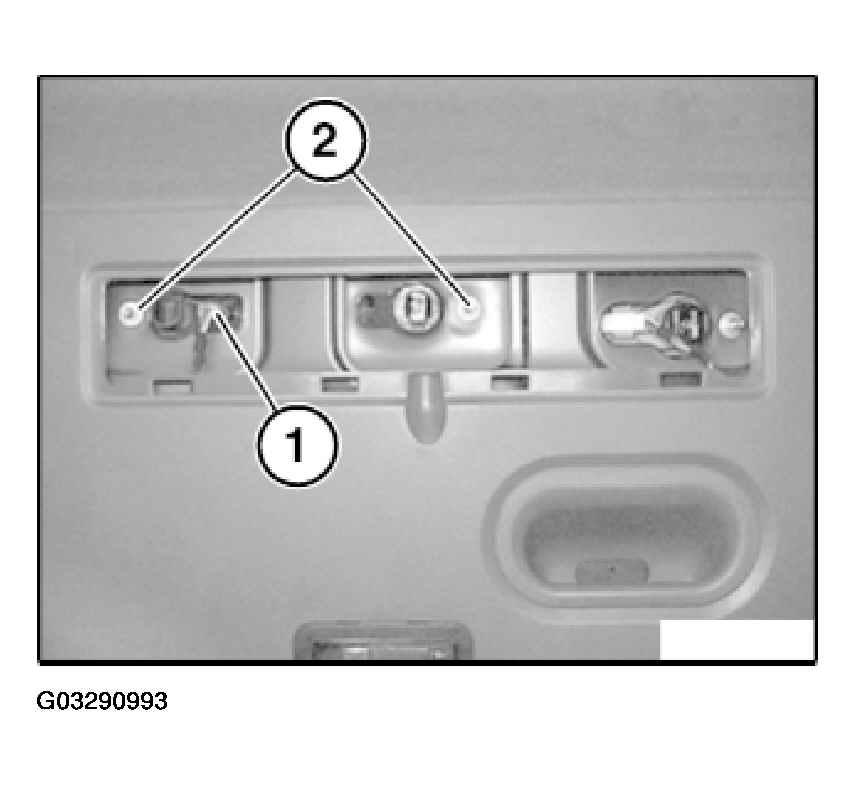

Unfasten plug connection (1) and disconnect.

Unscrew nuts (2).

NOTE: Secure rear light against falling out.
Lower luggage compartment lid.

NOTE: If necessary, secure shims under rear light (1) against falling out.

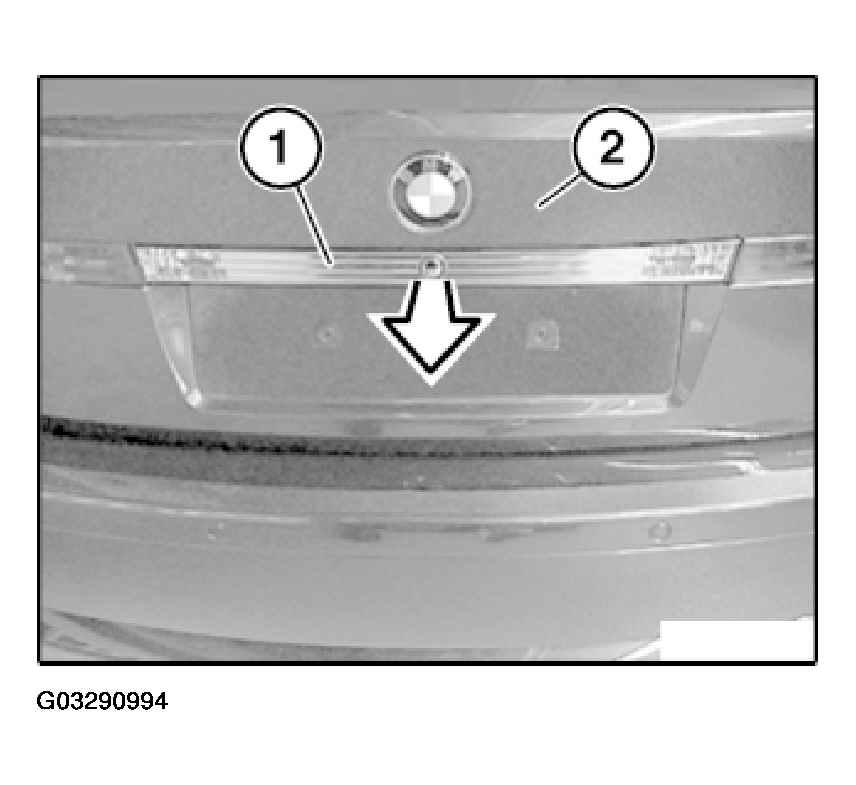

Pull out rear light (1) slightly in direction of arrow.

Fig 3: Removing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath and remove rear light (1).

Installation:

Make sure gap is uniform all round between rear light (1) and luggage compartment lid (2).

Make sure sealing frame for rear light is correctly seated; replace if necessary. Refer to 63 21 107 REPLACING SEALING FRAME FOR REAR LIGHT (ON CENTRE OF REAR LID) .

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs.
