63 21 107 Replacing sealing frame for rear light (on center of rear lid)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove and install rear light, refer to 63 21 186 REMOVING AND INSTALLING/REPLACING REAR LIGHT (ON CENTRE OF REAR LID)

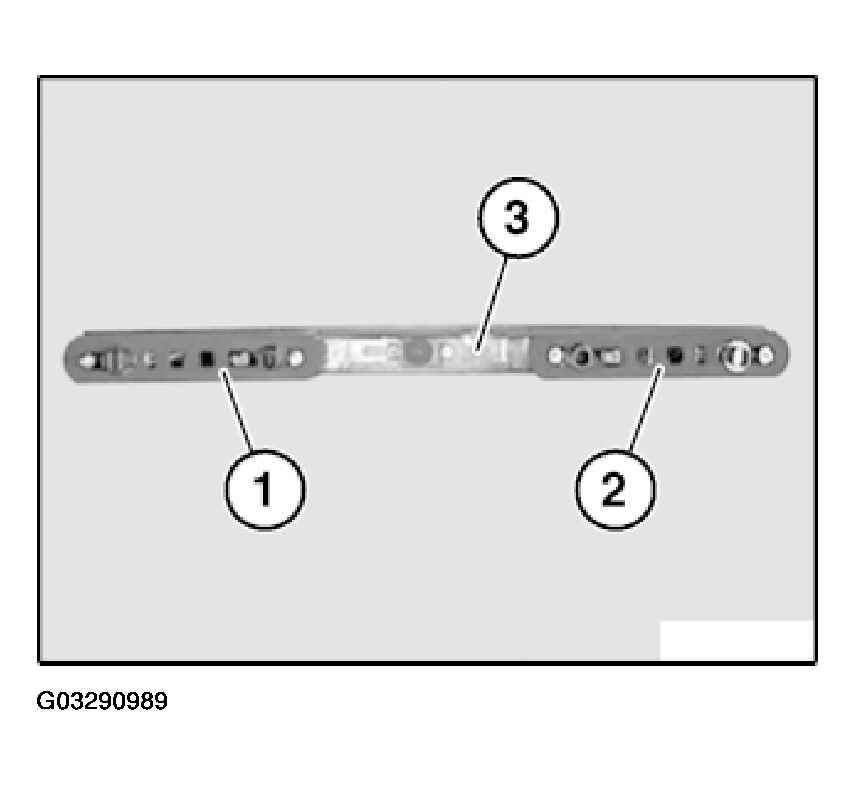

Detach sealing frames for rear light on left (1) and right (2) from rear light (3).
Installation:
Make sure both sealing frames for rear light (1) and (2) is correctly bonded all round on rear light (3).
