63 99 492 Replacing light module for rear left or right outside door handle lighting (up to 09/2004) (with roller sun blind on rear door)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both drives for roller sun blind, refer to 67 65 019 REMOVING AND INSTALLING/REPLACING DRIVE FOR LEFT OR RIGHT ROLLER SUN BLIND

Disconnect plug connection (1).

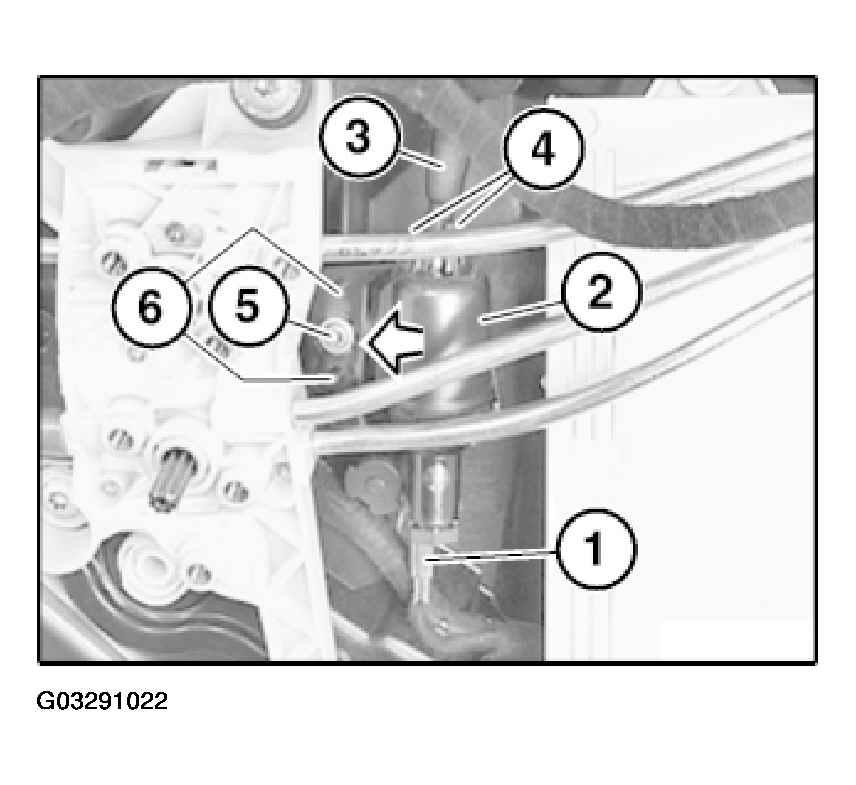

Fig 1: Unlocking Both Catches And Detaching Light Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock both catches (4) and detach light guide (3).

Release screw (5).

Remove light module for outside door handle light (2) in direction of arrow from centerings (6).

Installation:

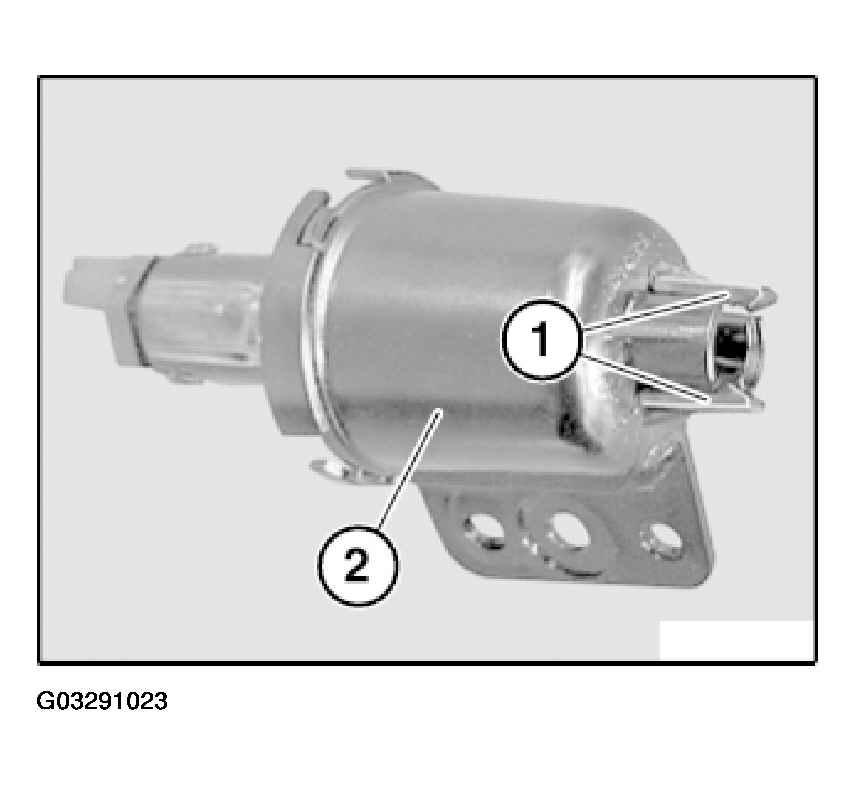

Catches (1) of light module for outside door handle lighting (2) must engage correctly when fiber optic guide is inserted.

Fig 2: Identifying Catches Of Light Module

Courtesy of BMW OF NORTH AMERICA, INC.
