62 11 280 Removing and installing (replacing) instrument cluster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove wood trim on instrument panel on left. Refer to 51 45 360 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON LEFT .

Release screws (1).

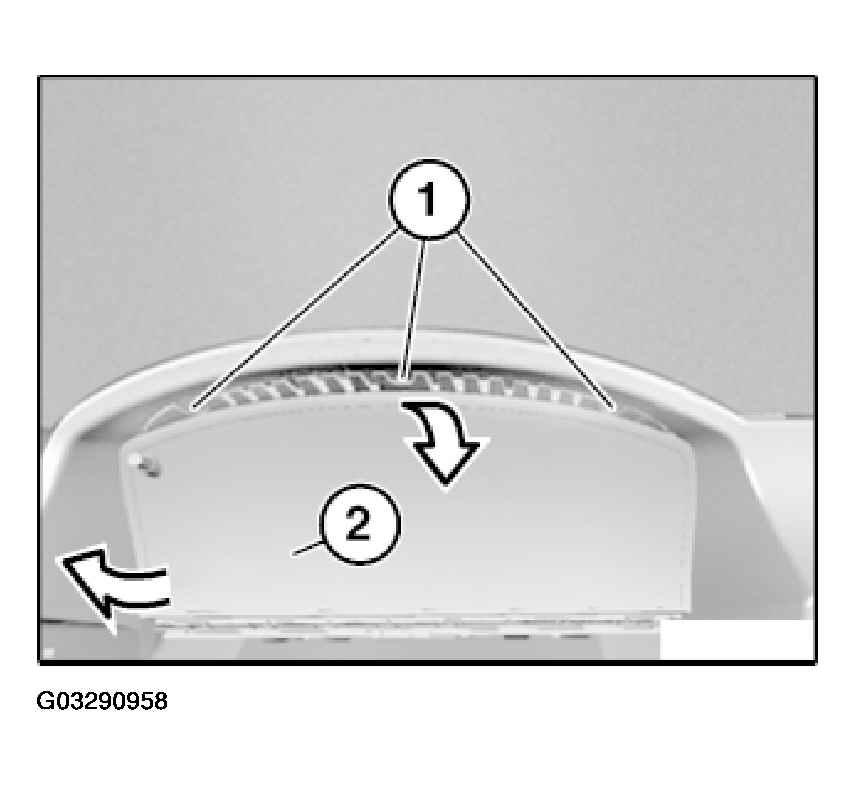

Fig 1: Removing Instrument Cluster

G03290958

Courtesy of BMW OF NORTH AMERICA, INC.

Fold instrument cluster (2) towards rear and remove in direction of arrow.

Disconnect plug connection behind.

Installation:

Retaining lugs (1) of instrument cluster (2) must be exactly seated in mountings of instrument panel.

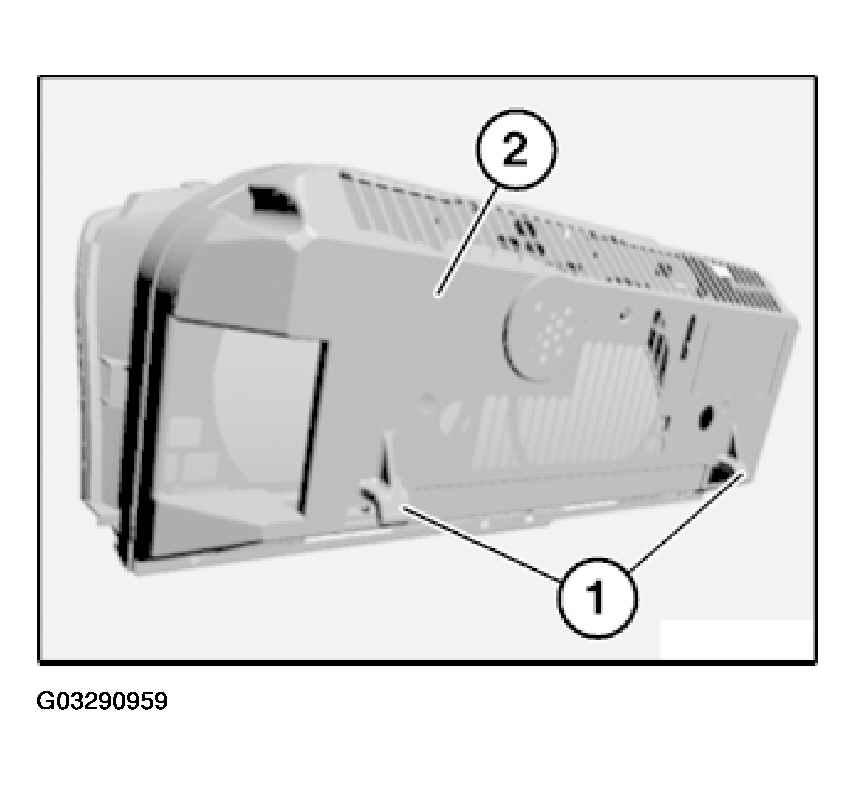

Fig 2: Identifying Retaining Lugs Of Instrument Cluster

G03290959

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

Fig 3: View Of Control Unit

G03290960

Courtesy of BMW OF NORTH AMERICA, INC.
