51 45 360 Removing and installing/replacing wood trim on left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Remove left fresh-air grill. Refer to 64 22 137 REMOVING AND INSTALLING/REPLACING LEFT FRESH AIR GRILL (AUTOMATIC A/C HIGH) .

Remove instrument cluster trim. This task is described in the section "Removing center wood trim on instrument panel". Refer to 51 45 363 REMOVING AND INSTALLING/REPLACING CENTER WOOD TRIM ON INSTRUMENT PANEL .

Release nut (1).

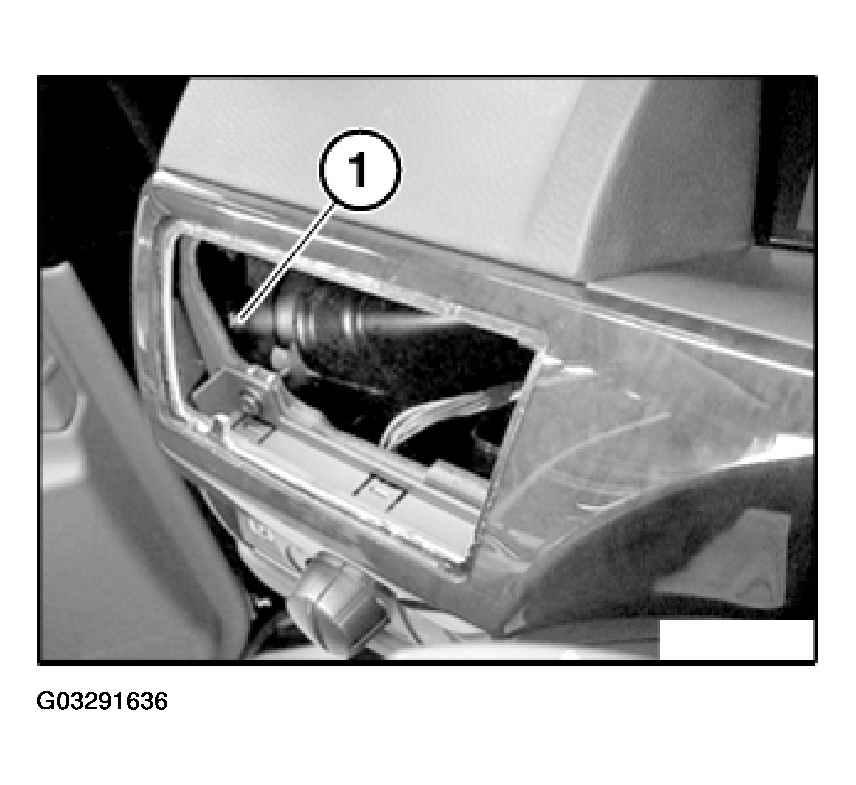

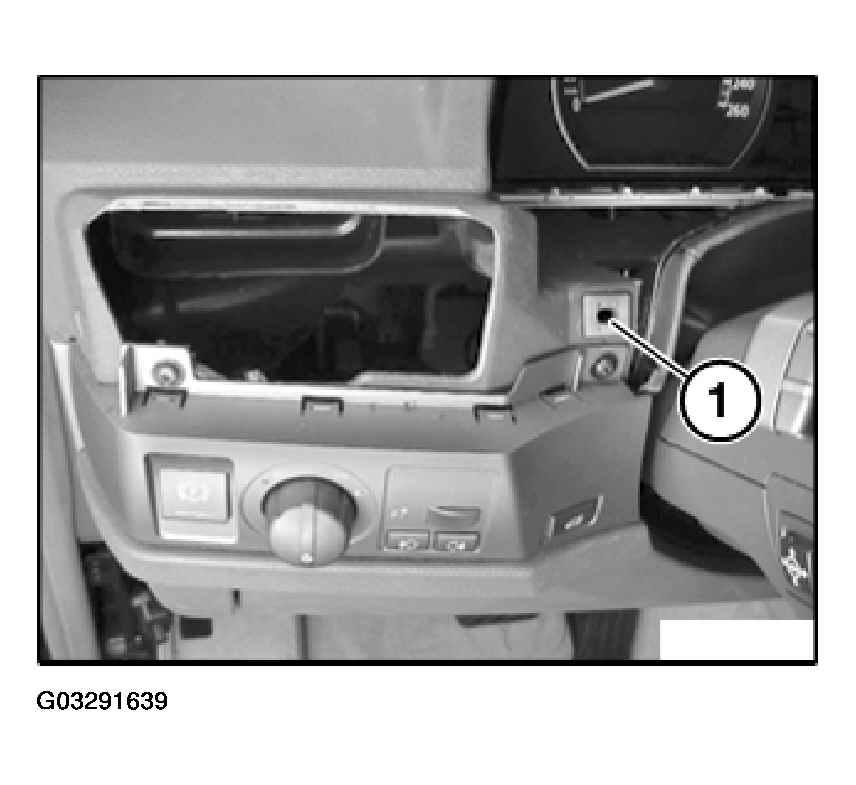

Fig 1: Releasing Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 51 45 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Release screw (1).

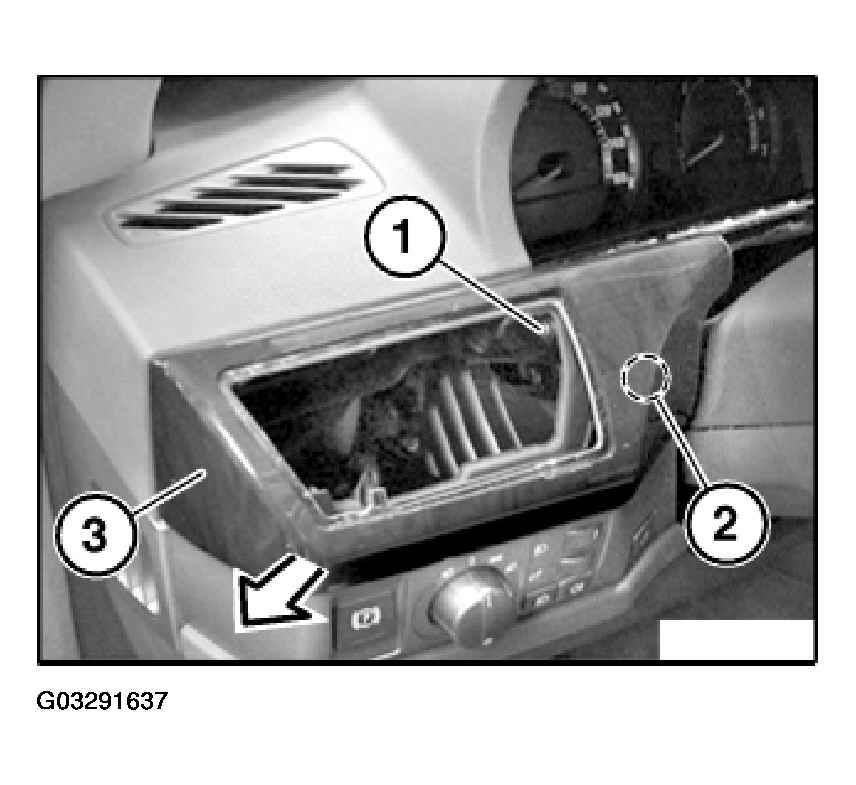

Fig 2: Removing Wood Trim

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 00 9 321 (fishbone) through opening for fresh air grill, unclip wood trim (3) next to retaining pin (2).

Remove wood trim (3) in direction of arrow.

Installation:

Following parts of wood trim (4) must not be damaged or missing:

Shaft
Speed nut
Stud

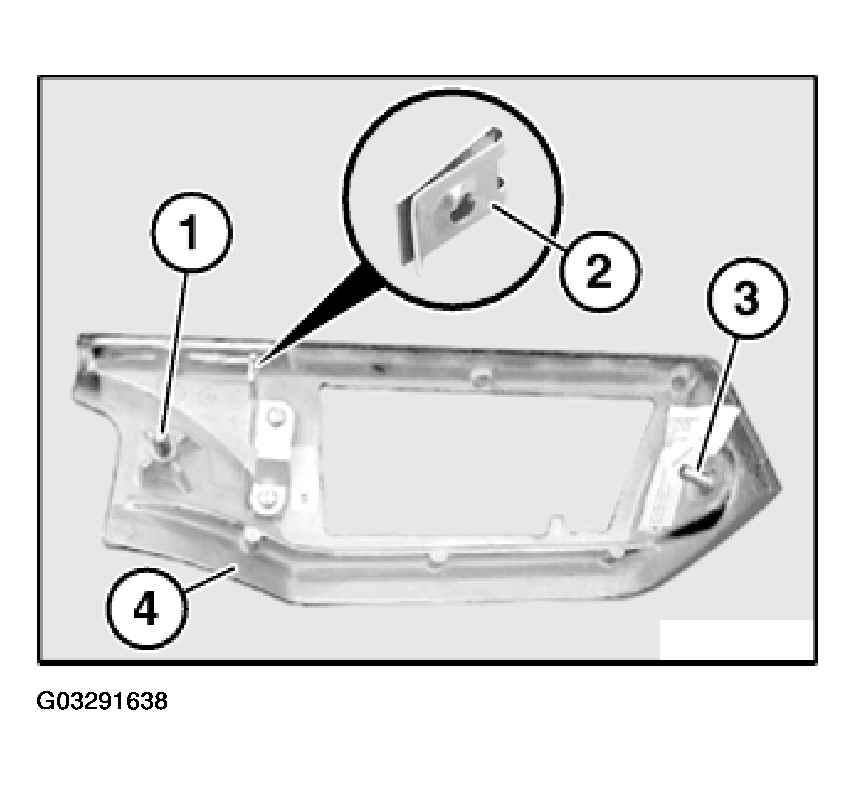

Fig 3: Identifying Wood Trim Parts
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clip (1) (Hutfix).

Fig 4: Replacing Damaged Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing clip (Hutfix):

Turn clip (1) with screwdriver to left by approx. 60°.
Lever out clip (1) from below.

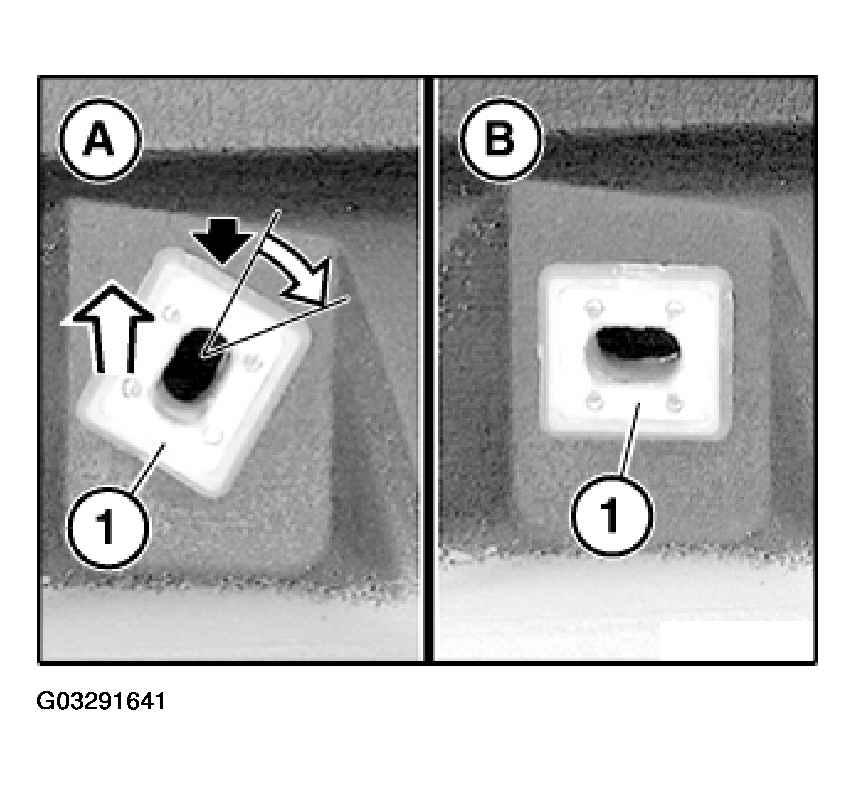

Fig 5: Replacing Clip
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert clip (1) from above and snap into place at bottom. Then turn clip (1) with screwdriver to right by approx. 60°.
Clip (1) in end position.

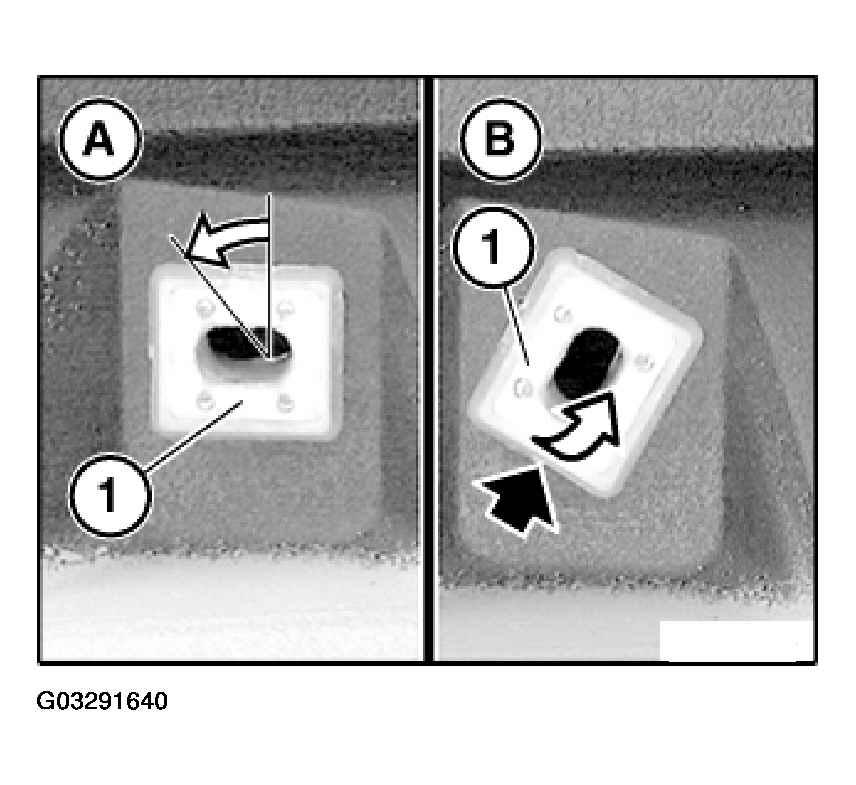

Fig 6: Installing Clip
Courtesy of BMW OF NORTH AMERICA, INC.
