52 25 075 Removing and installing/replacing decorative strip on center armrest at rear side left or right

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear switch combination. Refer to 61 31 166 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT SWITCH COMBINATION (SEAT HEATING, SEAT A/C FOR COMFORT SEAT IN REAR COMPARTMENT) .

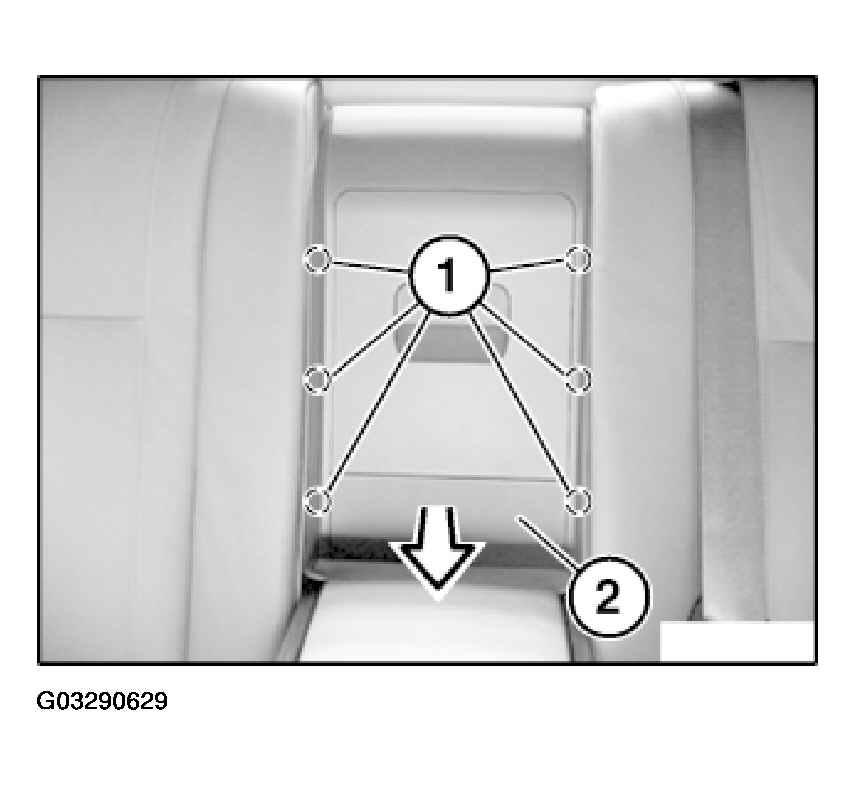

Lever out catches (1) and remove armrest trim (2) in direction of arrow.

Fig 1: Removing Catches And Armrest Trim

Courtesy of BMW OF NORTH AMERICA, INC.

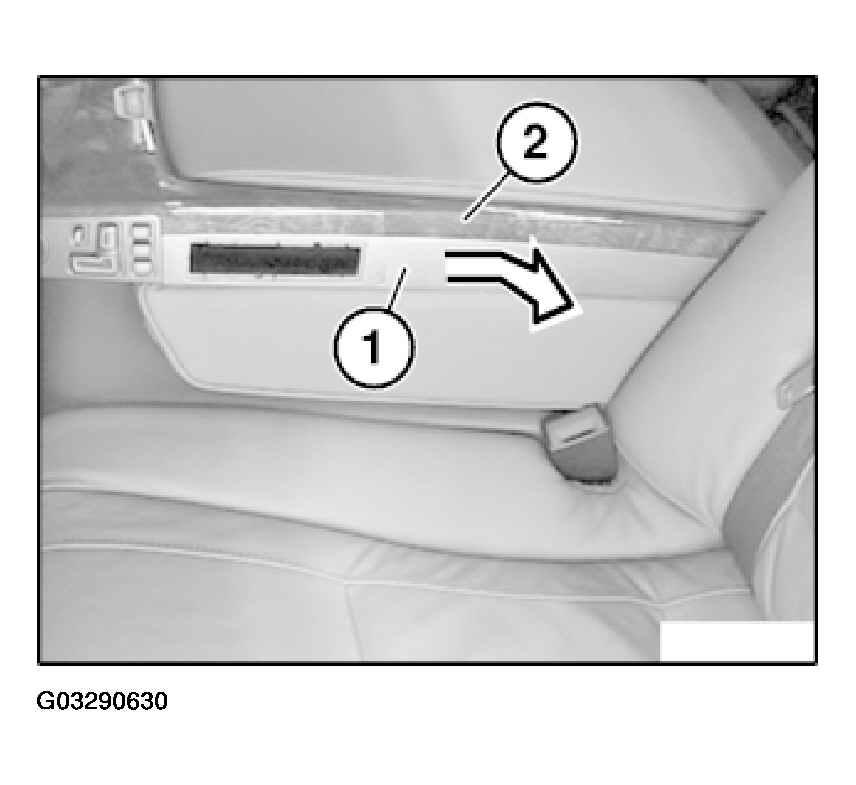

Slide back decorative trim on center armrest at rear side (1) and remove in direction of arrow from center armrest (2).

Fig 2: Removing Decorative Trim On Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure all guides of decorative trim are correctly engaged on center armrest at rear side (1).
