61 31 166 Removing and installing/replacing rear left or right switch combination (seat heating, seat A/C for comfort seat in rear compartment)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 341
Remove control unit in rear center armrest. Refer to 61 31 156 Removing and installing (replacing) control unit in center armrest at rear .

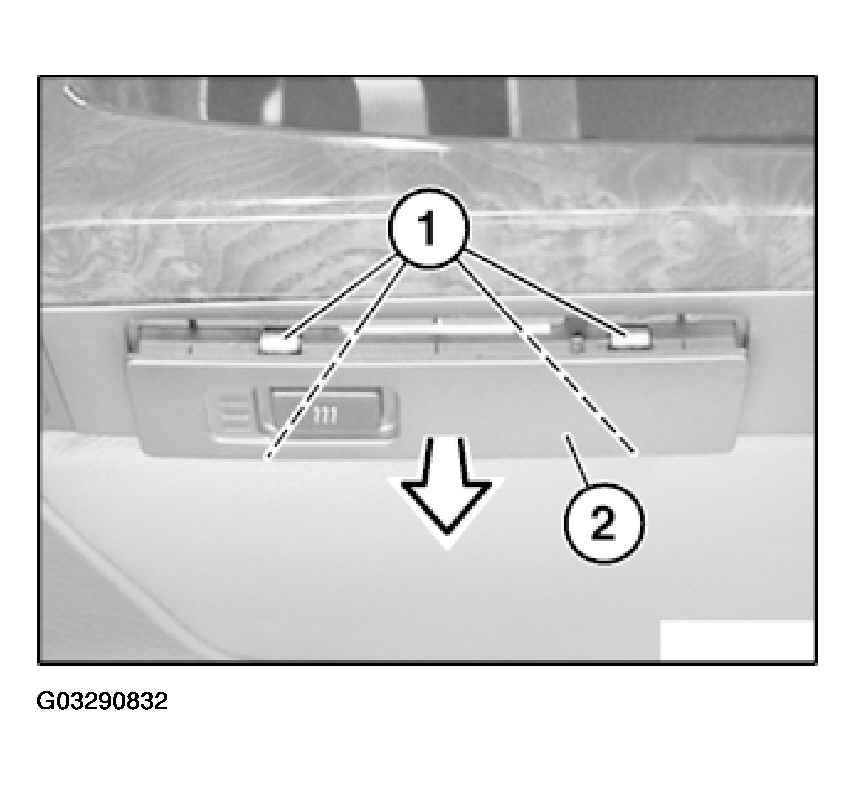

Using special tool 00 9 341, depress catches (1) and press out rear switch combination (2) in direction of arrow.
