52 25 070 Removing and installing/replacing wood trim on rear center armrest

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear center head restraint. Refer to 52 25 388 REMOVING AND INSTALLING/REPLACING REAR MIDDLE HEAD RESTRAINT .
Remove decorative strip on center armrest at rear side. Refer to 52 25 075 REMOVING AND INSTALLING/REPLACING DECORATIVE STRIP ON CENTER ARMREST AT REAR SIDE LEFT OR RIGHT .

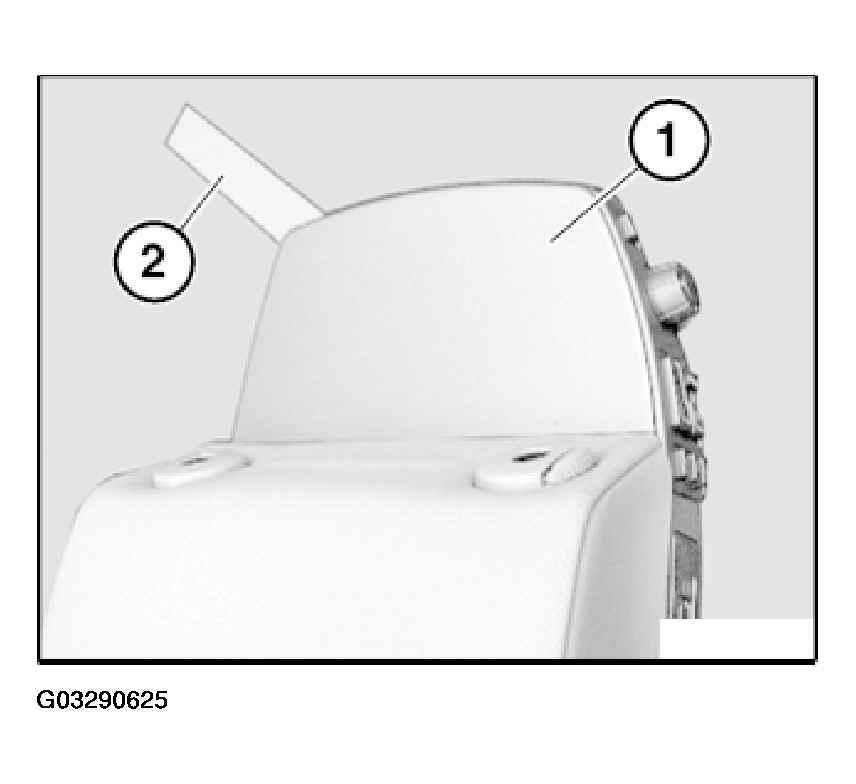

Unclip bottom trim (1) with assembly wedge (2) and remove.

Fig 1: Removing Bottom Trim

Courtesy of BMW OF NORTH AMERICA, INC.

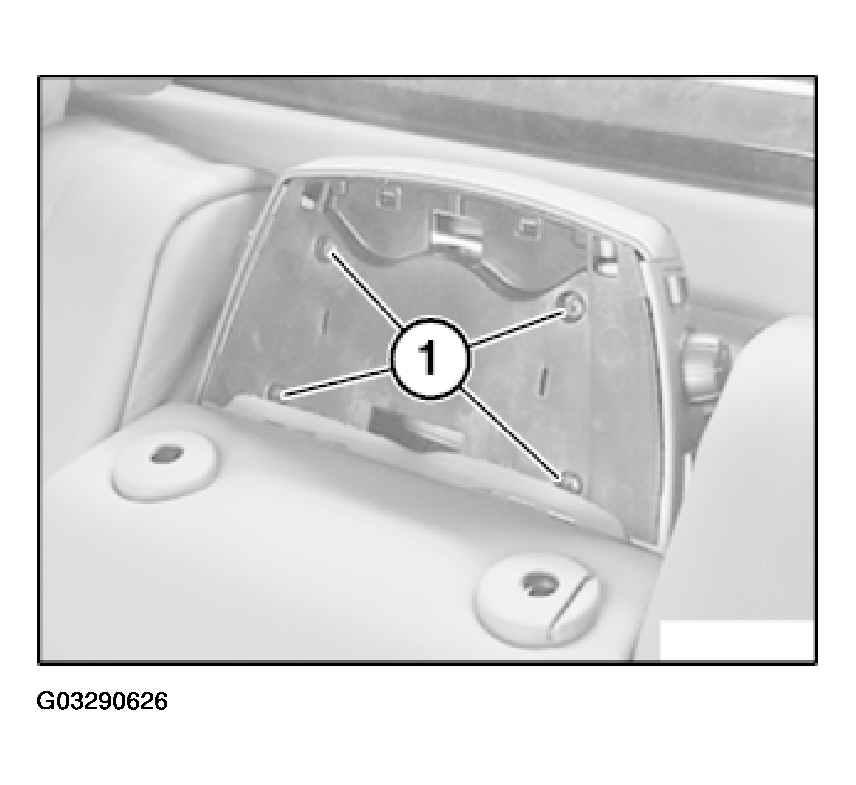

Release screws (1).

Fig 2: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

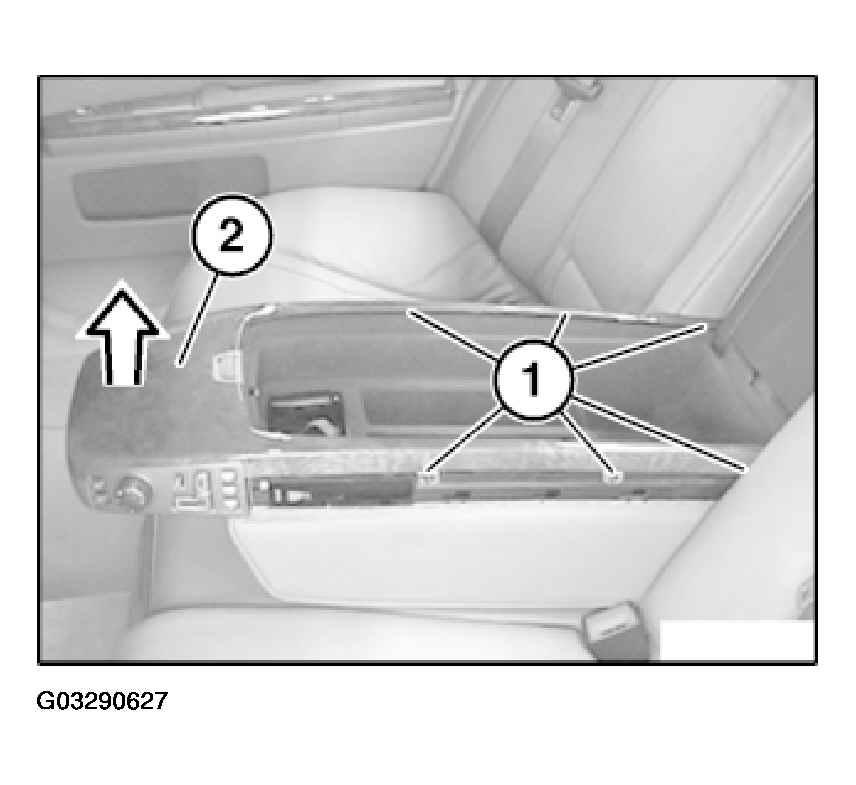

Release screws (1) and remove wood trim on center armrest (2) in direction of arrow.

Fig 3: Removing Wood Trim On Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

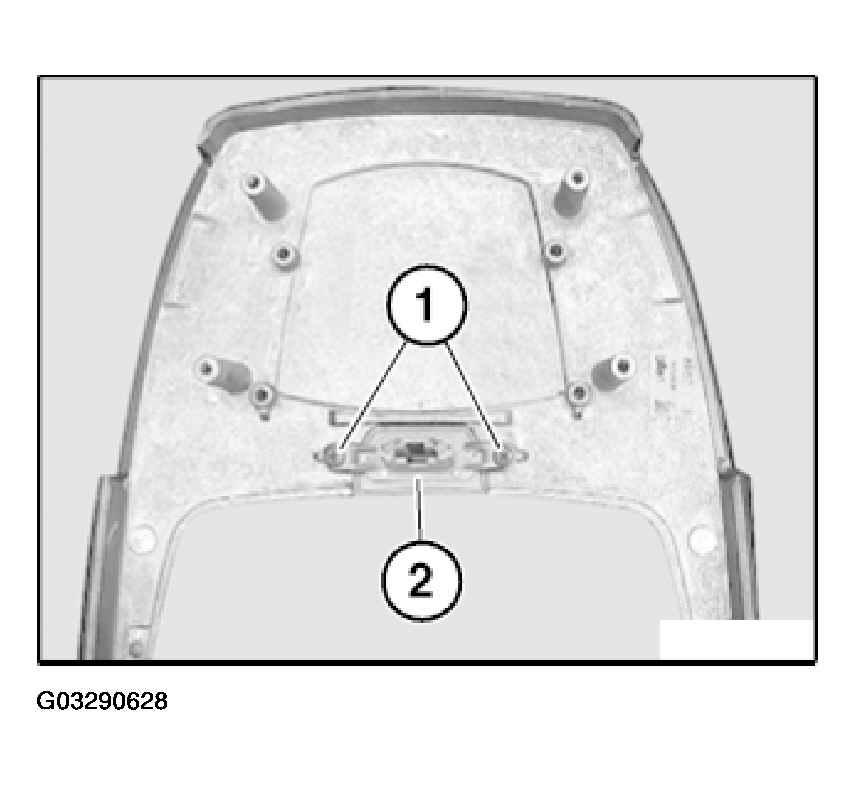

Release screw (1) and remove lock (2).

Fig 4: Removing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove rear controller. Refer to 61 31 196 REMOVING AND INSTALLING (REPLACING) REAR CONTROLLER .
