52 25 038 Removing and installing/replacing seat frame on left or right rear seat

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

Remove rear seat. Refer to 52 25 010 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR SEAT .

Release screws (1).

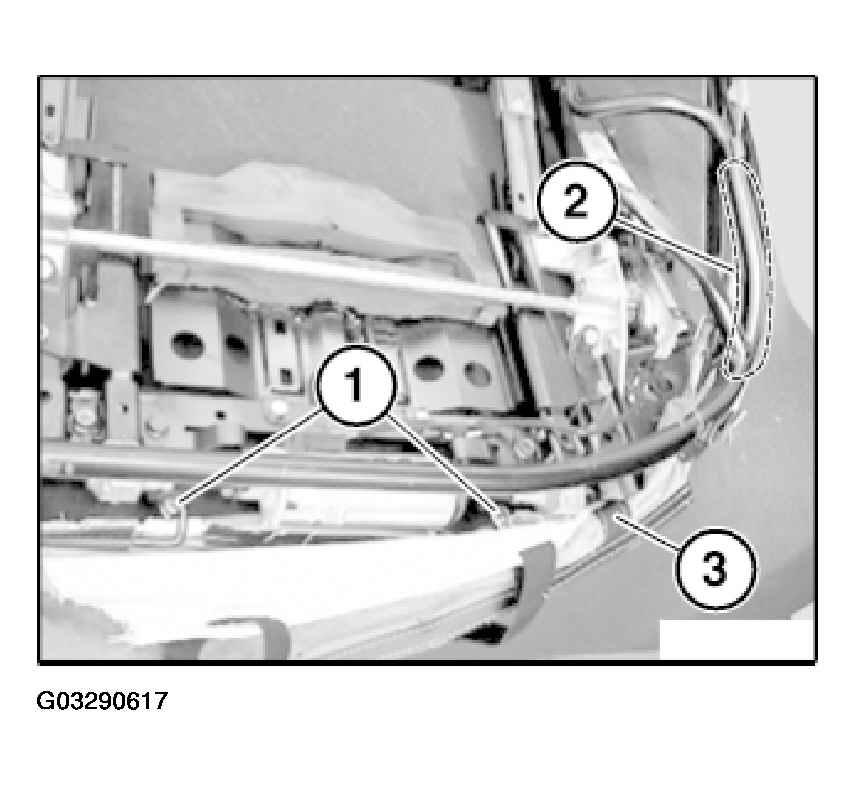

Fig 1: Removing Screws, Retainers And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release retainers in area (2).

Installation:

Bend new retainers closed with pliers 52 0 050.

Remove cover (3).

Remove drive (1) and valve block (2).

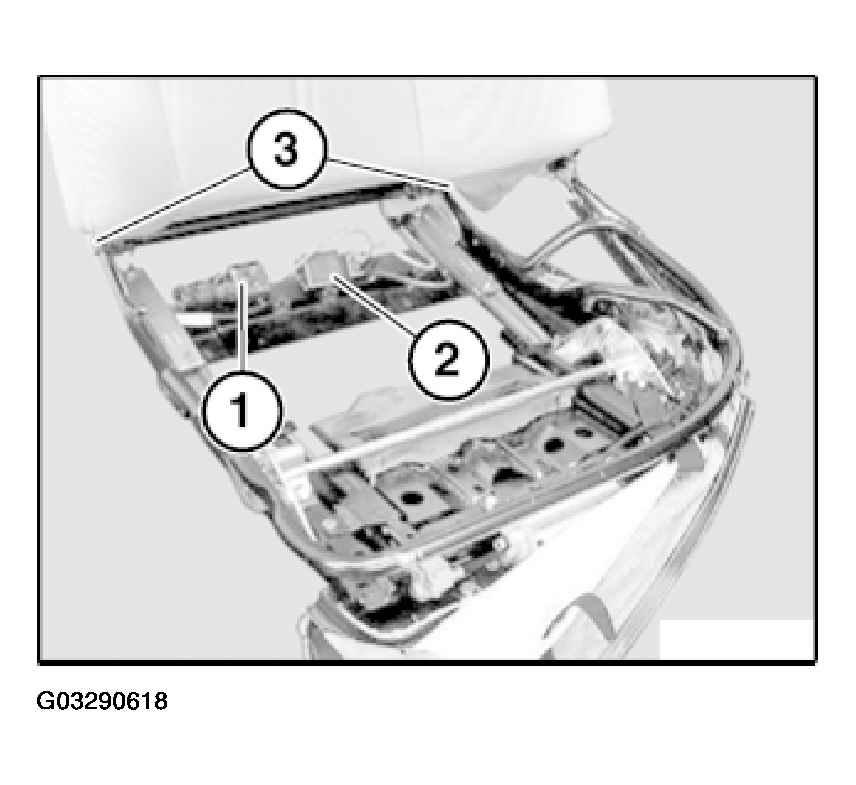

Fig 2: Removing Drive And Valve Block

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3) and remove backrest.

Installation:

Tightening torque, 52 25 3AZ. Refer to SEATS - TIGHTENING TORQUES .

NOTE: The new seat frame part contains all the drives.
