52 25 018 Removing and installing/replacing four-bar lever on left or right rear seat backrest

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear head restraint. Refer to 52 25 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT .
Remove trim for armrest at rear. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

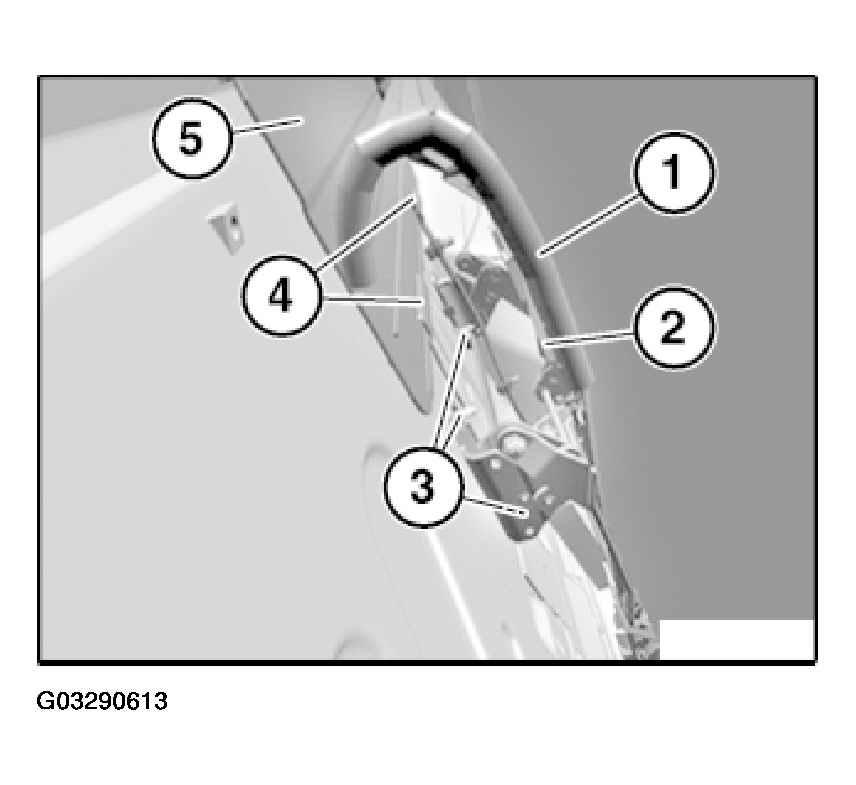

Remove cover (1) upwards out of guide (2).

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover (1) from Velcro-type fastener (5), pull out of guide (4) and lift out completely.

Release nuts (3).

Installation:

Insert nuts (3) with Loctite.

Tightening torque, 52 25 1AZ. Refer to SEATS - TIGHTENING TORQUES .

NOTE: Backrest is secured with three nuts to body (nut at top/outside is not fitted as standard).

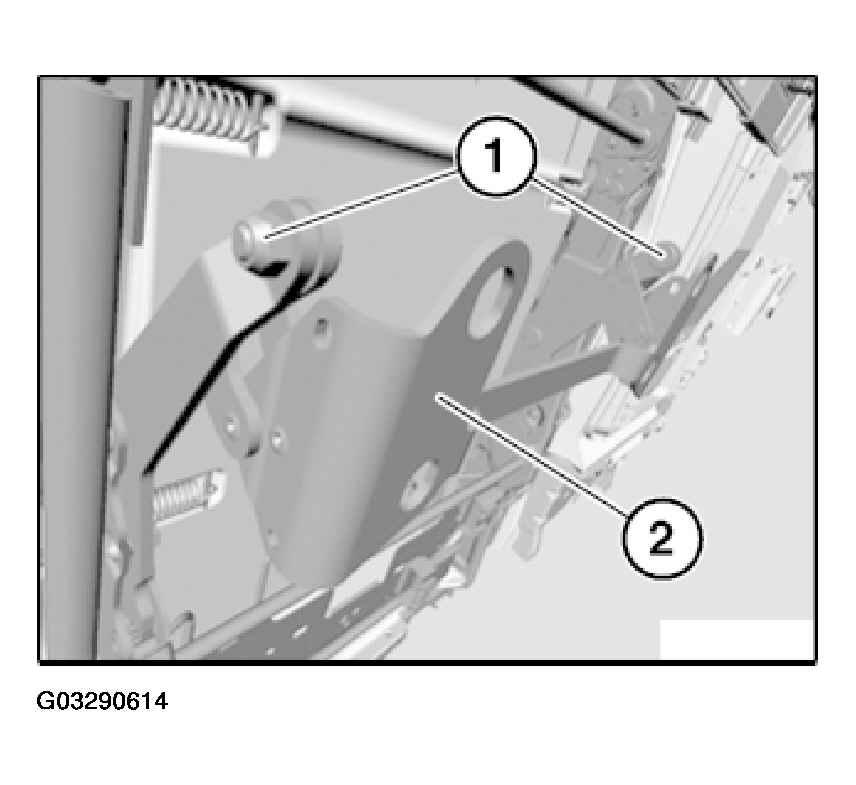

Release screws (1) and remove four-bar lever (2).

Fig 2: Removing Four-Bar Lever

Courtesy of BMW OF NORTH AMERICA, INC.
