52 24 532 Replacing lower armrest section for rear seat backrest (normal)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear center head restraint. Refer to 52 24 388 REMOVING AND INSTALLING/REPLACING REAR MIDDLE HEAD RESTRAINT (NORMAL) .
Remove armrest for rear seat backrest. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

Drive through pin (1) towards outside.

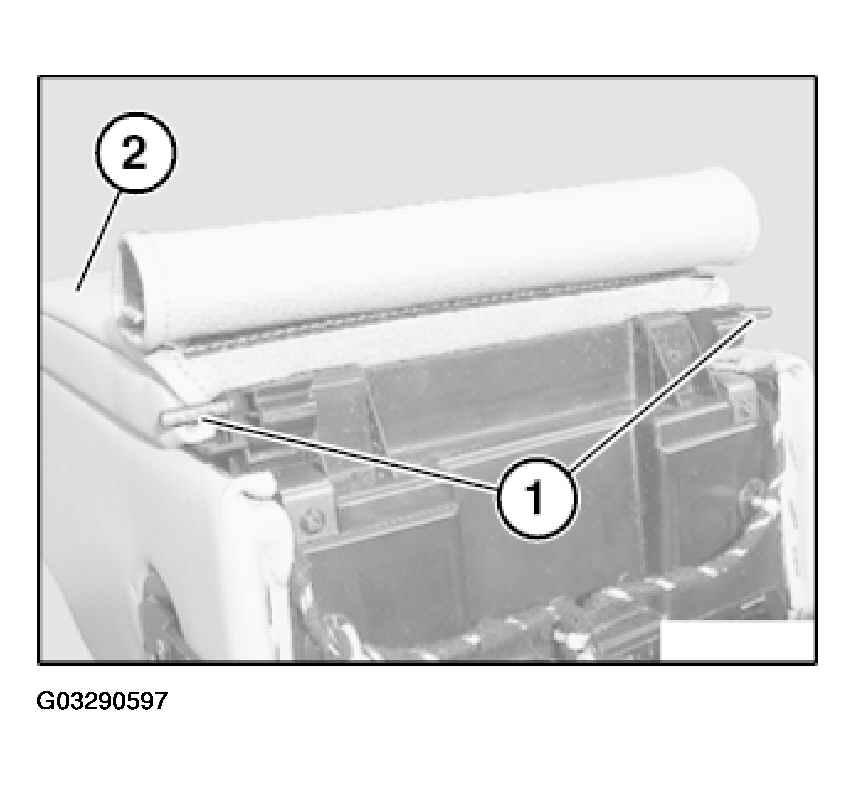

Fig 1: Removing Upper Armrest Section

G03290597

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up upper armrest section (2) and remove towards top.

Unclip cover (1) towards top and remove.

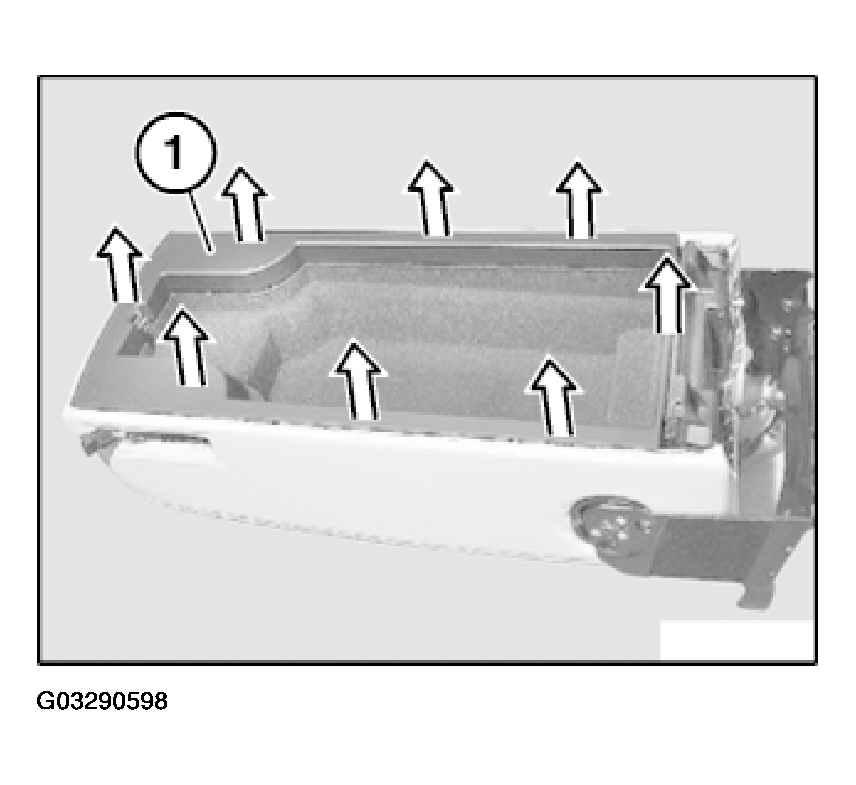

Fig 2: Removing Cover

G03290598

Courtesy of BMW OF NORTH AMERICA, INC.

Gently raise frame (1) on left and right with assembly wedge (2).

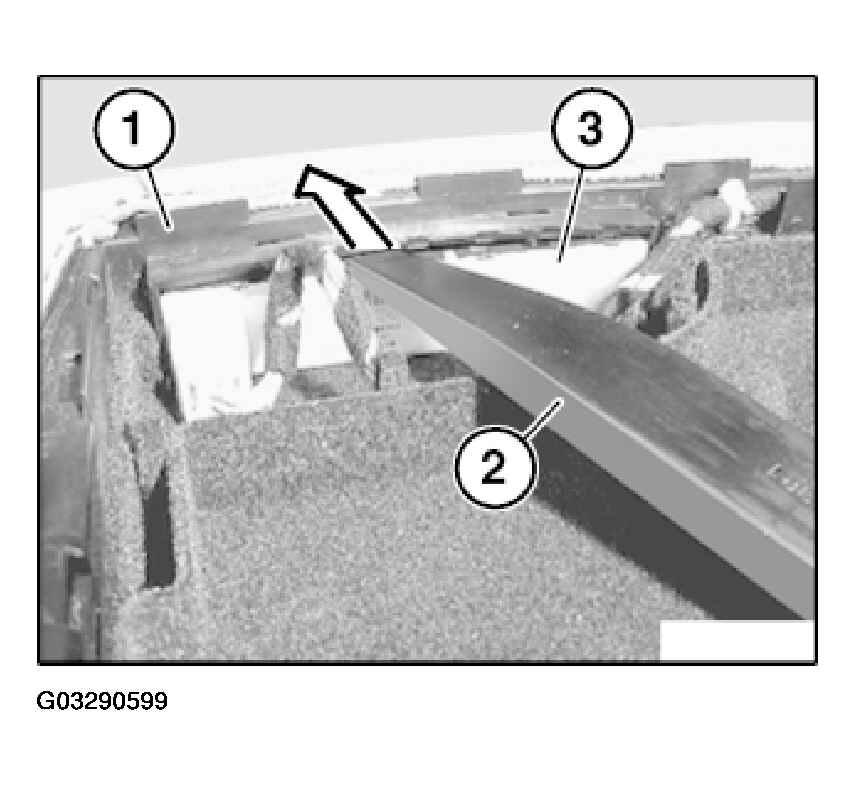

Fig 3: Removing Switch Unit

G03290599

Courtesy of BMW OF NORTH AMERICA, INC.

Press switch unit (3) on left and right from inside of center armrest outwards.

Disconnect plug connection behind and remove switch unit (3) on left and right.

Unclip wiring harness (1) at designated areas, feed out and remove.

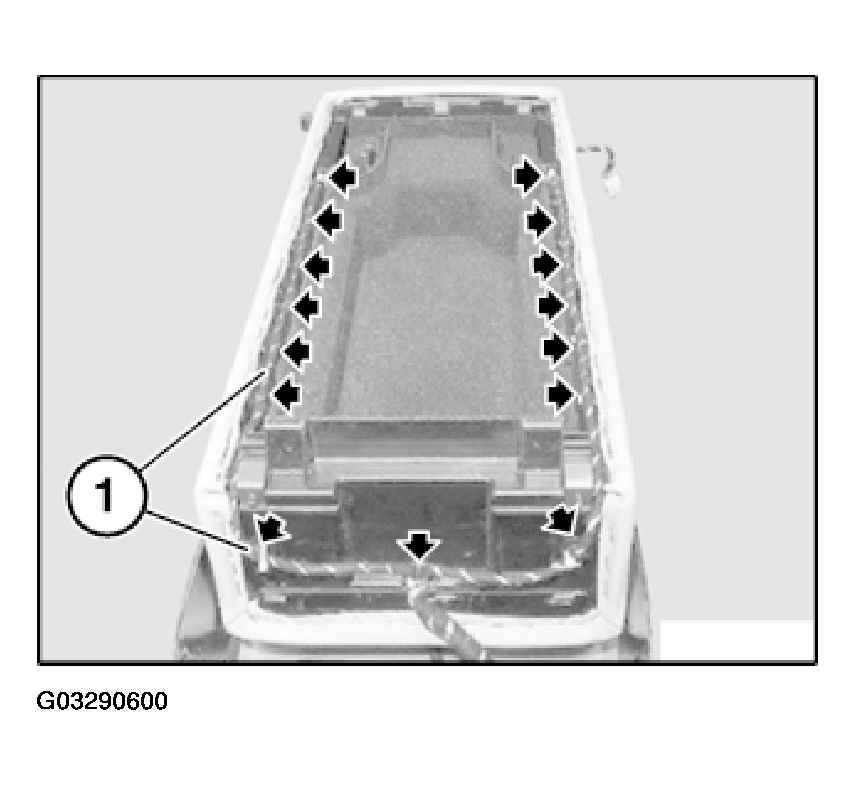

Fig 4: Removing Wiring Harness

G03290600

Courtesy of BMW OF NORTH AMERICA, INC.

Release retainer (1).

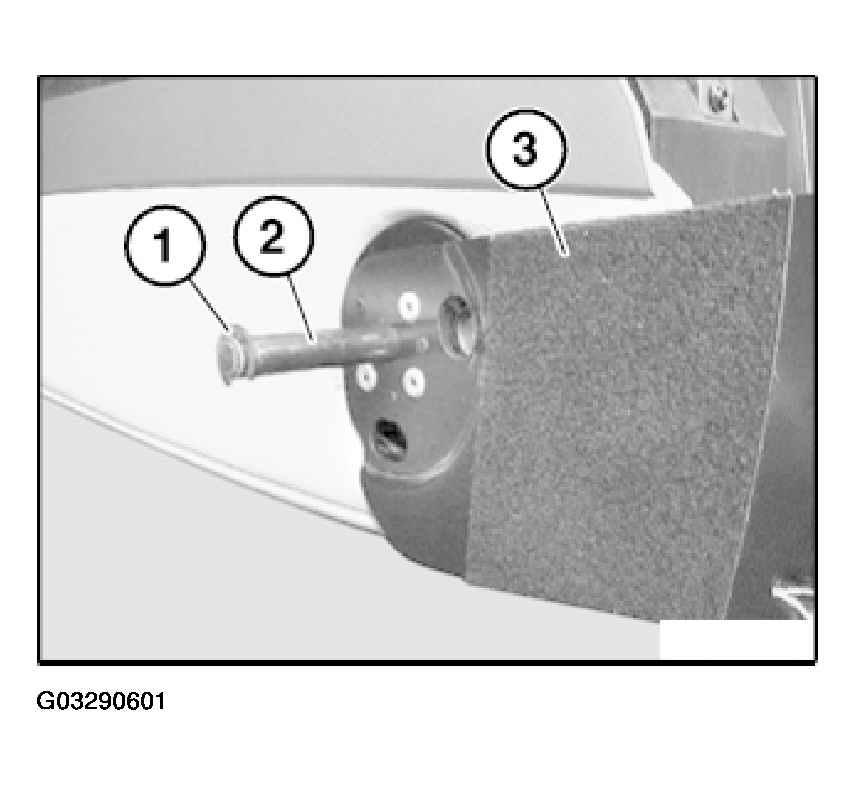

Fig 5: Removing Retainer And Shaft

G03290601

Courtesy of BMW OF NORTH AMERICA, INC.

Remove shaft (2).

Bend open holder (3) on left and right and remove.

Installation:

When installing holder (3), do not damage lower armrest section.
