52 14 385 Replacing gas cartridge for active head restraint on left or right front seat
WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe safety regulations for handling AIRBAG modules and pyrotechnical seatbelt tensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side AIRBAG, resulting in injuries.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side AIRBAG, resulting in injuries.
Switch off ignition!
Necessary preliminary tasks:
- Remove head restraint. Refer to 52 17 390 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINT (COMFORT) .
- Remove rear panel on front seat backrest. Refer to 52 14 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL / ELECTRIC) and 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .
Disconnect plug connection on gas cartridge.

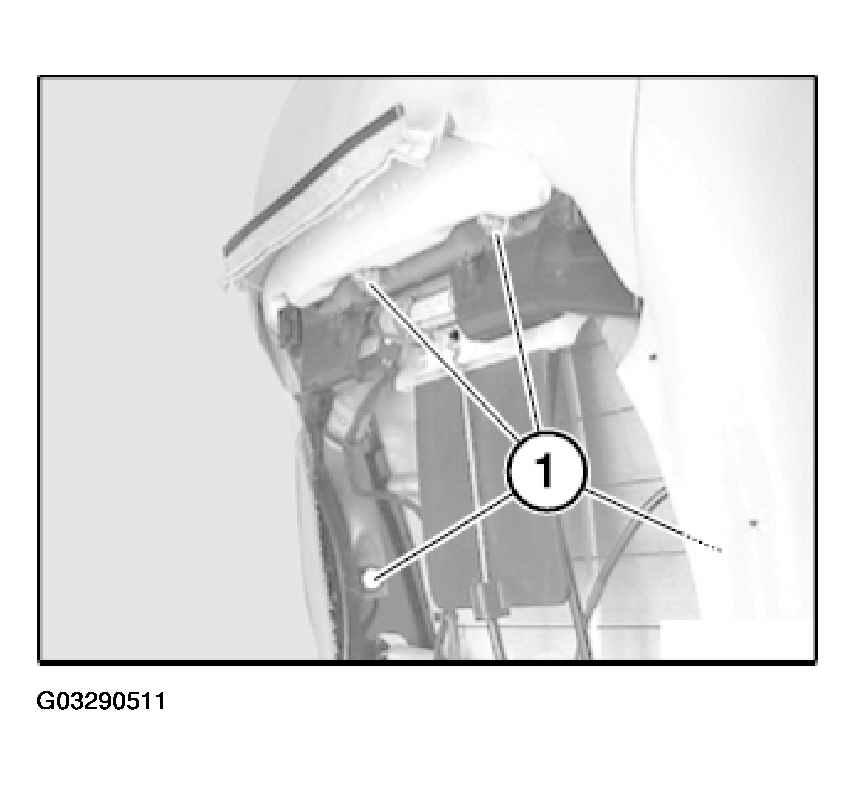

Detach retaining points (1).
Slide active head restraint carrier downwards.

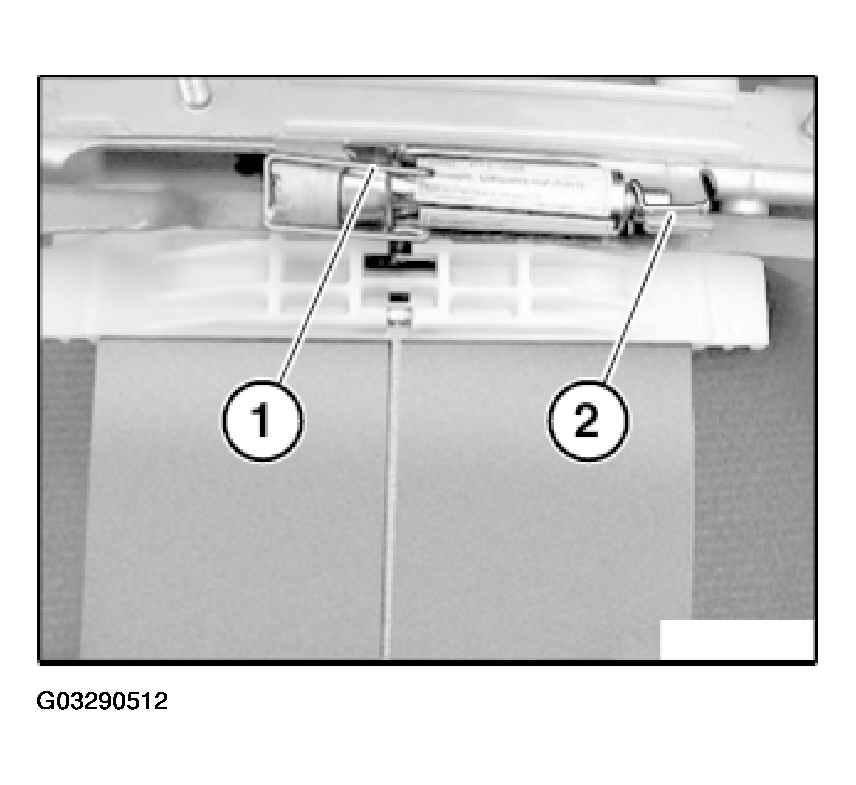

Release springs (1) and (2).

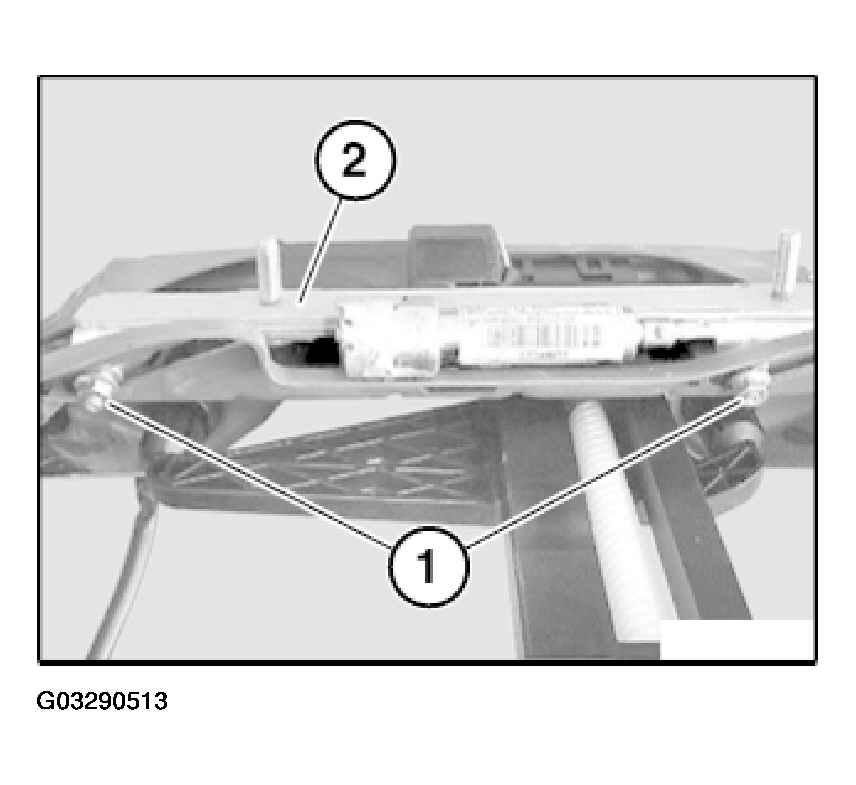

Release screws (1).
Remove gas cartridge complete with holder (2).

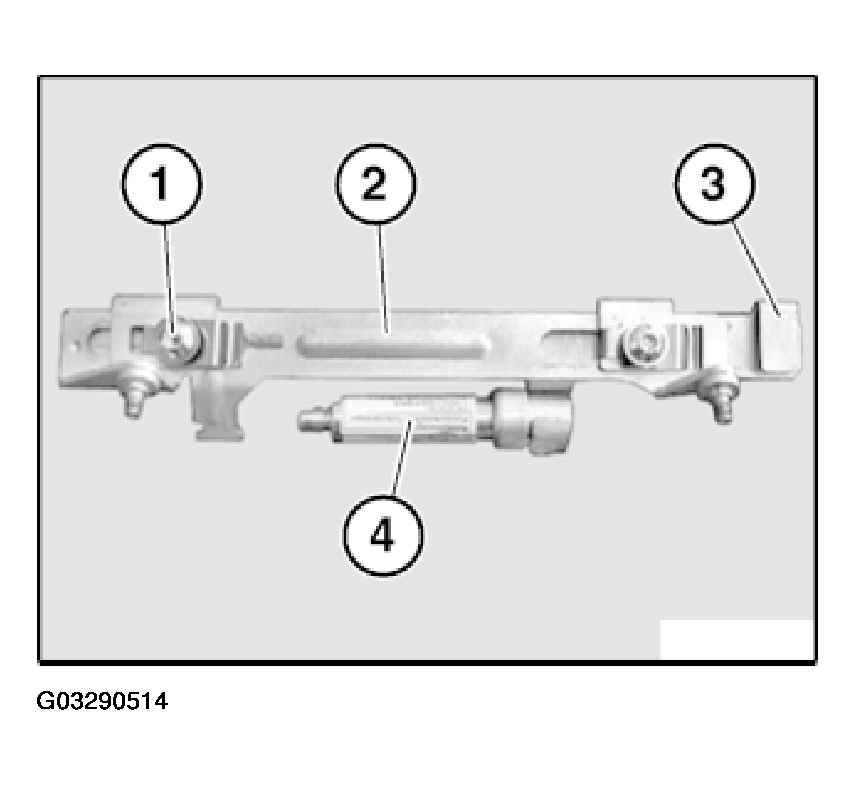

Release screws (1) on left and right.
Installation:
Insert screws (1) with Loctite.
Tightening torque 52 10 18AZ. Refer to SEATS - TIGHTENING TORQUES .
Slide top rail (3) off bottom rail (2).
Remove gas cartridge (4).
Installation:

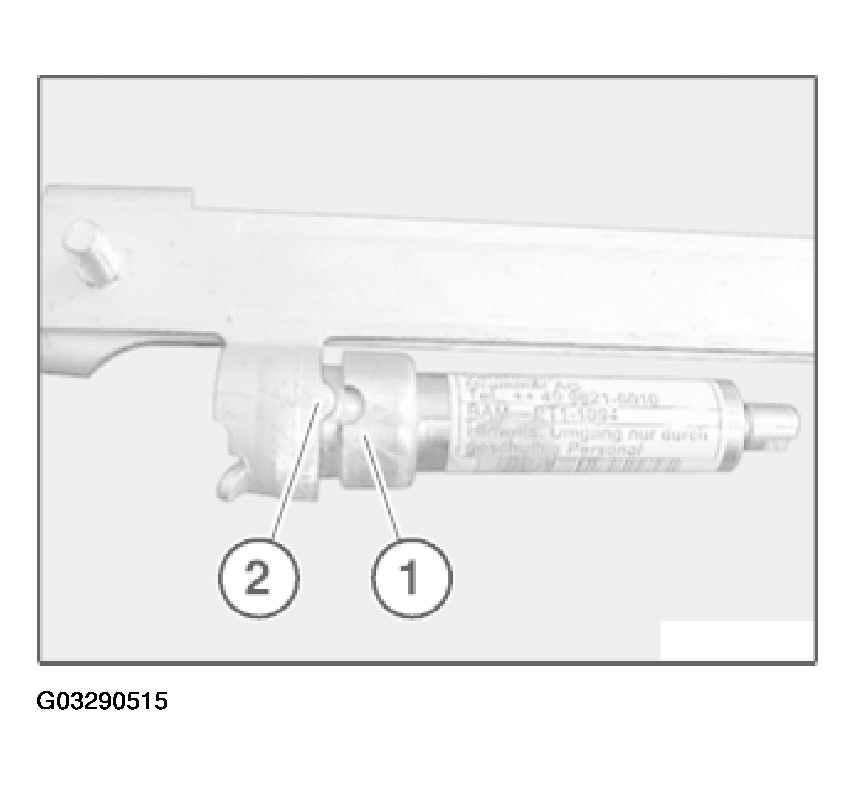

Gas cartridge (1) is secured in holder by guide lug (2).
Procedure after triggered active head restraint:
- Push head restraint back into original position.
- Insert new gas cartridge.
NOTE:
The gas cartridge may be replaced up to 5 times.
