52 17 390 Removing and installing/replacing front left or right head restraint (comfort)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Move headrest up as far as possible.

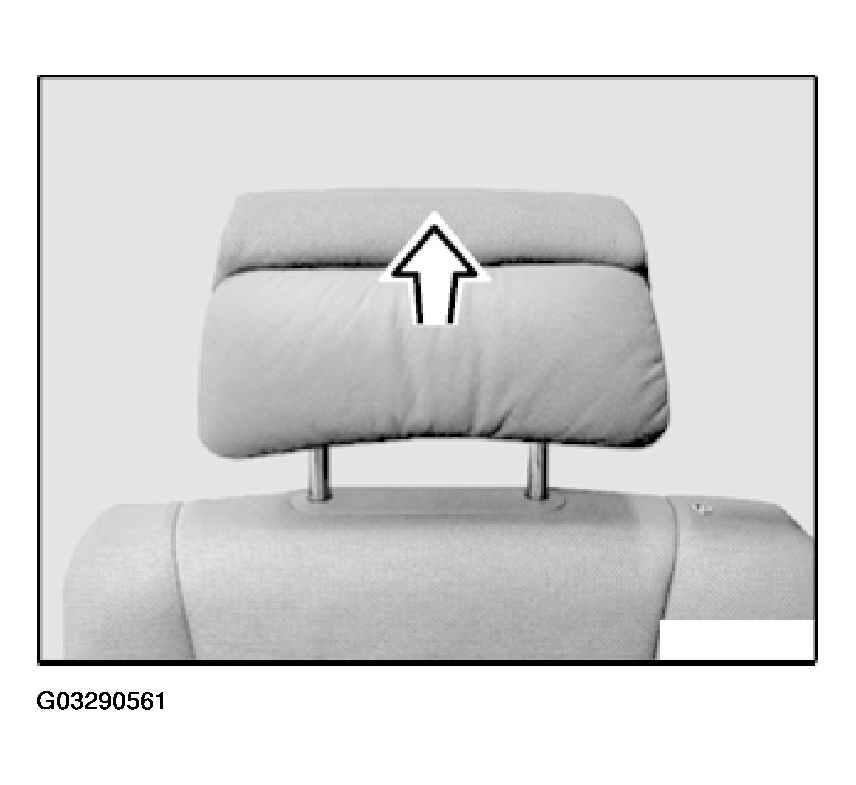

Fig 1: Identifying Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out forcefully.

Installation:

Position adjustment drive briefly before upper stop.

Press in head restraint until it clicks audibly into place (on right and left).
