52 14 020 Removing and installing/replacing seat frame on left or right front seat (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)
Remove backrest frame, refer to 52 14 030 REMOVING AND INSTALLING/REPLACING BACKREST FRAME ON LEFT OR RIGHT FRONT SEAT
Remove both seat rails on front seat, refer to 52 14 010 REMOVING AND INSTALLING/REPLACING BOTH SEAT RAILS ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)
Remove seat cover for front seat, refer to 52 14 400 REPLACING SEAT COVER FOR LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)

Release fastening elements (1) on left and right.

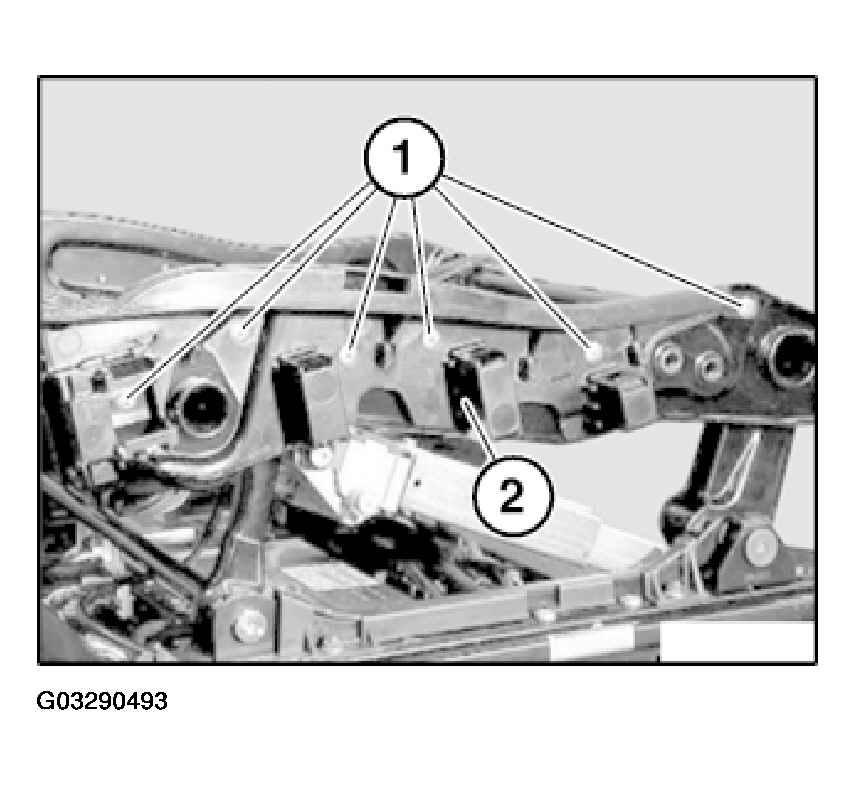

Fig 1: Locating Fastening Elements And Component

Courtesy of BMW OF NORTH AMERICA, INC.

Remove component (2) on left and right.

Remove complete seat wiring harness.

If necessary, remove drive for active seat.

NOTE: The new seat frame part contains all the drives.
