52 14 040 Removing and installing/replacing outer cover on front left or right seat (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Detach cover from retaining clip (1).

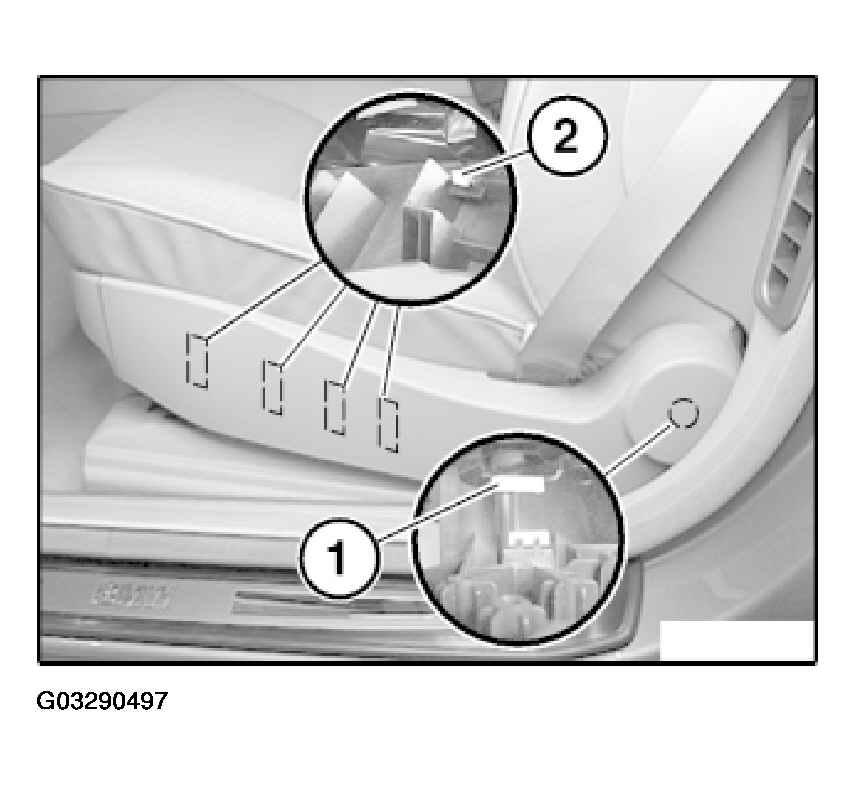

Fig 1: Removing Cover From Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock tabs (2) towards bottom.

Raise seat cover from below and remove towards top.

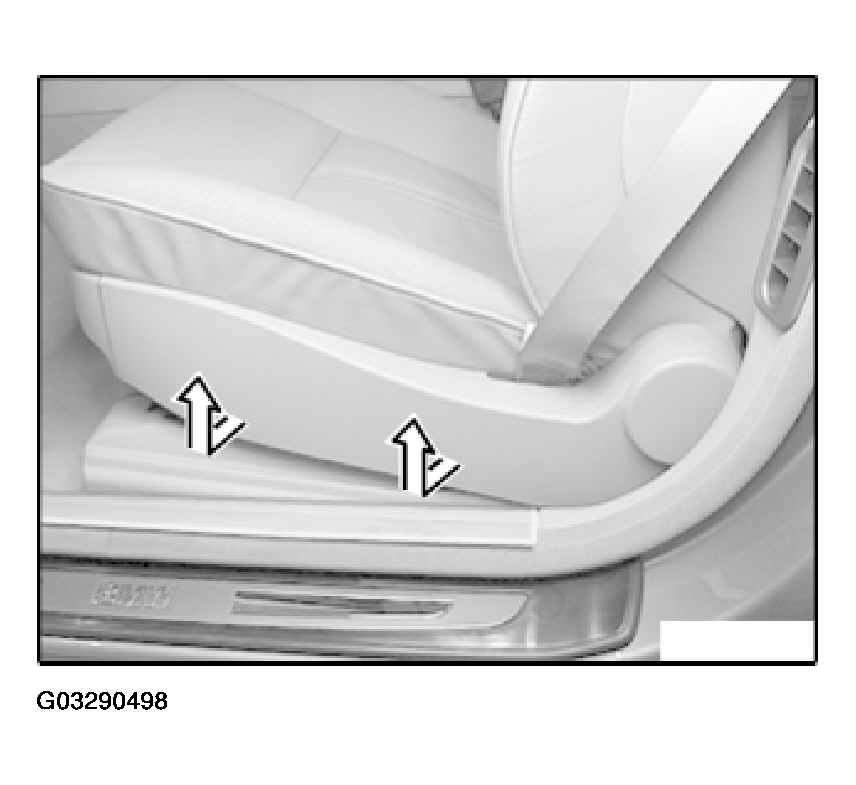

Fig 2: Removing Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.
