52 17 420 Replacing padding for left or right front seat backrest (comfort)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This task is identical to replacing backrest cover. Refer to 52 17 405 REPLACING BACKREST COVER FOR LEFT OR RIGHT FRONT SEAT (COMFORT) .

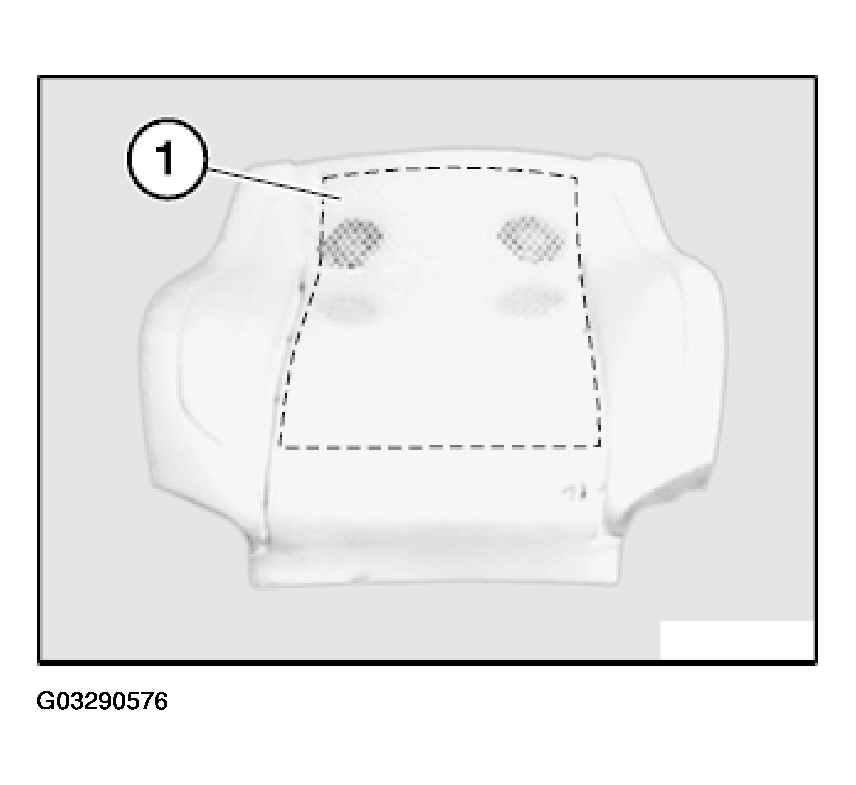

Remove dividing net (1) towards top.

Fig 1: Removing Dividing Net

Courtesy of BMW OF NORTH AMERICA, INC.

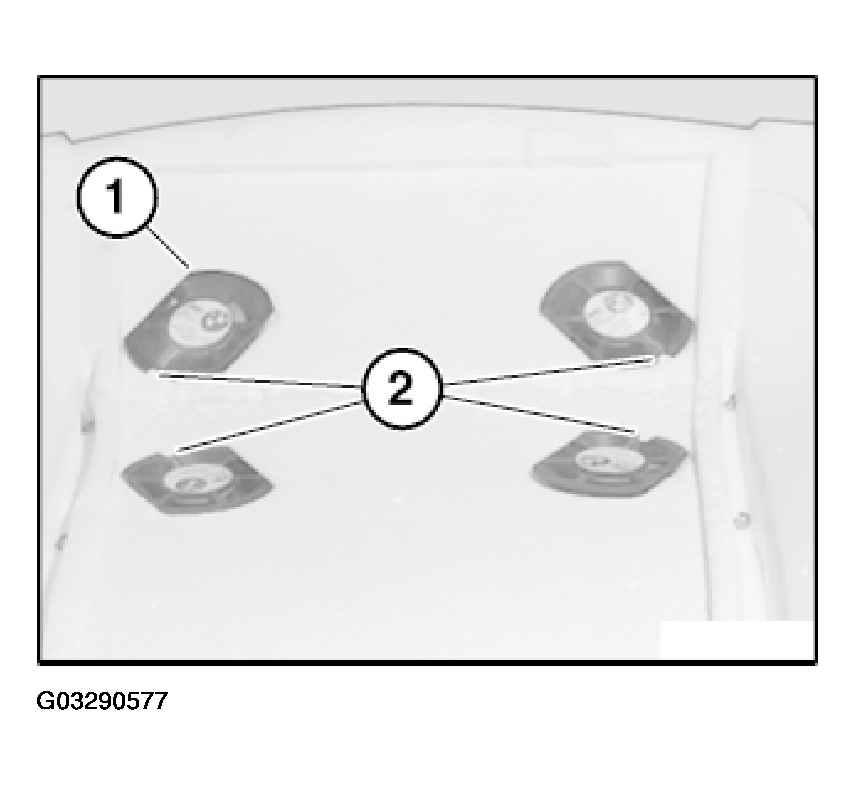

Remove fan (1) towards top.

Fig 2: Removing Fan

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure fans have correct cable routing (2) (cables point to each other).
