52 17 380 Removing and installing/replacing head restraint mount on left or right front seat (comfort)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove head restraint. Refer to 52 17 390 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINT (COMFORT) .
Remove both rear panels on front seat backrest. Refer to 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .

Detach retaining points (1).

Fig 1: Removing Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten cable clip (1).

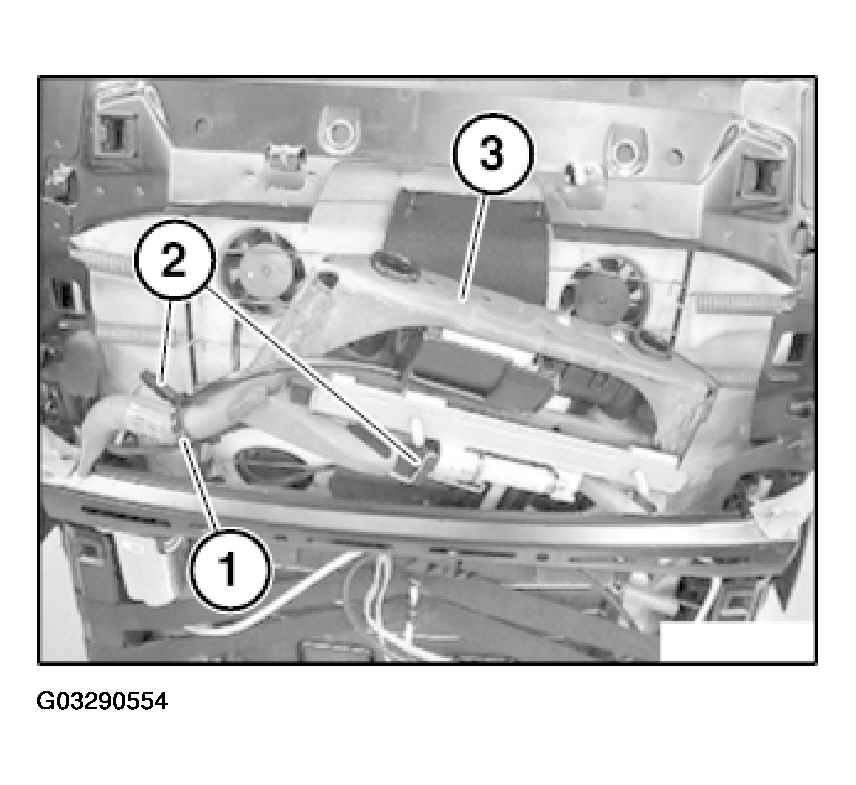

Fig 2: Removing AKS Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (2).

Feed out AKS carrier (3) towards bottom.

Release screws (1).

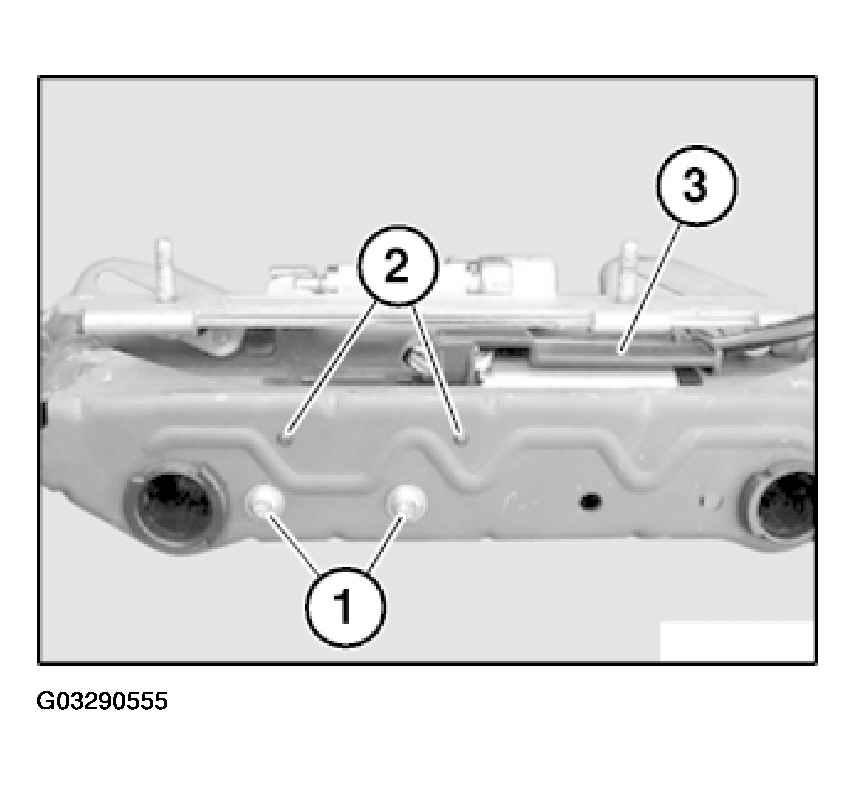

Fig 3: Removing Head Restraint Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide pins (2) of head restraint mount must engage in openings on AKS carrier.

Feed out head restraint mount (3) sideways.
