52 17 035 Removing and installing/replacing gearing for head restraint adjustment

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove shaft for head restraint adjustment, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)

Remove retainer (1) on left and right.

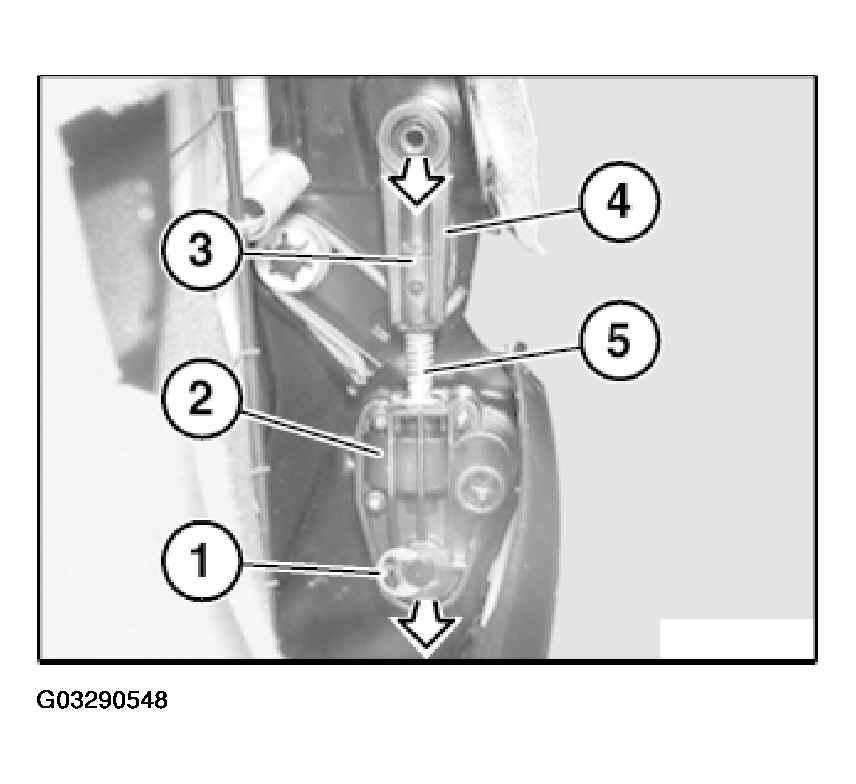

Fig 1: Removing Retainer & Gearing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gearing (2) on left and right straight towards front.

Installation:

To ensure identical adjustment of gearings (2), carry out following work step on both gearings:

Unscrew component (4) until threaded rod (5) is flush with edge (3).
