51 24 065 Removing and installing/replacing Bowden cable for manual rear lid unlocking (up to 03/2005)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear light, refer to 63 21 186 REMOVING AND INSTALLING/REPLACING REAR LIGHT (ON CENTRE OF REAR LID)
Remove panel for rear lid at bottom, refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID

Detach cover (1) from lock element (2).

NOTE: Illustration shows version without manual rear lid unlocking.

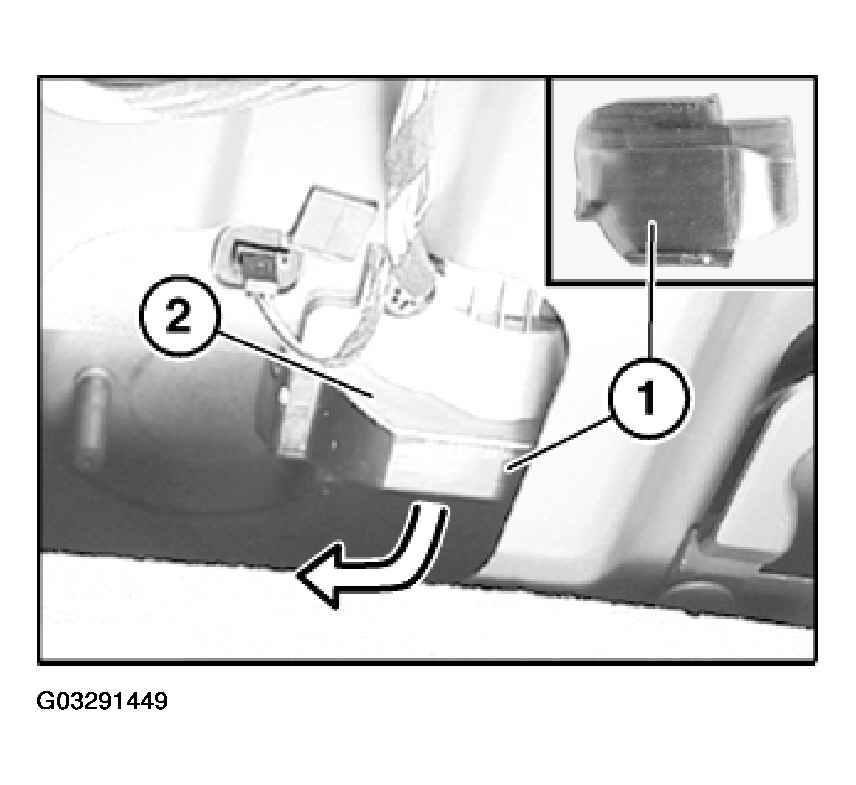

Fig 1: Detaching Cover From Lock Element

G03291449

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out securing plugs (1).

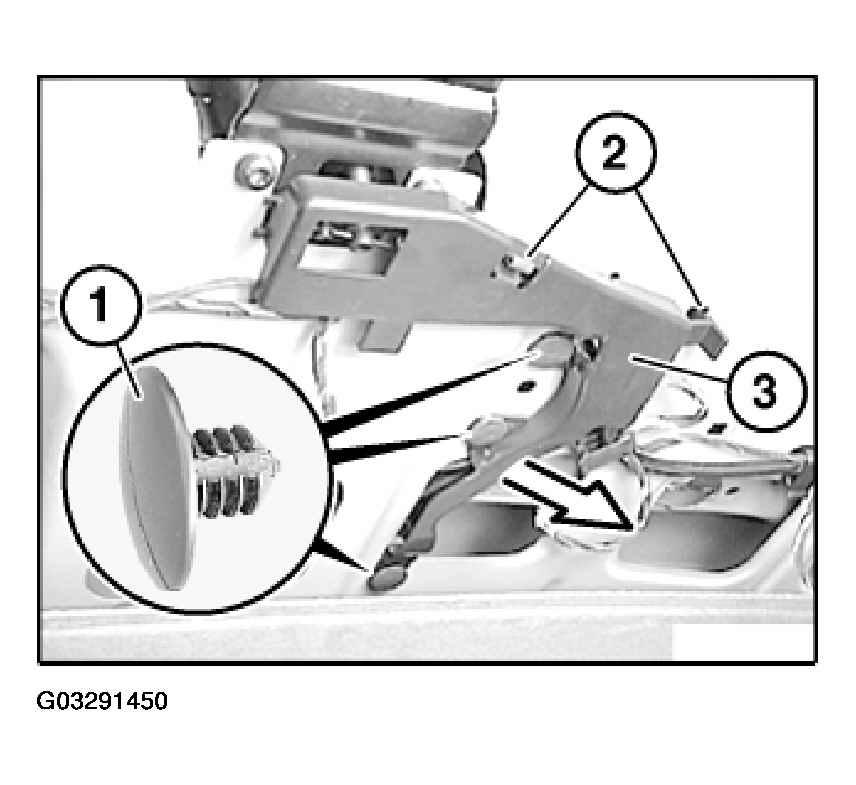

Fig 2: Removing Bowden Cable Guide

G03291450

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out catches (2) and remove Bowden cable guide (3).

Unlock catch (1) and detach Bowden cables (2 and 3) from rear lid lock upper section (5).

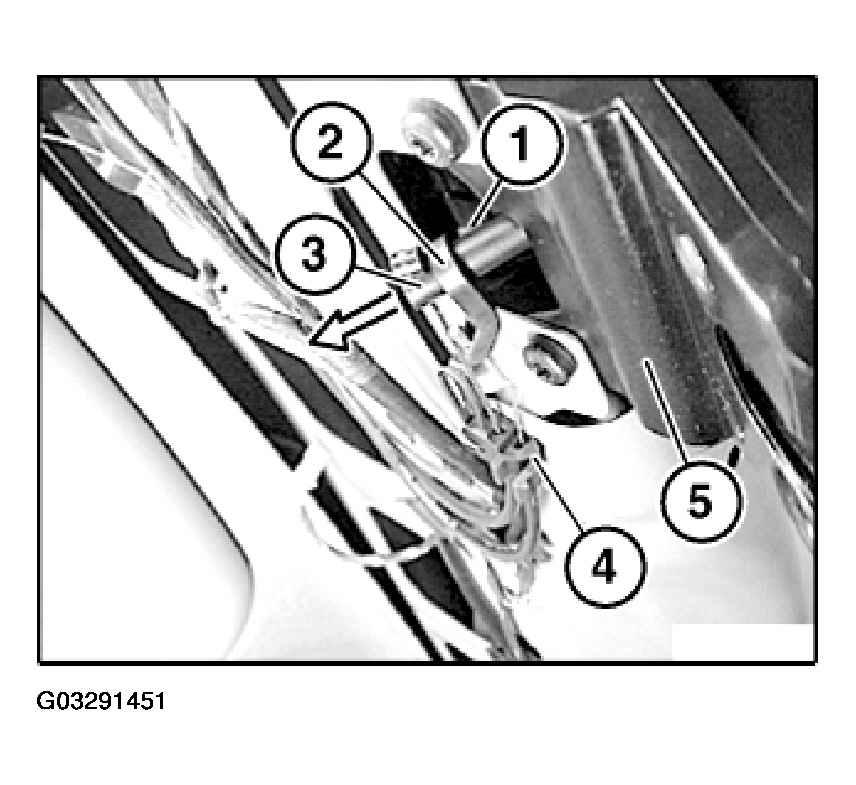

Fig 3: Detaching Bowden Cables

G03291451

Courtesy of BMW OF NORTH AMERICA, INC.

Lever Bowden cable (2) out of guide (4).

Installation:

Bowden cable (2) must be correctly positioned in guide (4).

Release screw (1).

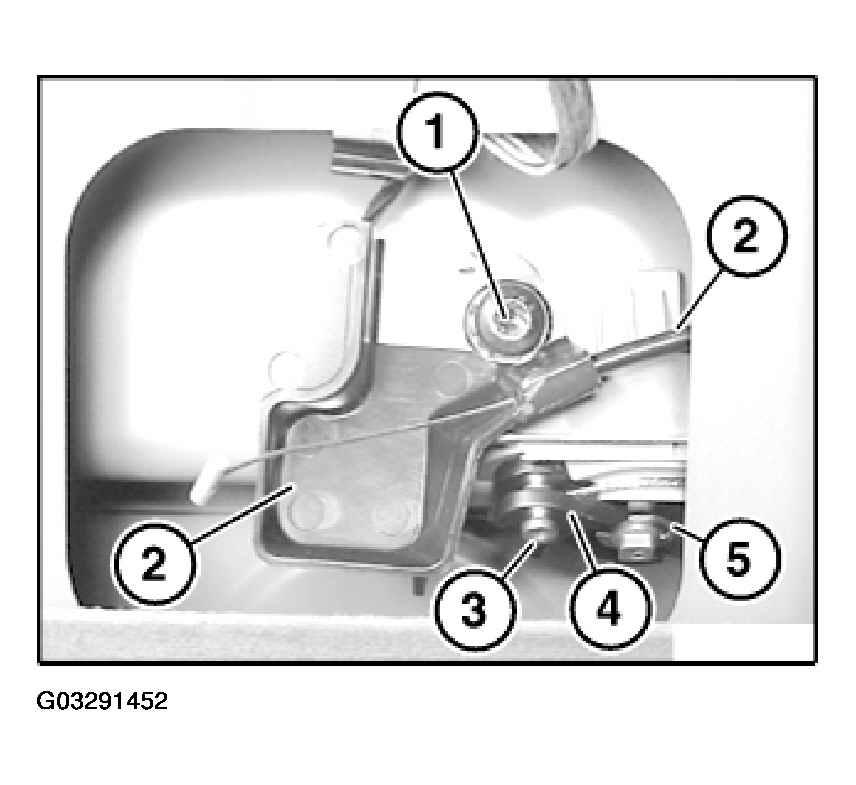

Fig 4: Releasing Screw

G03291452

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out Bowden cable with holder (2) from rear lid.

Installation:

Retainer (5) must be correctly fitted.

Bowden cable (3) and retainer (5) must be correctly fitted on lock element (4).

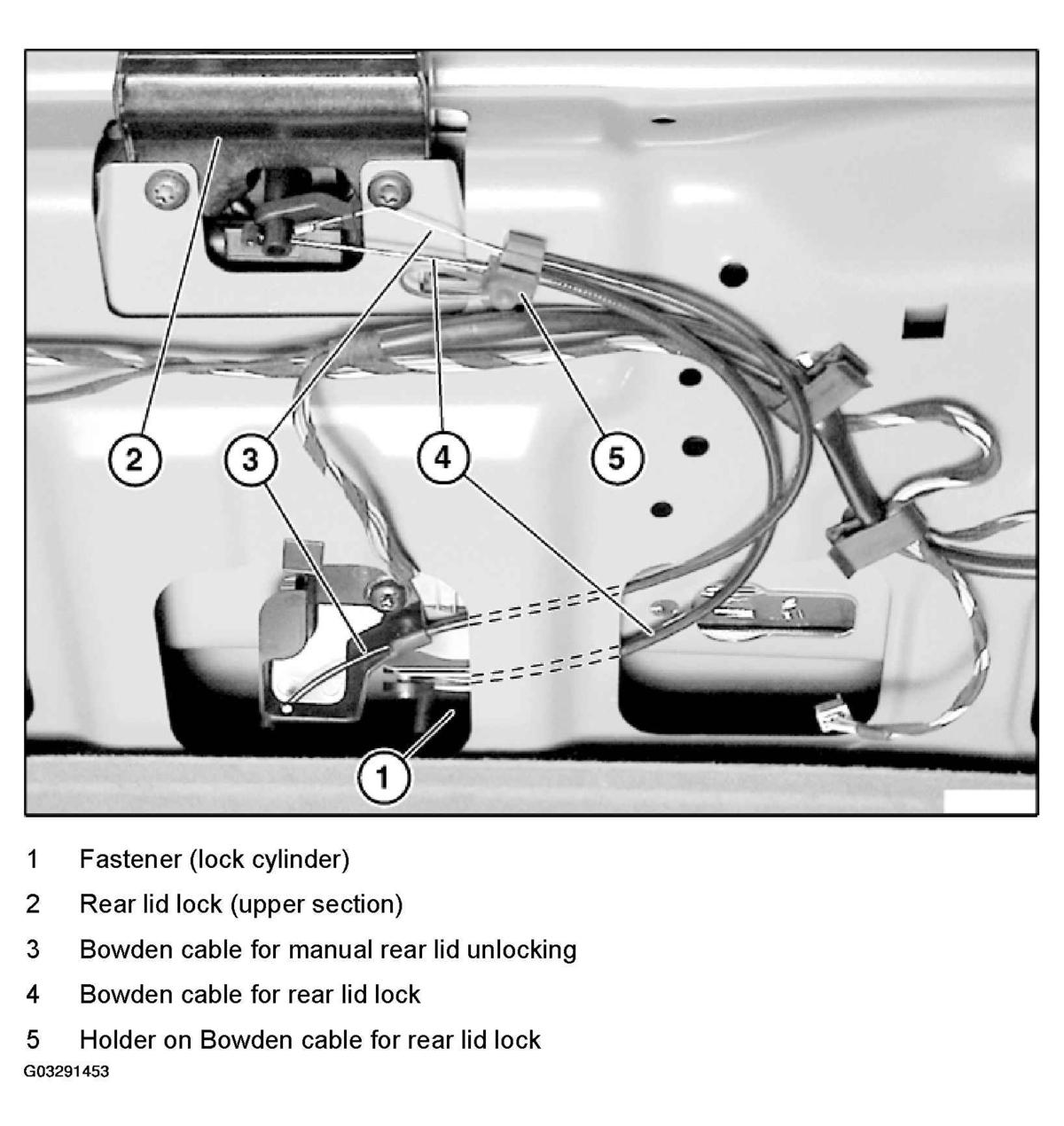

Fig 5: Overview Of Bowden Cables On Rear Lid Lock

G03291453

Courtesy of BMW OF NORTH AMERICA, INC.
