51 13 282 Replacing trim strip on roof frame at left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Necessary preliminary tasks:

Remove trim strip from roof frame, refer to 51 13 280 REMOVING AND INSTALLING TRIM STRIP ON ROOF FRAME AT LEFT OR RIGHT

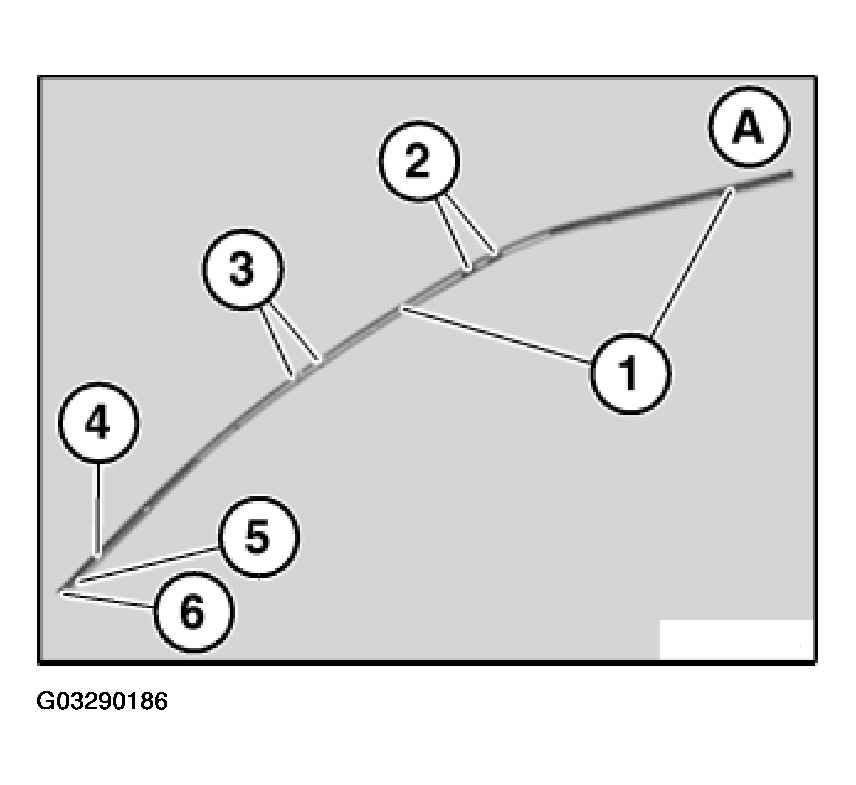

Lever out retainers (1 to 4) from trim strip (6).

A Direction of travel, front

5 Seal

Fig 1: Removing Retainers From Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

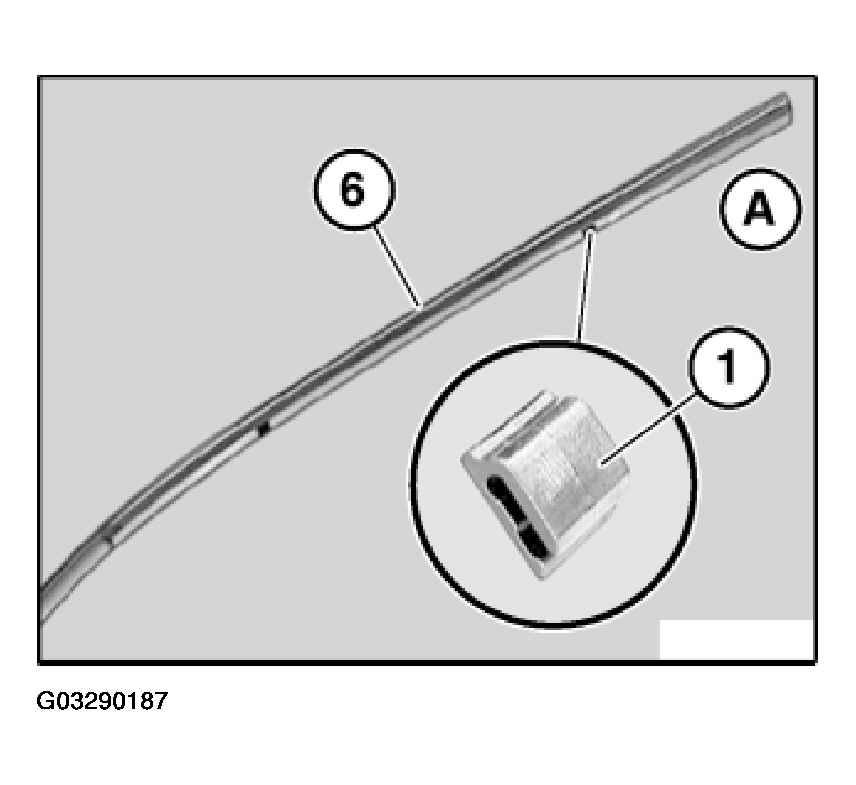

Lever out black retainer (1) from trim strip (6).

Fig 2: Removing Black Retainer From Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip black retainer (1) into bore on trim strip (6).

A Direction of travel, front

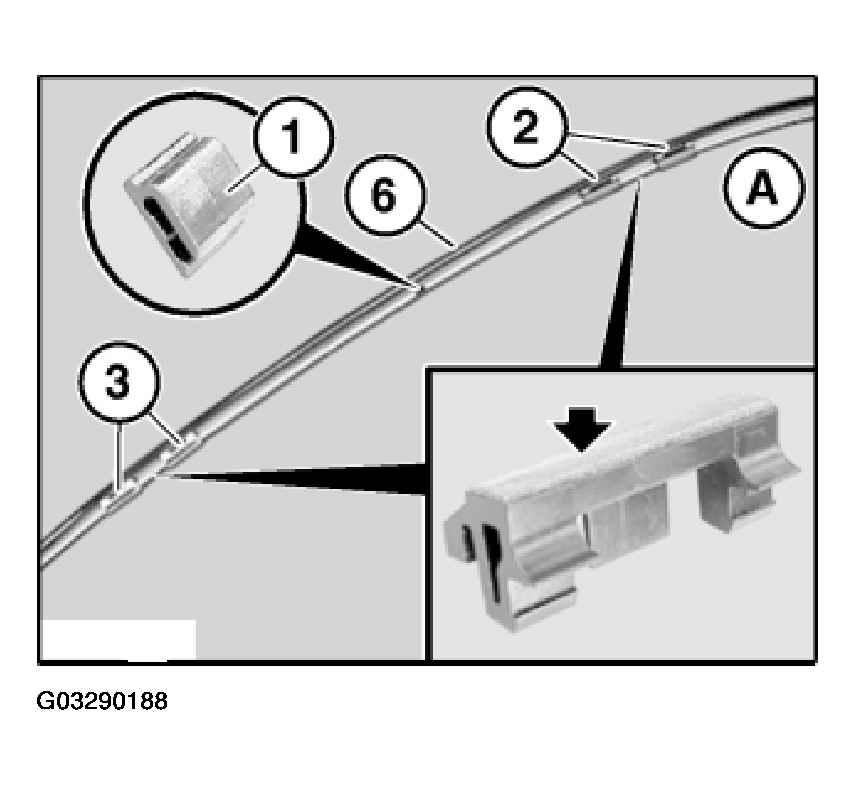

Lever out retainers (1 to 3) from trim strip (6).

Fig 3: Removing Retainer From Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip black retainers (1) into bores on trim strip (6).

A Direction of travel, front

2 Black retainers

3 White retainers (E65), black retainers (E66)

Rubber on retainers (2 and 3) must not be damaged or missing. For position of retainers (2 and 3), refer to next work step.

Installation:

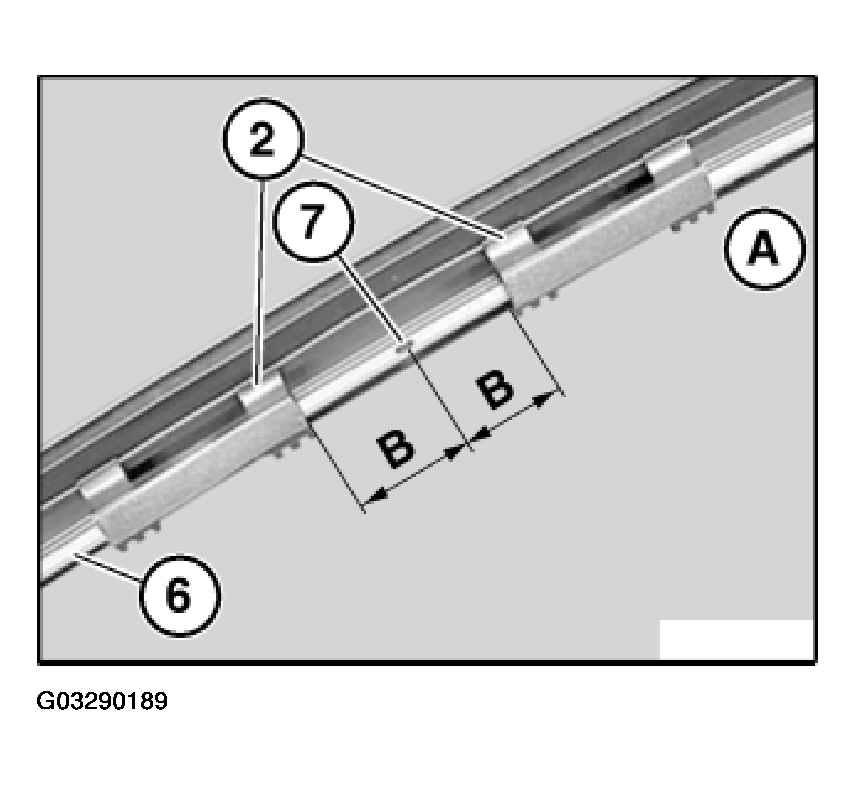

Attach retainers (2 and 3) at distance (B) from hole (7).

Fig 4: Attaching Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

A Direction of travel, front

B = 25 mm

Bore (7) for white retainers (3) is approx. 715 mm further back.

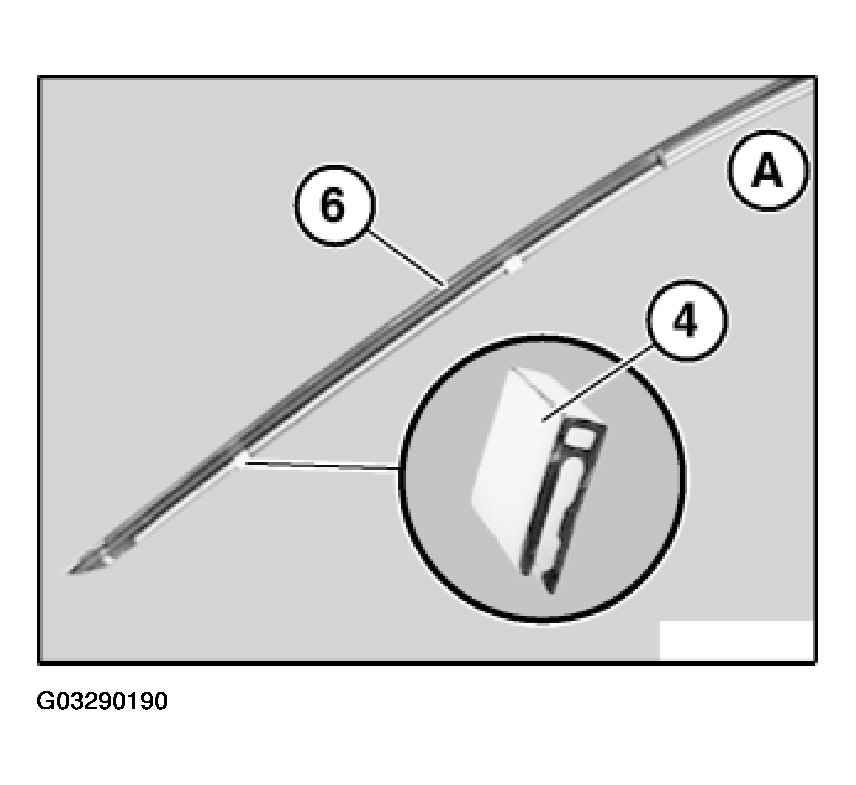

Lever out white retainer (4) from trim strip (6).

Fig 5: Removing White Retainer From Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip white retainer (4) into bore on trim strip (6).

A Direction of travel, front

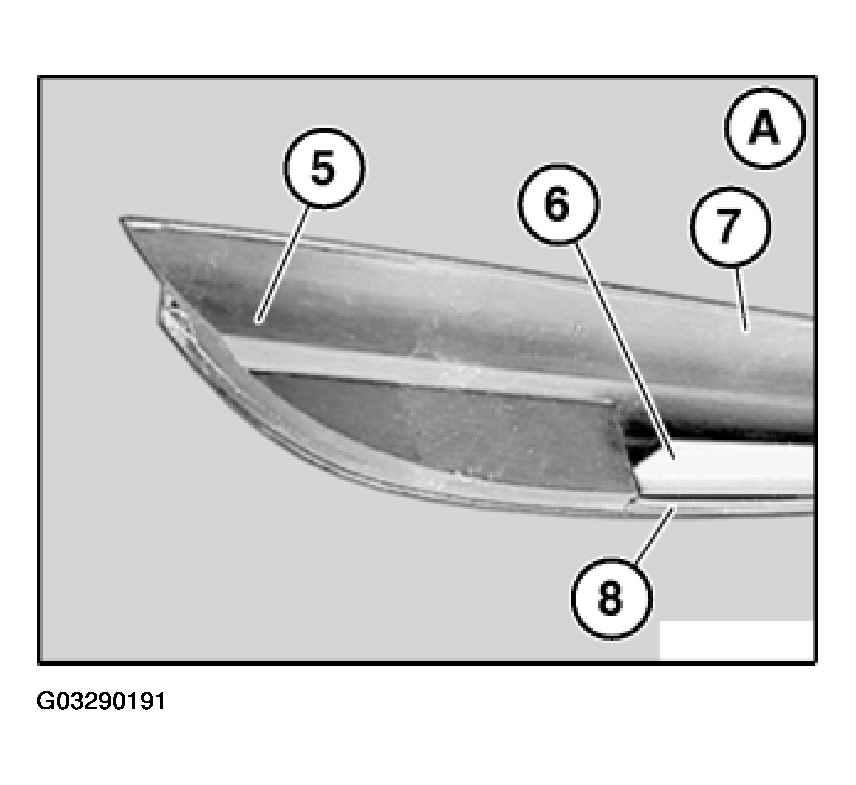

All retainers must be removed in order for seal (5) to be removed.

Fig 6: Removing All Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

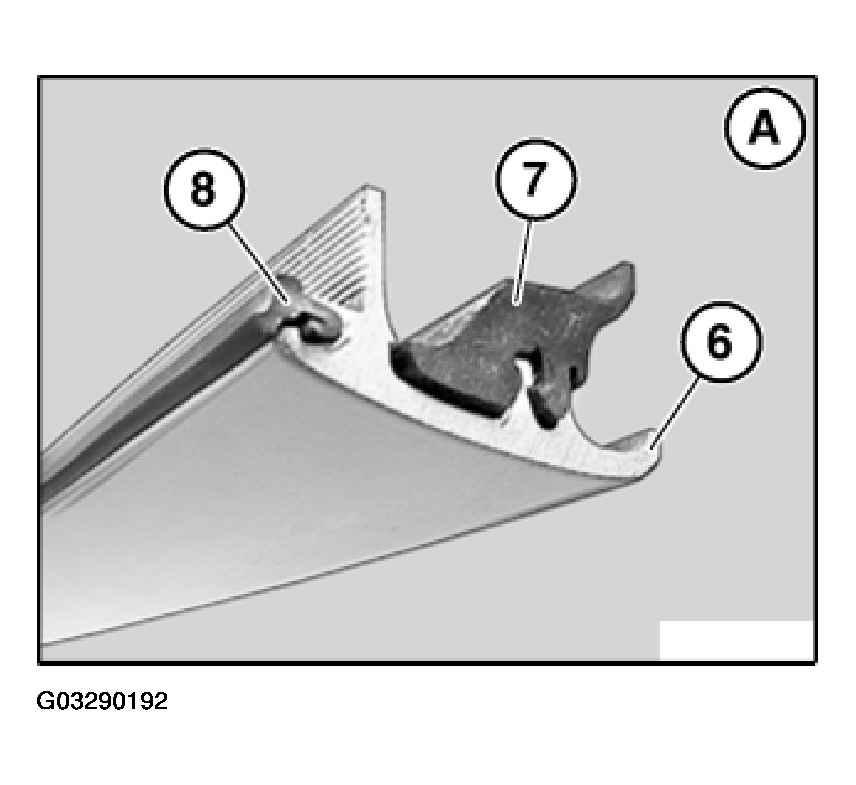

Glue molded part of seal (5) to trim strip (6) with Loctite 454.

Coat remainder of sealing channel of seal (7) with antiseize agent (50 % water / 50 % washing-up liquid).

Fit seal (7) and press into end position with special tool 00 9 321 (fishbone).

Fit seal (8) without antiseize agent in compressed state.

A Direction of travel, front

Installation:

New seals (7 and 8) are longer than trim strip (6).

Fig 7: Compressing Seals Slightly

Courtesy of BMW OF NORTH AMERICA, INC.

After installation, compress seals (7 and 8) slightly.

Cut seals (7 and 8) to length at ends to trim strip (6).

A Direction of travel, front
