51 13 280 Removing and installing trim strip on roof frame at left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Work must be carried out with a second person assisting (risk of damage).

Trim strip must not be bent and seals must rest correctly on windscreen (wind noises).

First lever out trim strip (1) at rear, unclip remainder and pull at front out of seal (3).

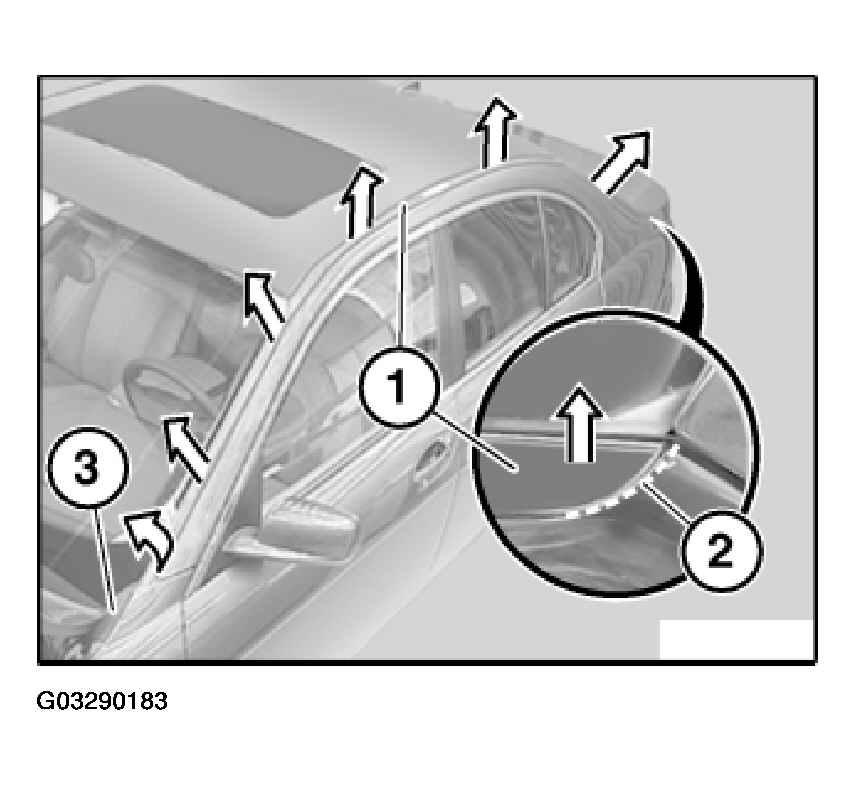

Fig 1: Removing Trim Strip At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

First push trim strip (1) at front into seal (3), clip in at rear flush with edge (2) and then clip in remainder.

IMPORTANT: Replace clips (1 and 2) after each removal.

Installation:

Locks (3 and 4) of clips (1 and 2) must not be damaged.

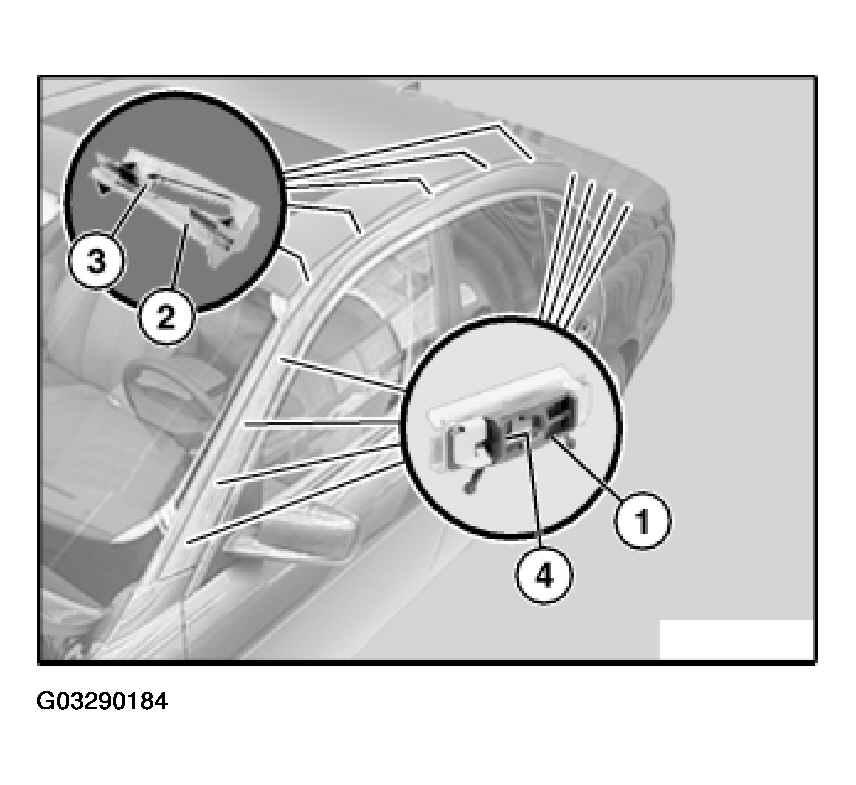

Fig 2: Replacing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For E66, seven clips (2) are fitted.

If necessary, replace faulty clips (1 to 4) or seal (5) of trim strip (6), refer to 51 13 282 REPLACING TRIM STRIP ON ROOF FRAME .

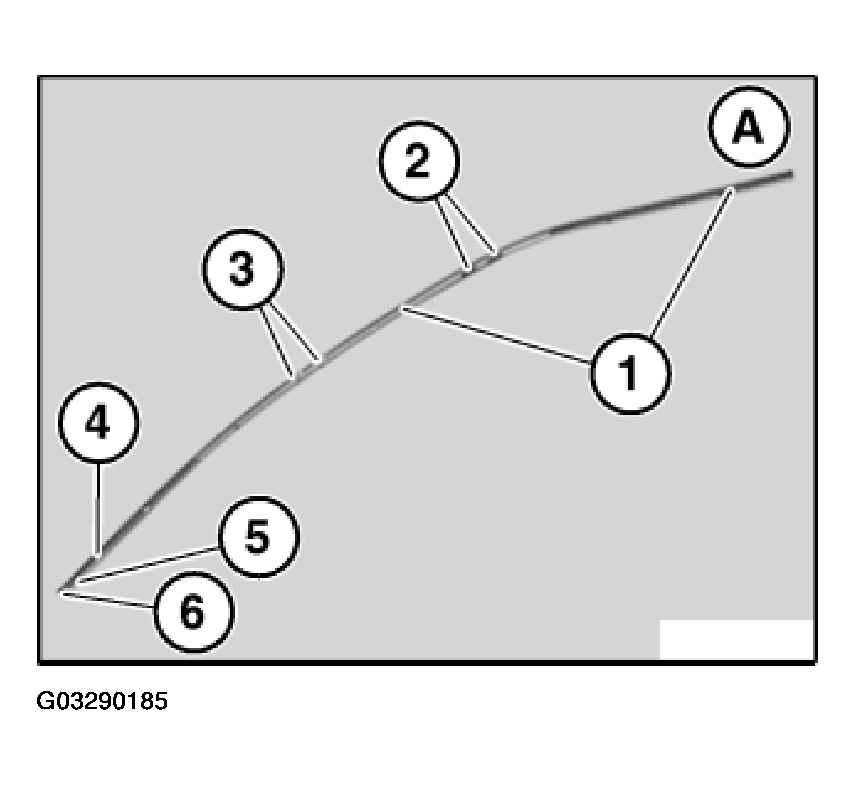

Fig 3: Replacing Faulty Clips

Courtesy of BMW OF NORTH AMERICA, INC.
