51 13 082 Replacing trim grille for heater air inlet

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim grille for heater air inlet, refer to 51 13 081 REMOVING AND INSTALLING TRIM GRILLE FOR HEATER AIR INLET

Sever holders (1) on trim grille (2) until flush.

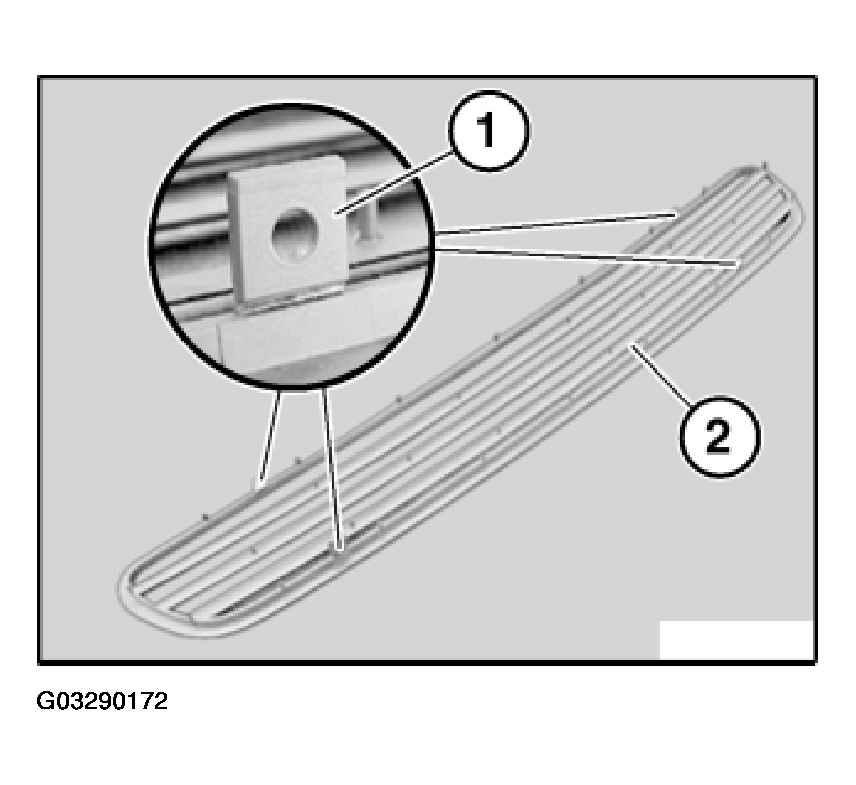

Fig 1: Identifying Holders On Trim Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Place lower section (2) on trim grille (1).

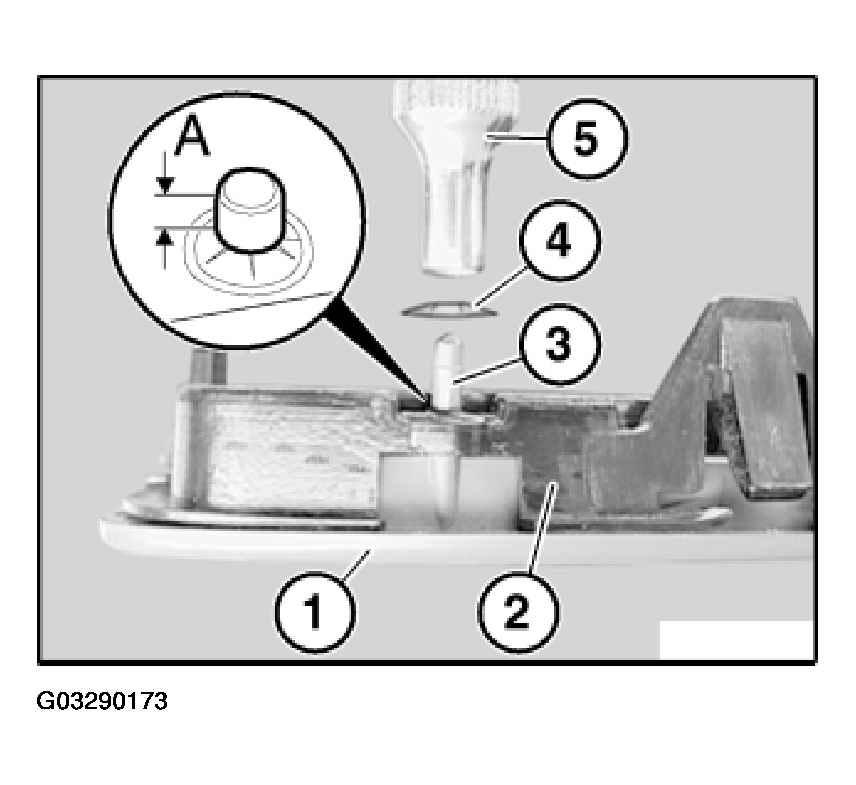

Fig 2: Pressing On Lock Washers With TORX E4 Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Press on lock washers (4) with a TORX E4 socket (5).

Shorten all plastic pins (3) down to measurement (A).

A= 2 mm

IMPORTANT: Measurement (A) for centre plastic pin in direction of travel at front must only be 1 mm (risk of damage).
