51 13 081 Removing and installing trim grille for heater air inlet
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 341

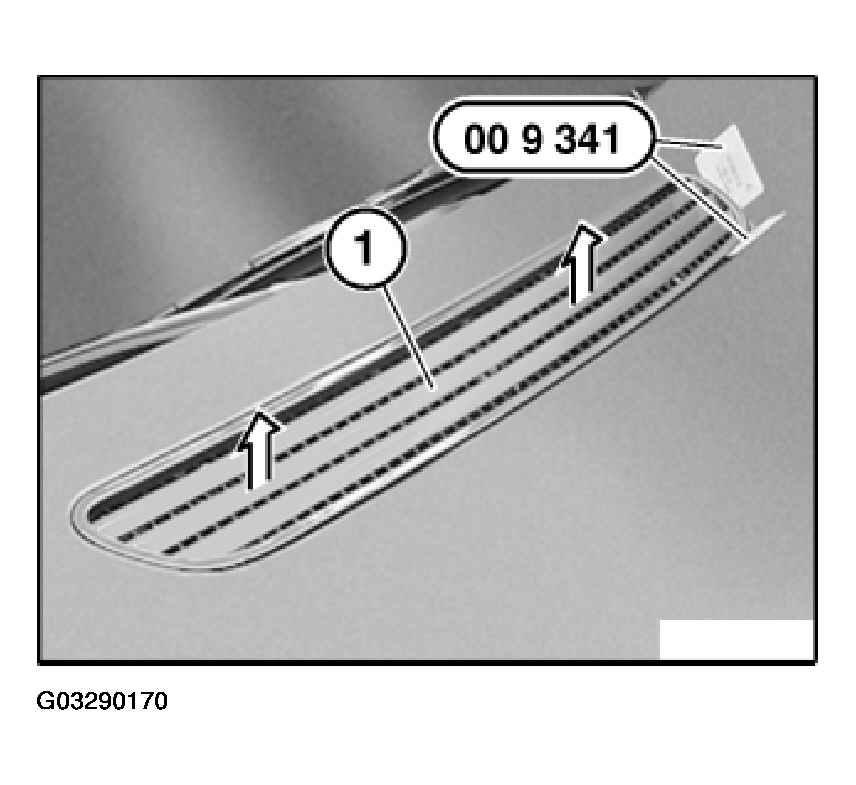

Unlock trim grille (1) with special tools 00 9 341 and remove.
If necessary, unlock trim grille (1) from inside.

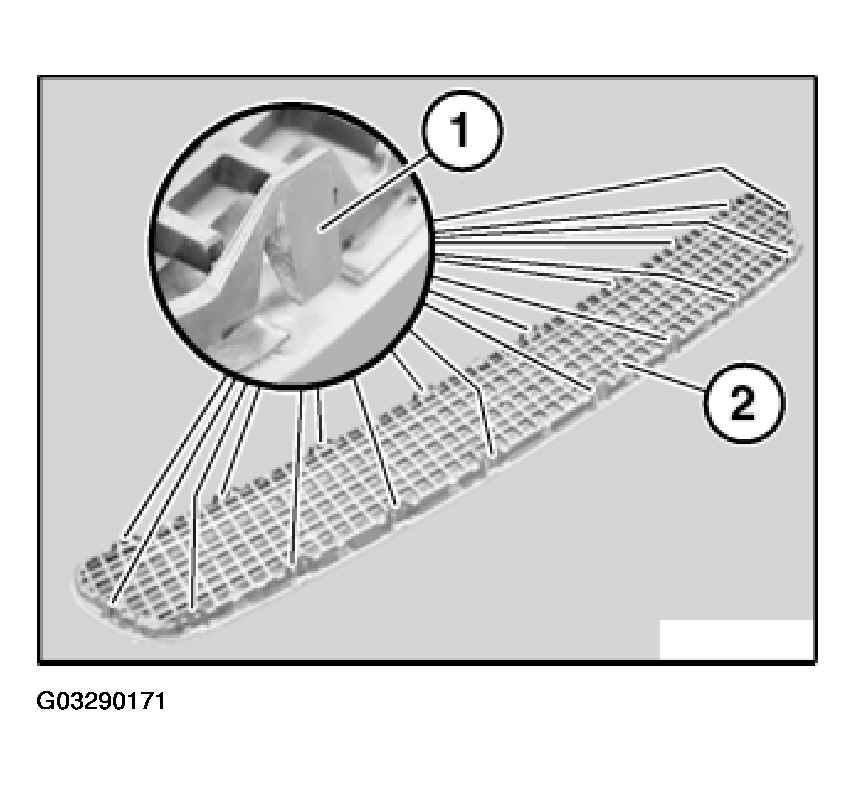

Catches (1) on trim grille (2) must not be damaged.
