51 43 251 Removing and installing / replacing trim for rear left or right roof pillar (rear)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with head AIRBAG:
Follow safety instructions for working on cars with AIRBAG systems.
Follow safety instructions for working on cars with AIRBAG systems.
IMPORTANT:
Do not use any sharp-edged tools to remove trim (risk of damage to head AIRBAG).
Version with head AIRBAG in rear compartment:

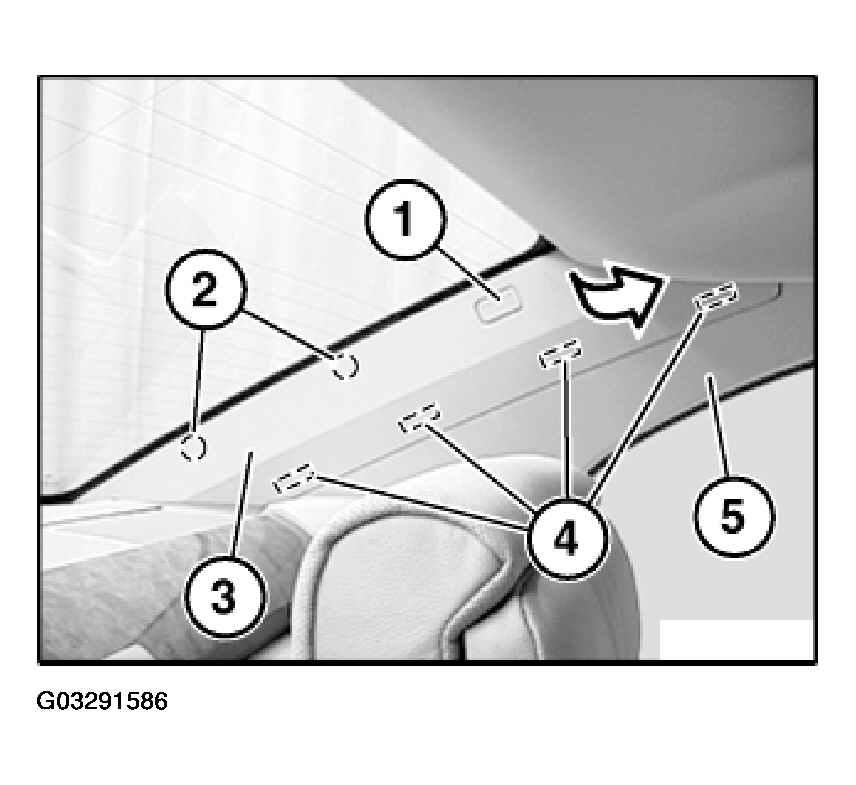

If necessary, lever out AIRBAG emblem (1) and release screw underneath.
Tightening torque 51 43 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
Release clips (2) and catches (4) from trim (3).
Pull out trim (3) towards inside at top.
Installation:

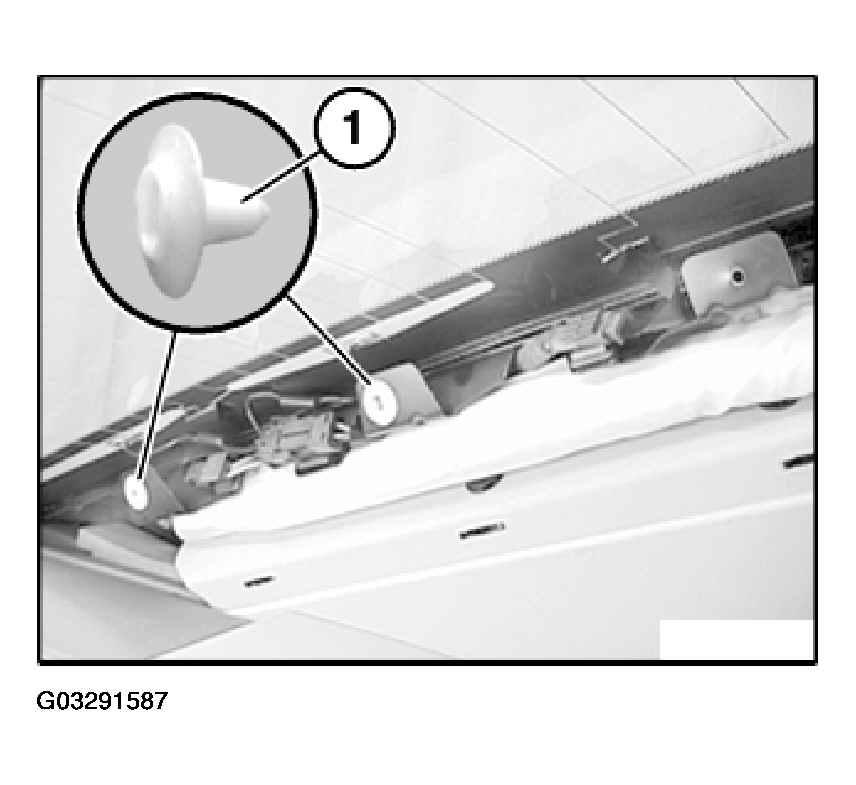

If necessary, replace defective grommets (1).
Installation:

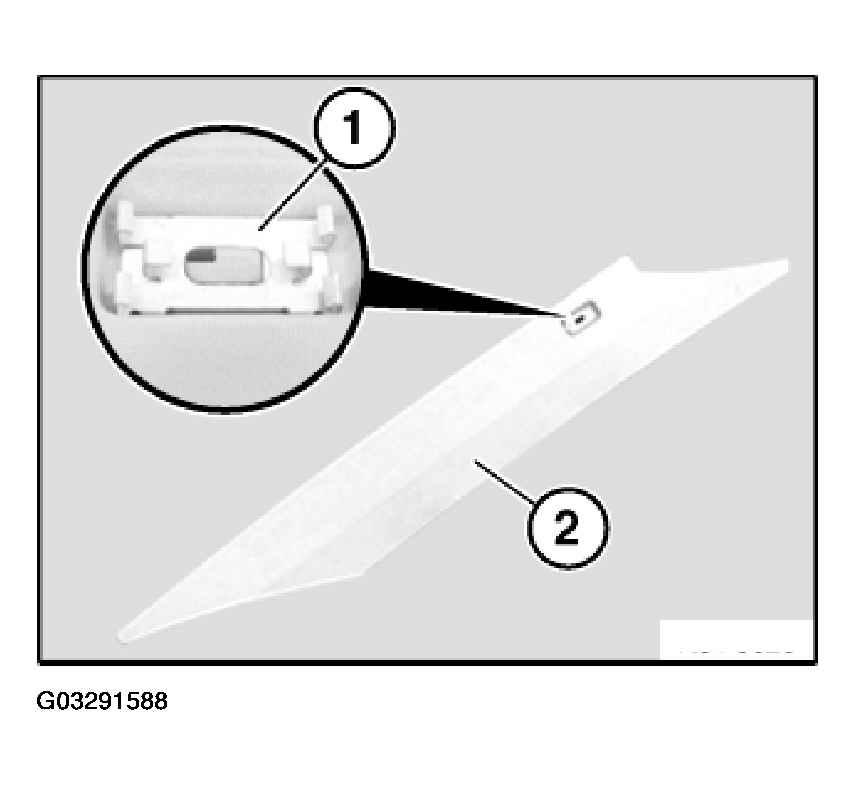

Retainer (1) on trim (2) must not be damaged or missing.
Installation:

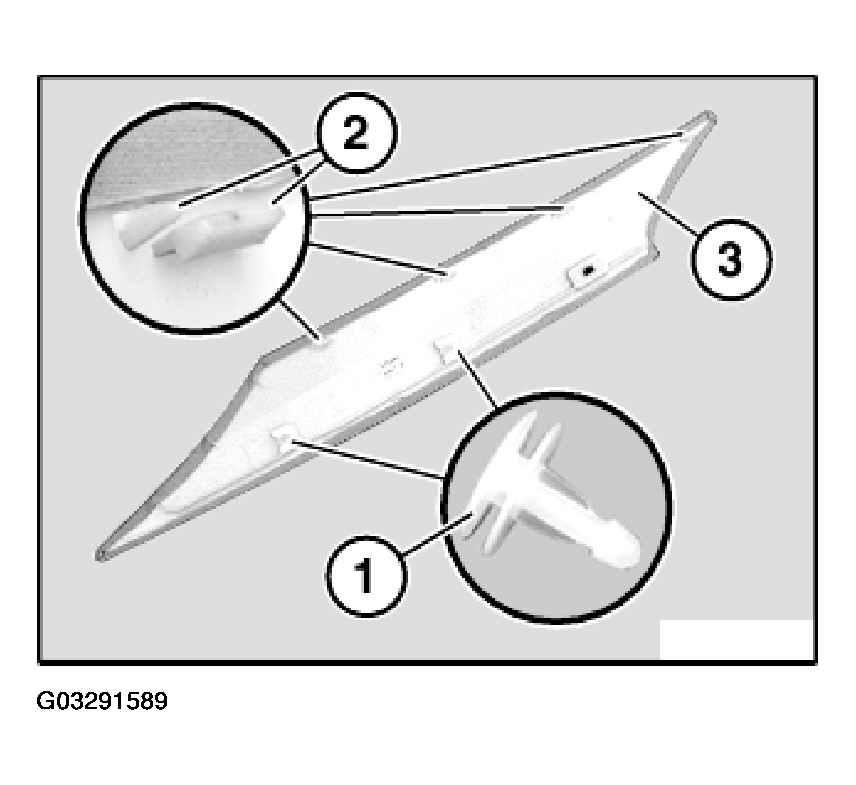

If necessary, replace faulty clips (1) of panel (3).
Catches (2) on trim (3) must not be damaged.
