51 43 148 Removing and installing or replacing trim on left or right door pillar (top)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for door pillar (bottom), refer to 51 43 150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR PILLAR (BOTTOM)
Remove decorative strip on panel for door pillar, refer to 51 43... REMOVING AND INSTALLING/REPLACING DECORATIVE STRIP ON PANEL FOR LEFT OR RIGHT DOOR PILLAR
Release seatbelt screw on seat belt at bottom

Release expander rivets (1) on panel (2).

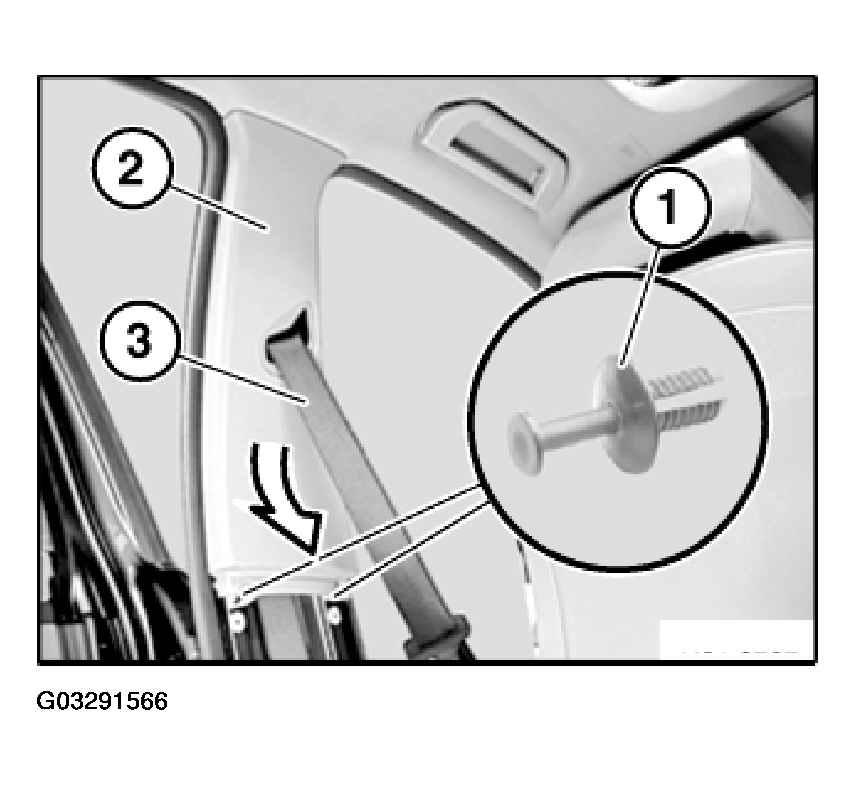

Fig 1: Releasing Expander Rivets On Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Detach panel (2) in direction of arrow.

Feed out seatbelt strap (3).

Installation:

Following parts of trim (4) must not be damaged or missing:

Guides
Belt finisher strip
Fixtures for expansion rivets

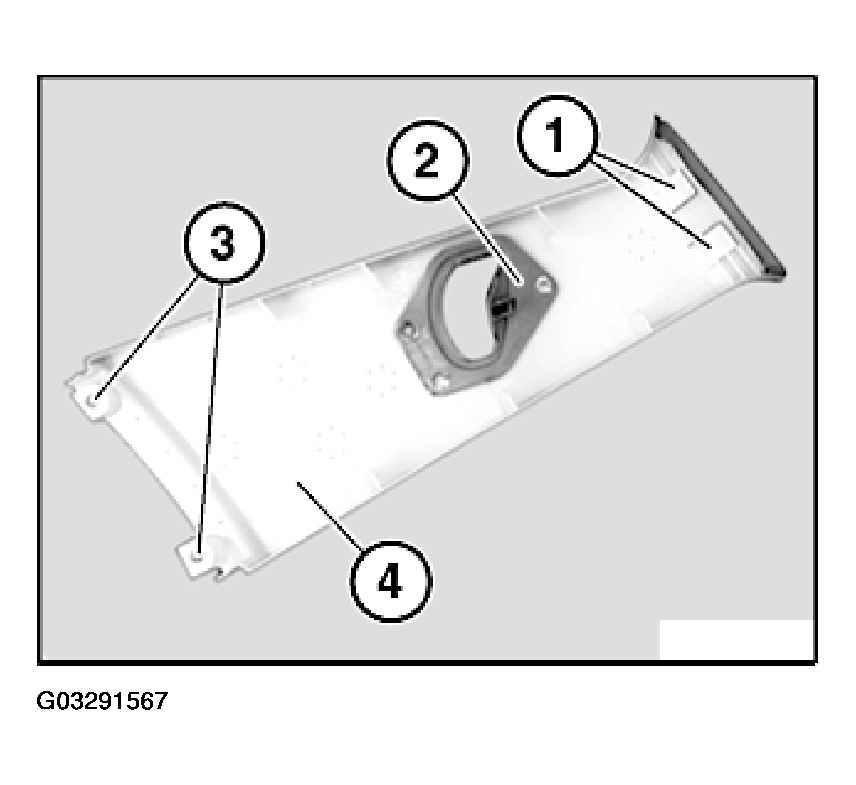

Fig 2: Installing Trim
Courtesy of BMW OF NORTH AMERICA, INC.
