51 43 070 Removing and installing / replacing side trim panel, footwell, on A-pillar, left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY
Remove entrance cover strip, front (inside) left, refer to 51 47 000 REMOVING AND INSTALLING / REPLACING ENTRANCE COVER STRIP, FRONT (INSIDE) LEFT OR RIGHT

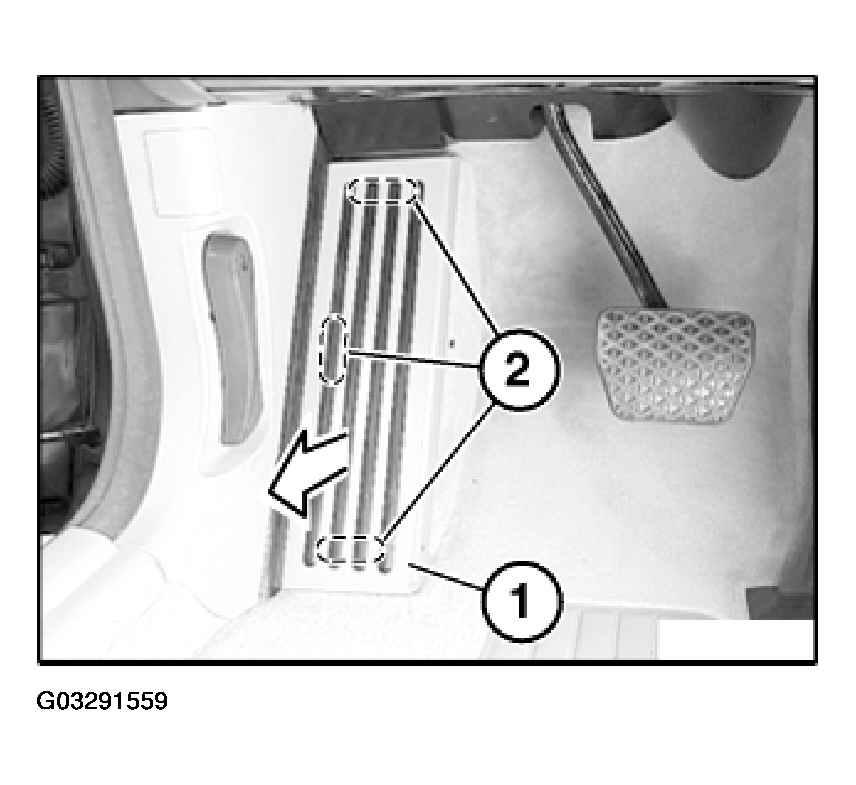

Detach footrest (1) in direction of arrow from Velcro-type fasteners (2) and remove.

Fig 1: Detaching Footrest

G03291559

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

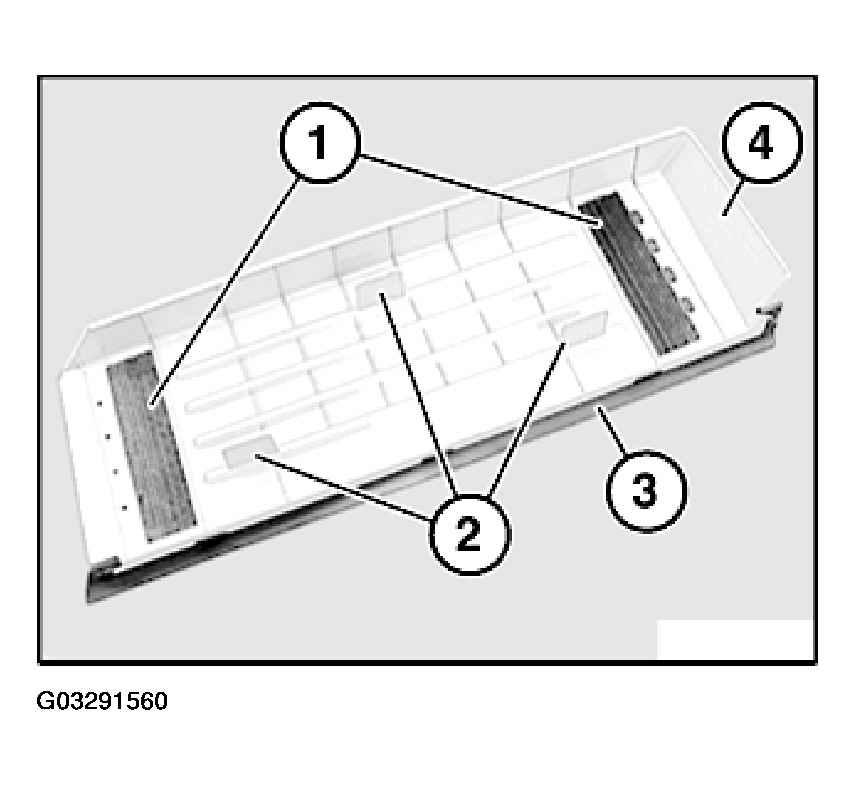

Following parts of footrest (4) must not be damaged:

Velcro-type fasteners
Guides
Seal

Fig 2: Installing Footrest

G03291560

Courtesy of BMW OF NORTH AMERICA, INC.

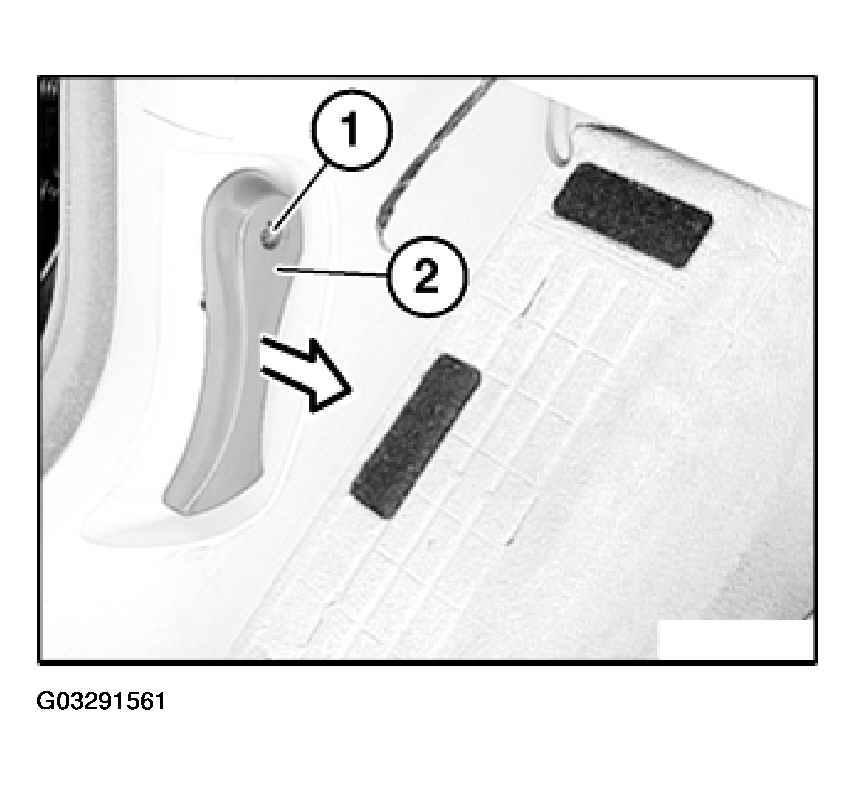

Release screw (1) and remove release lever (2).

Fig 3: Removing Release Lever

G03291561

Courtesy of BMW OF NORTH AMERICA, INC.

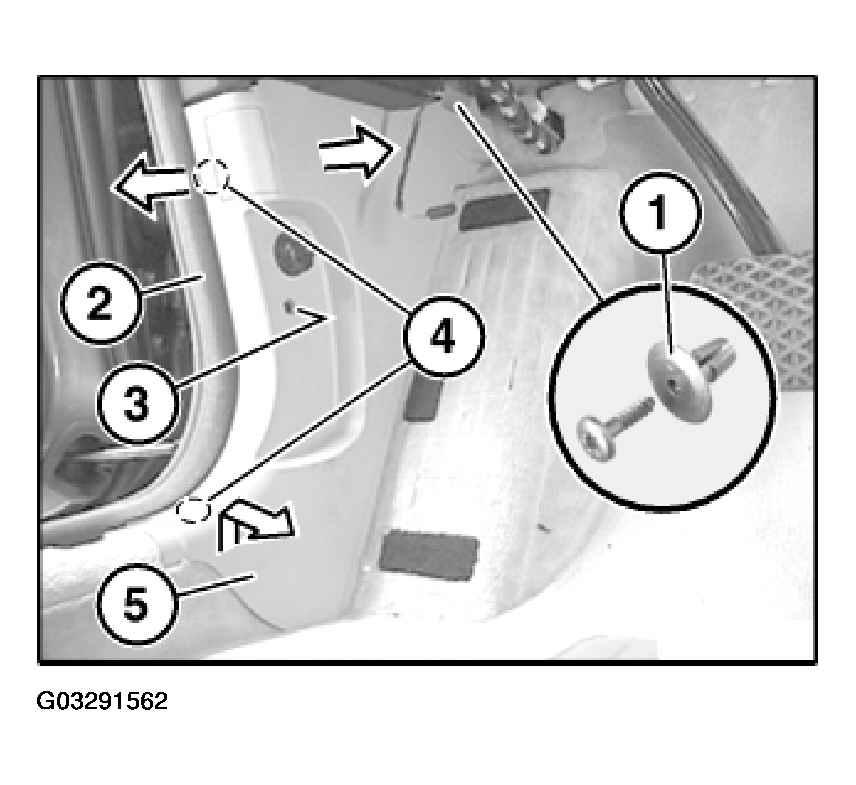

Release screw (1) and remove expansion rivet.

Fig 4: Removing Expansion Rivet

G03291562

Courtesy of BMW OF NORTH AMERICA, INC.

Detach mucket (2) in area of side trim (5).

Release screw (3).

Unclip side trim (5) from clips (4) and remove.

Installation:

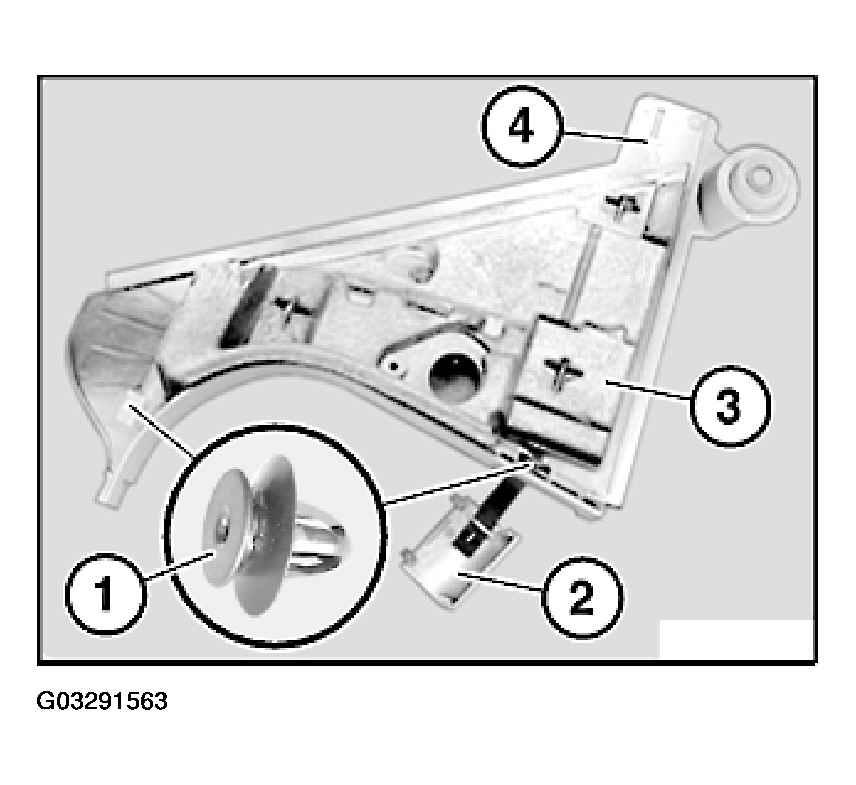

Following parts of side trim panel (4) must not be damaged or missing:

Clips
Cover cap with retaining strap
Insulating mat

Fig 5: Installing Side Trim Panel
Courtesy of BMW OF NORTH AMERICA, INC.
