51 34 160 Removing and installing/replacing cover on door window frame (rear door) at inside left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear door trim panel, refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL

Version with roller sun blind only:

Remove adapter for roller sun blind, refer to 51 16... REMOVING AND INSTALLING / REPLACING ADAPTER FOR ROLLER SUN BLIND ON LEFT OR RIGHT REAR DOOR

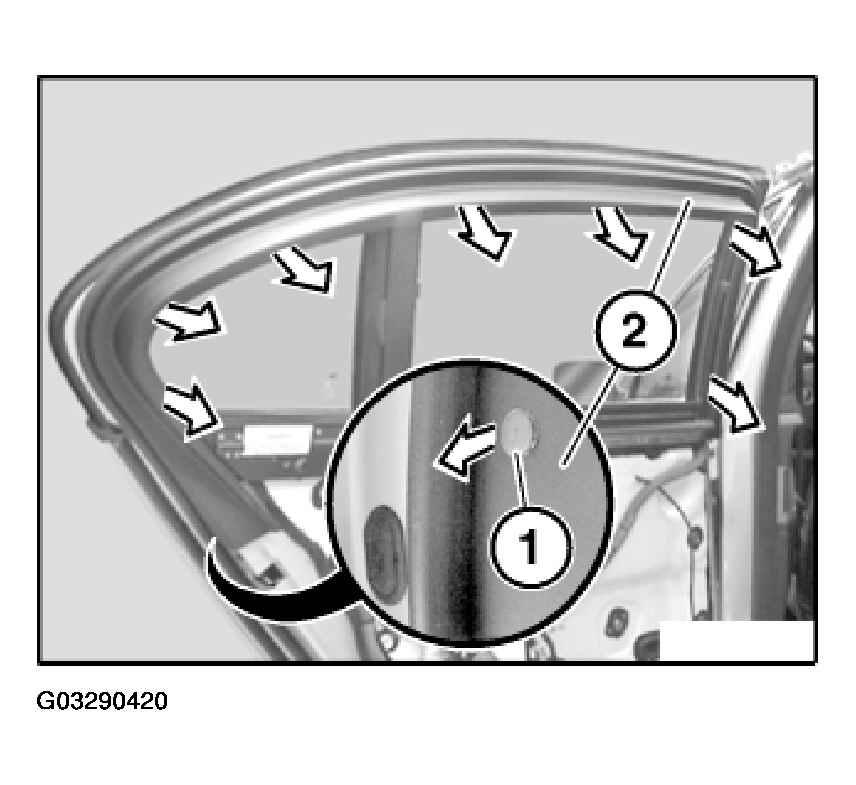

Remove rivet (1) from cover (2).

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover (2) in direction of arrow from rear door.

Installation:

Make sure cover (2) is correctly seated on door seal.
