51 42 300 Removing and installing/replacing chest strip (chrome strip) on left or right rear door (without roller sun blind)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

Installation:

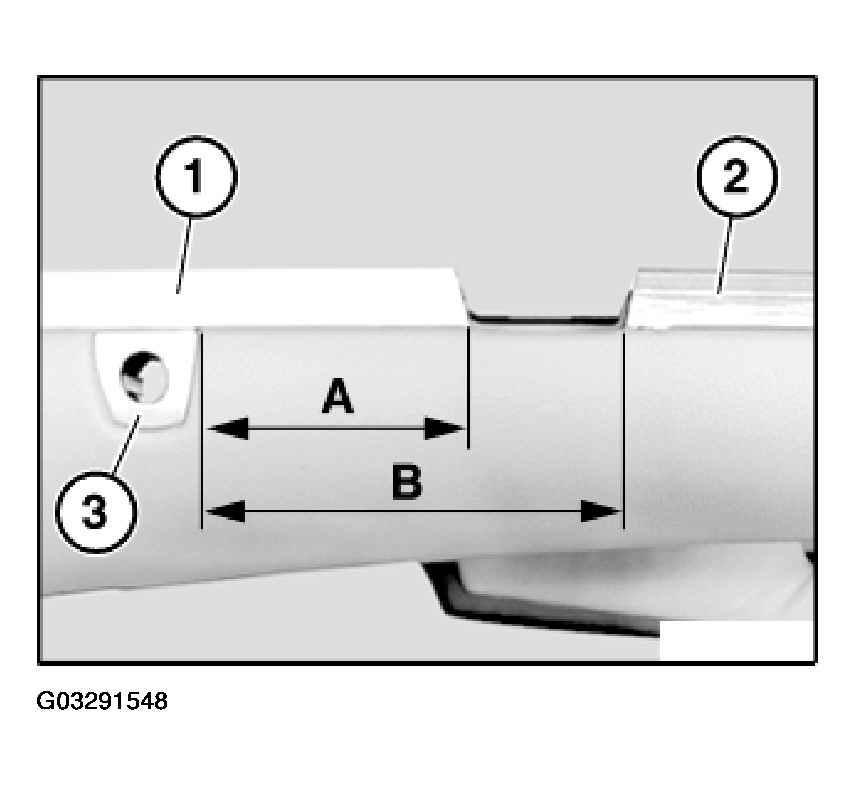

Observe distance of chest strip at front (1) and rear (2) to trim (3) of locking rod:

A= 70 mm

B = 110mm

Fig 1: Installing Chest Strip

Courtesy of BMW OF NORTH AMERICA, INC.

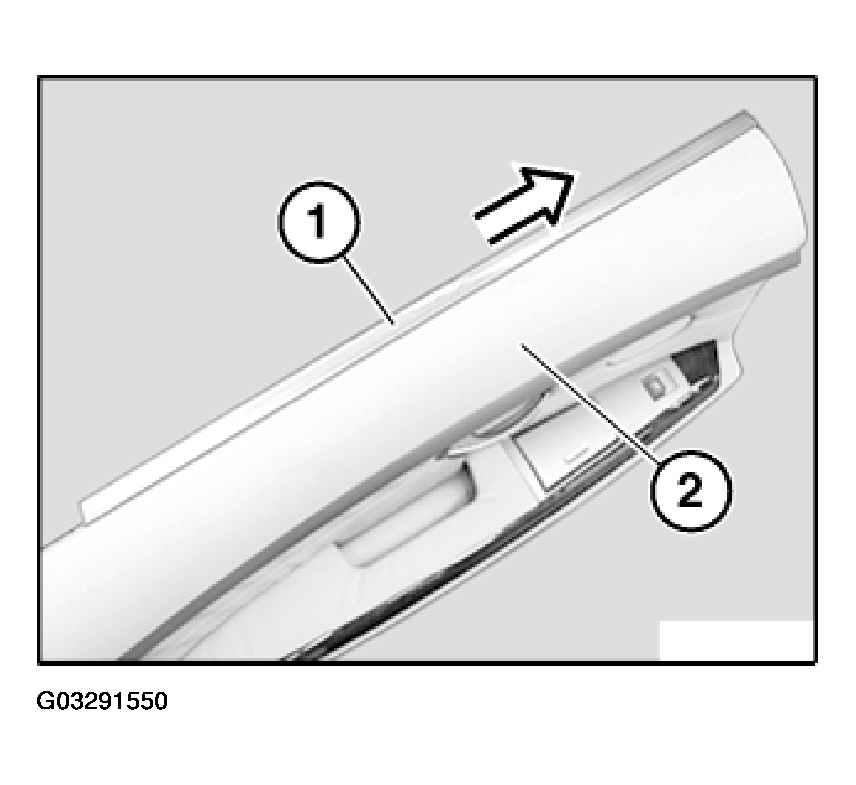

Pull rear chest strip (1) in direction of arrow off door trim (2).

Fig 2: Pulling Rear Chest Strip Off Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

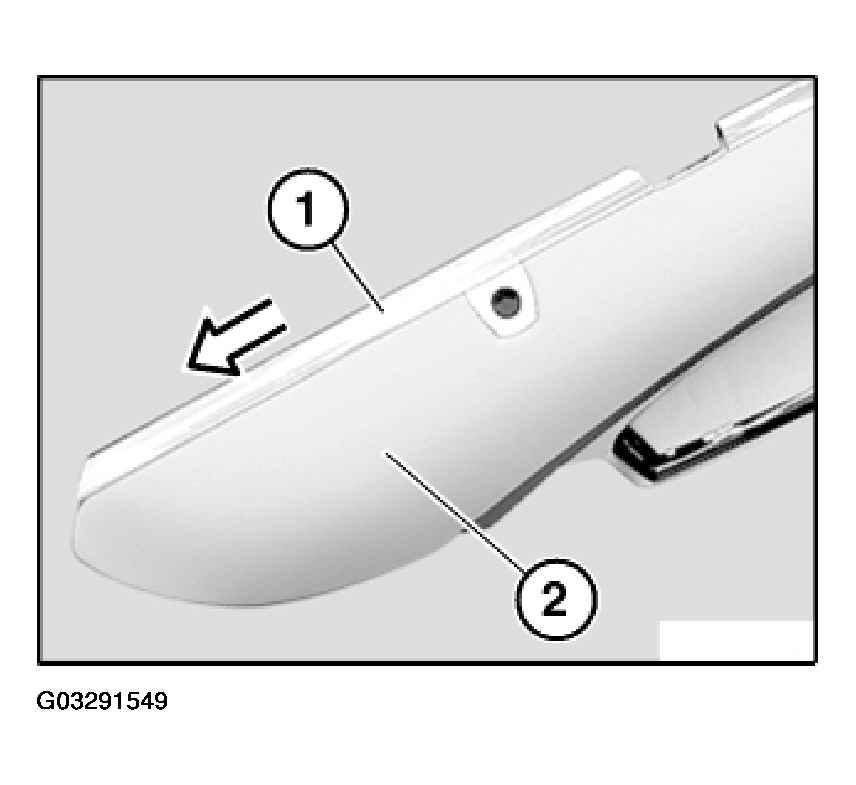

Pull front chest strip (1) in direction of arrow off door trim (2).

Fig 3: Pulling Front Chest Strip Off Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.
