51 42 065 Removing and installing/replacing wooden strip on left or right door trim (rear)

Necessary preliminary tasks:

• Remove upper section on armrest (rear). Refer to 51 42 070 REMOVING AND INSTALLING/REPLACING UPPER SECTION ON ARMREST (REAR) .

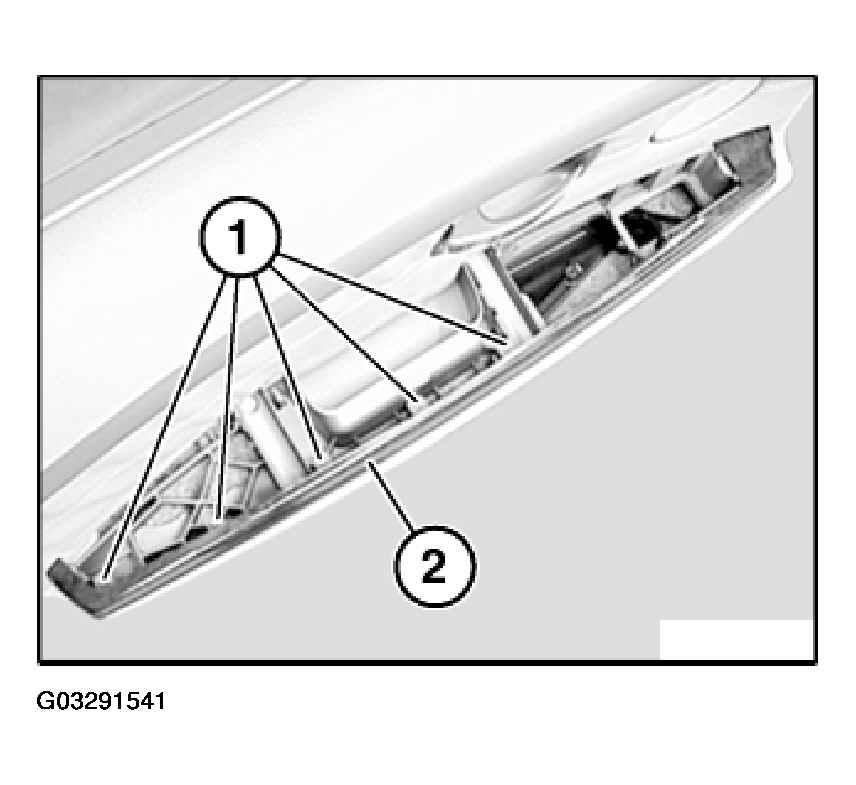

Release screws (1) on wooden strip (2).

Fig 1: Releasing Screws On Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 51 42 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

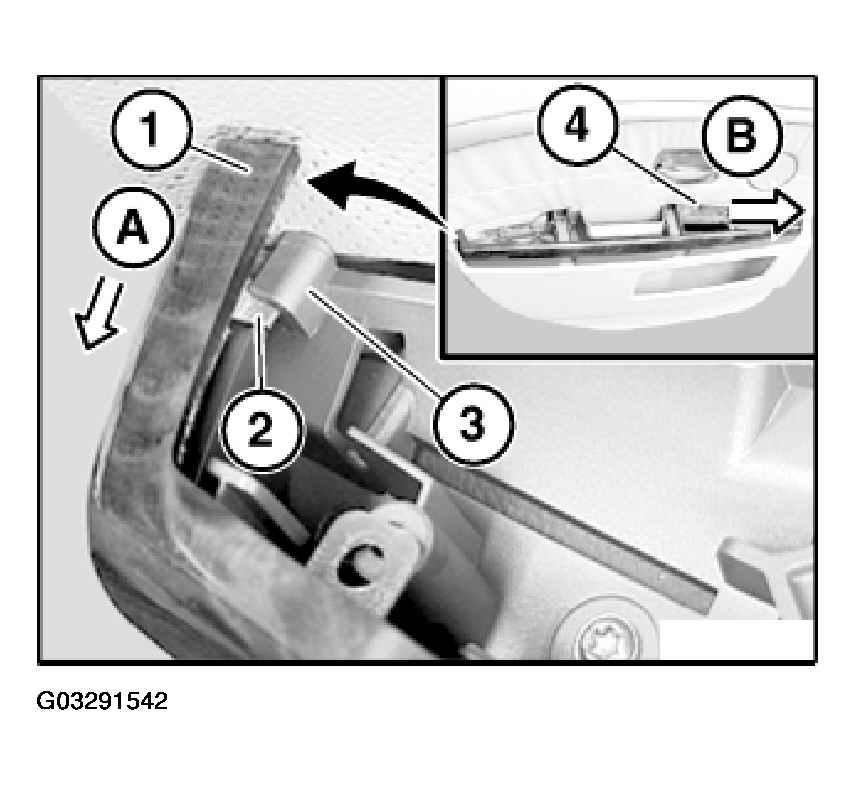

Lever wooden strip (1) out of door trim (4) as follows:

Fig 2: Removing Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

1. At rear lever guide (2) in direction of arrow out of mounting (3)
2. At front pull off in direction of arrow from door trim (4)

Installation:

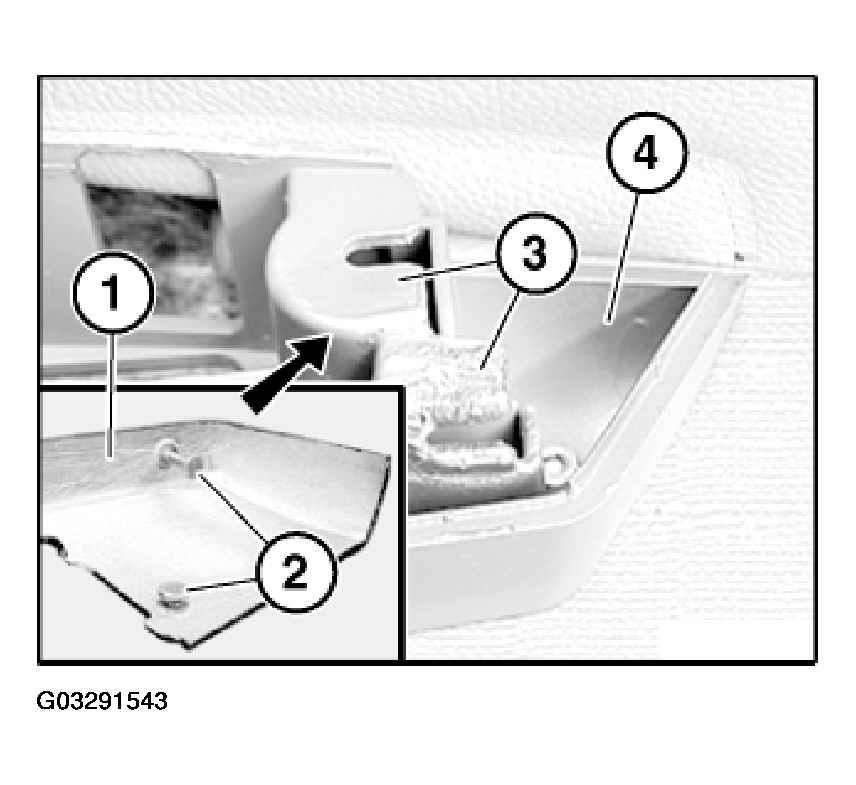

Insert guides (2) of wooden strip (1) correctly into mountings (3) of door trim (4).

Fig 3: Inserting Guides Of Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

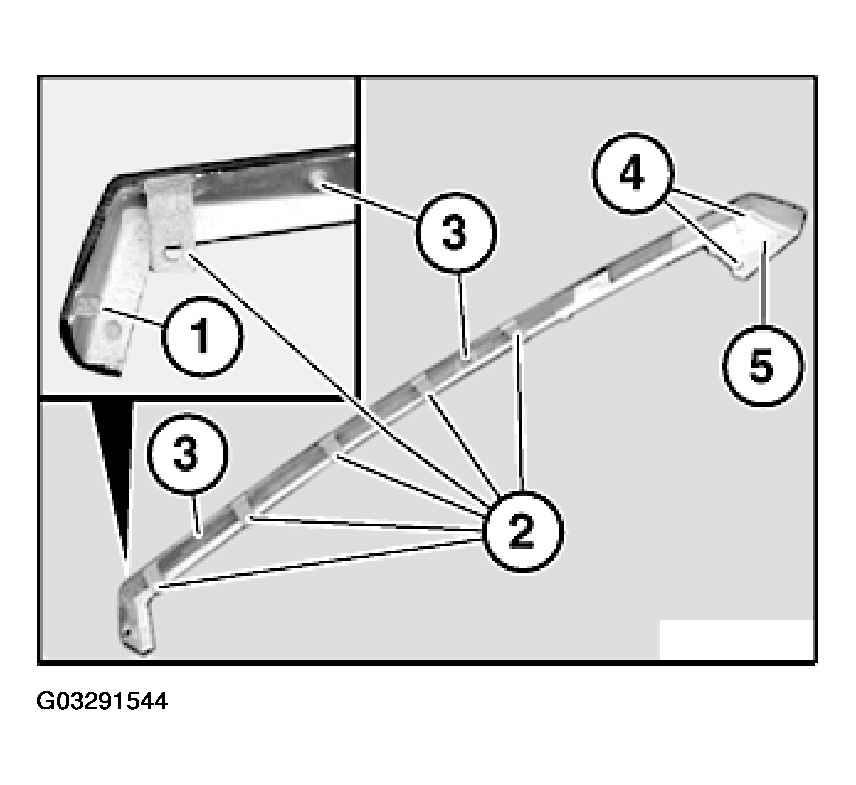

Following parts of wooden strip (5) must not be damaged:

1. Guide (rear)
2. Bracket
3. Spacer
4. Guides (front)
   Fig 4: Installing Wooden Strip

   Courtesy of BMW OF NORTH AMERICA, INC.
