51 42 070 Removing and installing/replacing upper section on armrest (rear)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rocker switch for window operation (rear). Refer to 61 31 116 REPLACING ROCKER SWITCH FOR SIDE WINDOW OPERATION (REAR) .

NOTE: Place a clean cleaning cloth between screwdriver and bore hole (risk of damage).

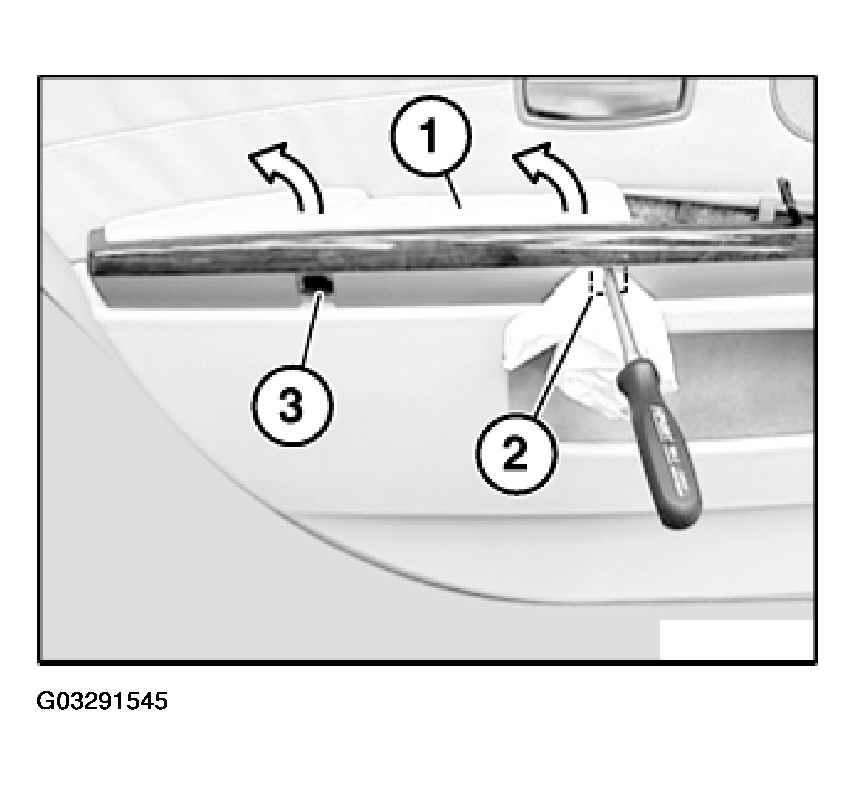

Unlock upper section (1) over bore holes at front (2) and rear (3) in direction of arrow.

Fig 1: Unlocking Upper Section Over Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

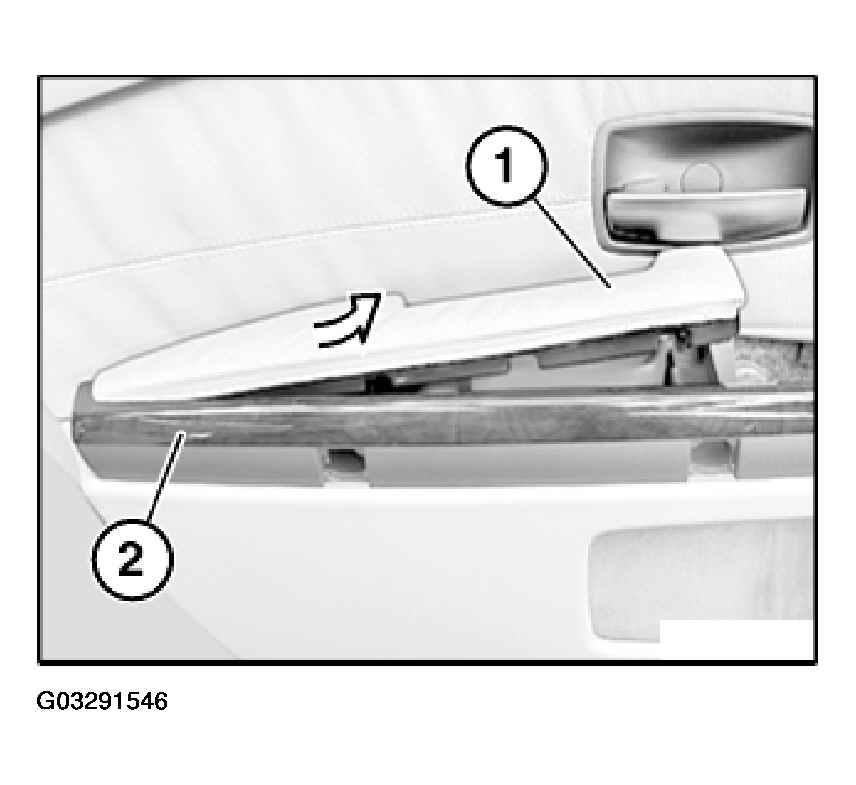

Pull upper section (1) in direction of arrow off armrest (2).

Fig 2: Pulling Upper Section Off Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

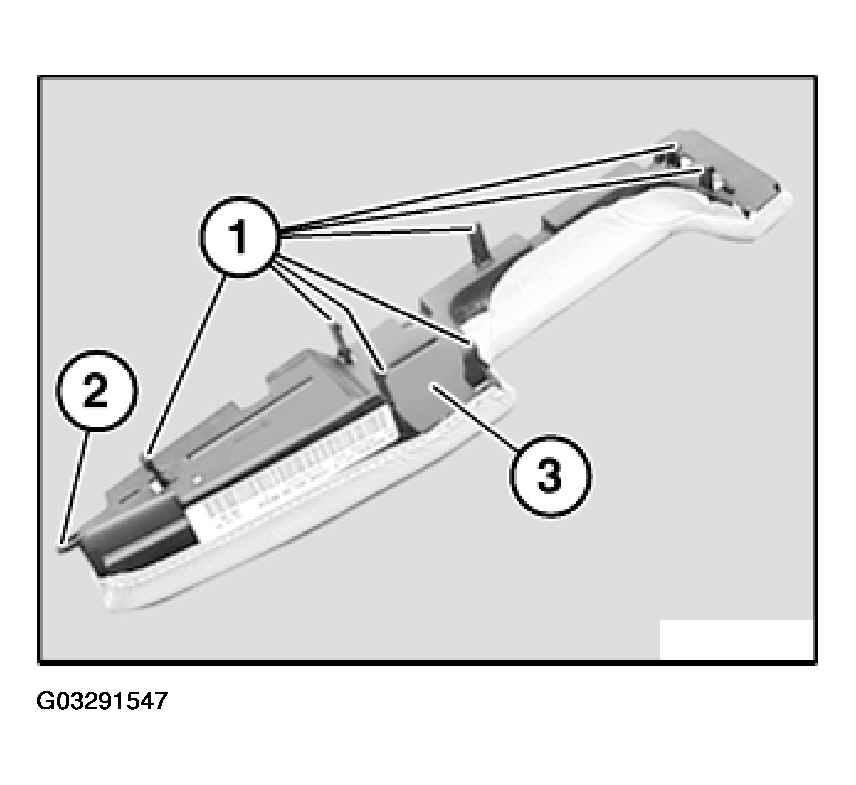

Catches (1) and guide (2) of upper section (3) must not be damaged.

Fig 3: Installing Catches and guide

Courtesy of BMW OF NORTH AMERICA, INC.
