51 42 018 Replacing speaker frame on rear left or right door trim panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

Detach plastic welded joints (1) and remove speaker frame (2).

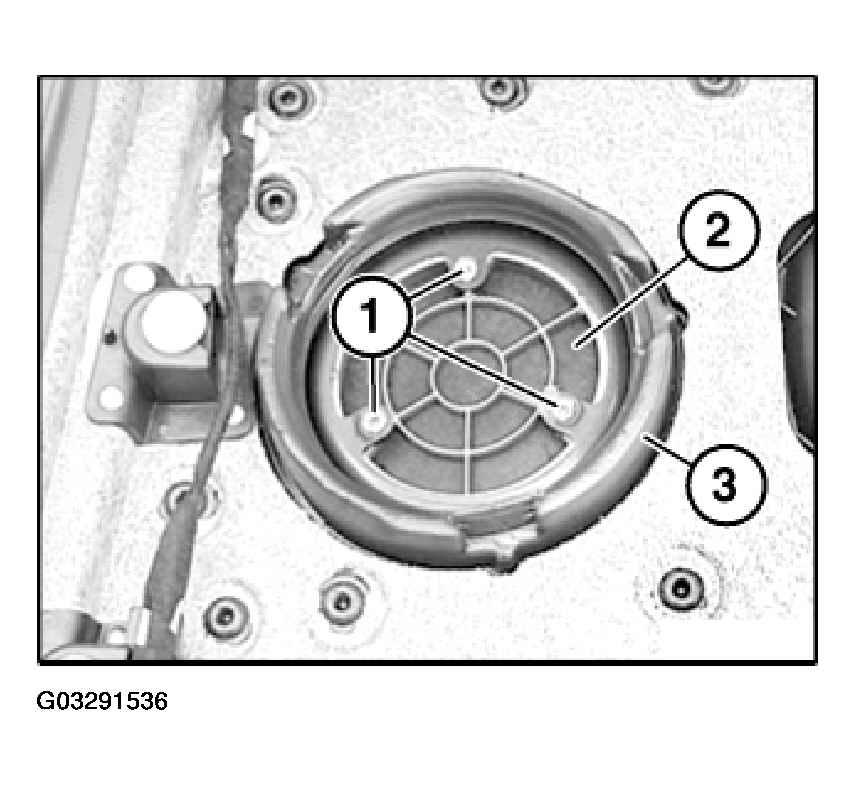

Fig 1: Removing Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Foam ring (3) must not be damaged.

NOTE: Foam ring (3) is only fitted with Top hi-fi system. Trim is closed without Top hi-fi system.

Installation:

Guide (1) on plastic pin (2) is at top.

Shorten all plastic pins (2) down to measurement (A).

Install speaker frame (3) and mount with repair screws.

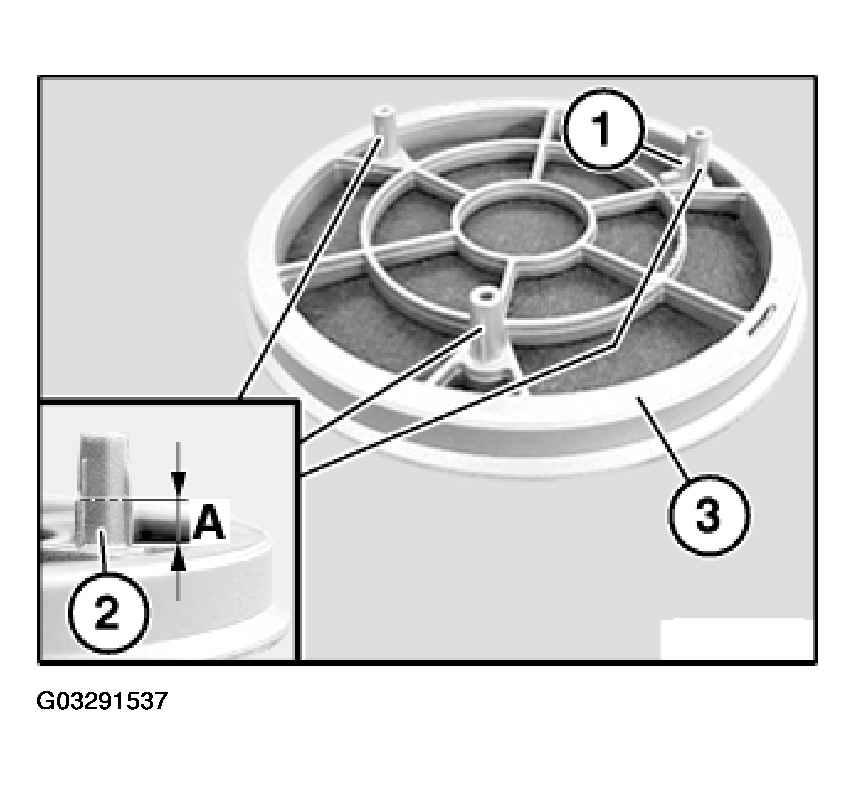

Fig 2: Installing Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 51 42 3AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

A= 4.6_-0.2ace; mm
